Remove/Install Roll Bar - AR91.50-P-2355LWR

Model 205.4

Model 238.4

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury  when performing check and repair work in area of roll bar	Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects.	AS91.00-Z-0003-01LCA
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install

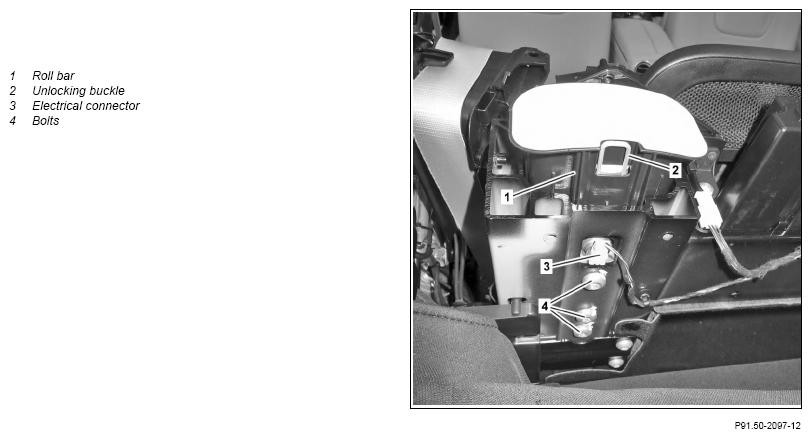

1	Perform emergency release of the roll bar (1)	If roll bars (1) deployed. If the roll bars (1) are deployed, they must be released with an emergency release. This allows the soft top to be opened and closed. The unlocking buckle (2) must be pulled out up to the end stop (approx. 25 mm) upwards out of the roll bar (1). The roll bar (1) can then be compressed against spring force. It does not latch into place.
2	Remove paneling from the roll bars (1)	If the roll bars (1) are deployed, the paneling must be replaced.	AR68.30-P-1380LWR
3	Disconnect battery ground line	Model 205.4	AR54.10-P-0003LW
		Model 238.4	AR54.10-P-0003LWO
4	Release and disconnect electrical connector (3) on the roll bar (1)	Make sure that the electrical connector (3) engages properly on the roll bar (1). Otherwise, the function of the roll bar (1) is not ensured.
5	Remove bolts (4)	Cover the soft top with a clean dry cloth in the area of the screws/bolts (4).
		Bolt, roll bar unit to body	*BA91.50-P-1001-01B
6	Pull the roll bar (1) out upwards and remove
7	Install in the reverse order
