Remove/Install Lock For Rear Folding Backrest - AR91.12-P-1736LWR

Model 205.4

Model 238.4

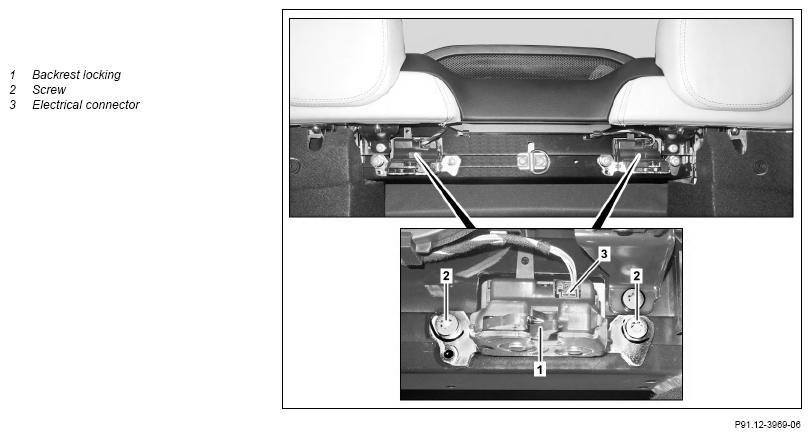

Fig 1: Rear Folding Backrest Lock Component Location - Model 205.4

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Release left and right backrest and fold forward
2	Remove trunk paneling from crossmember in vicinity of backrest locks (1)
3	Disconnect electrical connector (3) from left or right backrest lock (1)
4	Mark installation position of backrest lock (1) on crossmember
5	Remove screws/bolts (2) of left and right backrest lock (1)	Bolt, backrest lock to upper cross member	*BA91.12-P-1002-03M
6	Unclip left and right backrest lock (1) from catch hook and remove
7	Install in the reverse order

REAR SEATS

Number	Designation		Model 205.4	Model 238.4
BA91.12-P-1002-03M	Bolt, backrest lock to upper cross member	Nm	20	20
