Remove/Install Front Seat Head Restraint Motor - AR91.29-P-1432LW

Model 205, 253

with code 275 (Driver's seat, electrically adjustable with memory function)

except code 555 (AMG-Performance Seat)

Model 205.0/2/3/4, 253

with code 241 (Memory switch for electrically adjustable front passenger seat, left)

except code 555 (AMG-Performance Seat)

Model 205.0/2/3/4, 253

with code 242 (Front passenger seat, electrically adjustable with memory function)

except code 555 (AMG-Performance Seat)

Model 213

with code 275 (Memory Package (driver's seat, steering column and mirror))

except code 555 (AMG-Performance Seat)

Model 238

with code 275 (Memory Package (driver's seat, steering column and mirror))

Model 293

with code 241 (Memory switch for electrically adjustable front passenger seat, left)

Model 293

with code 242 (Front passenger seat, electrically adjustable with memory function)

Model 293

with code 275 (Driver's seat, electrically adjustable with memory function)

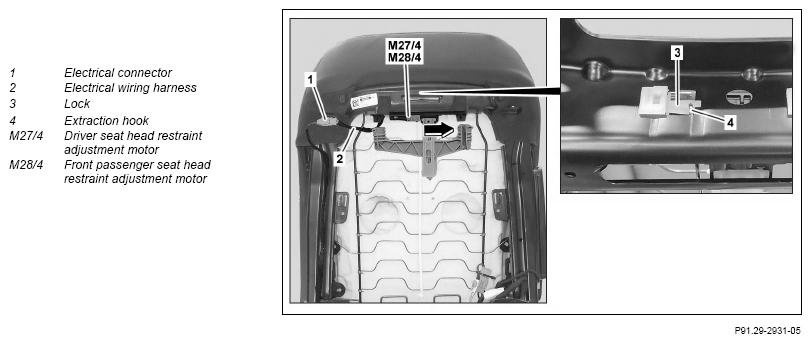

Shown on model 205.0

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Remove/install
1	Remove head restraint from front seat.		AR91.16-P-0040LW
2	Disconnect electrical connector (1).
3	Expose the electrical wiring harness (2).
4	Release lock (3) using extraction hook (4), slide driver's seat head restraint adjustment seat adjustment motor (M27/4) or front passenger seat head restraint adjustment seat adjustment motor (M28/4) in direction of arrow and remove.	Extraction hook	Fig 2
5	Install in the reverse order
