Remove, Replace And Install Rear Center Seat Belt - AR91.40-P-0683LW
Model 205.0/1, 213.0
except code 287 (Through-loading feature)
Model 213.1

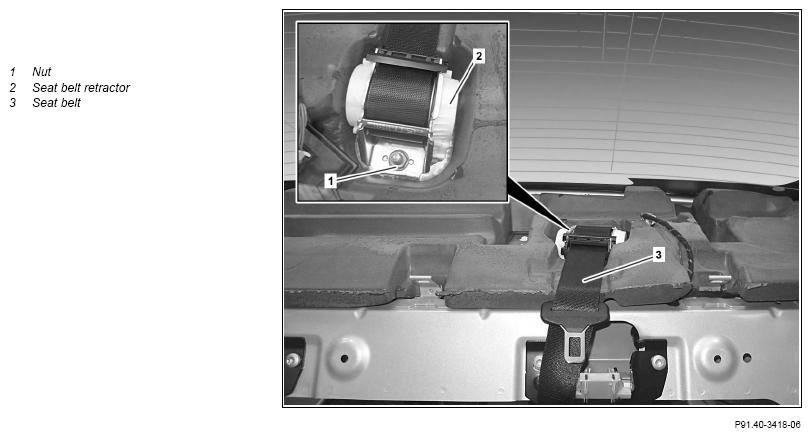

Shown on model 205.0
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Remove/install | |||
| 1 | Remove rear shelf | Model 213.1 | AR68.30-P-4581LWV |
| Model 205.0/1, 213.0 except code 287 (Through-loading feature) |
AR68.30-P-4581LW | ||
| 2 | Unscrew nut (1) | *BA91.40-P-1010-01U | |
| 3 | Remove seat belt retractor (2) with seat belt (3) | ||
| 4 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.0 | Model 205.1 | |
|---|---|---|---|---|
| BA91.40-P-1010-01U | Nut, center seat belt to rear shelf | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 213 | |
|---|---|---|---|
| BA91.40-P-1010-01U | Nut, center seat belt to rear shelf | Nm | 35 |
