Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBJ
Model 205
as of model year 2019

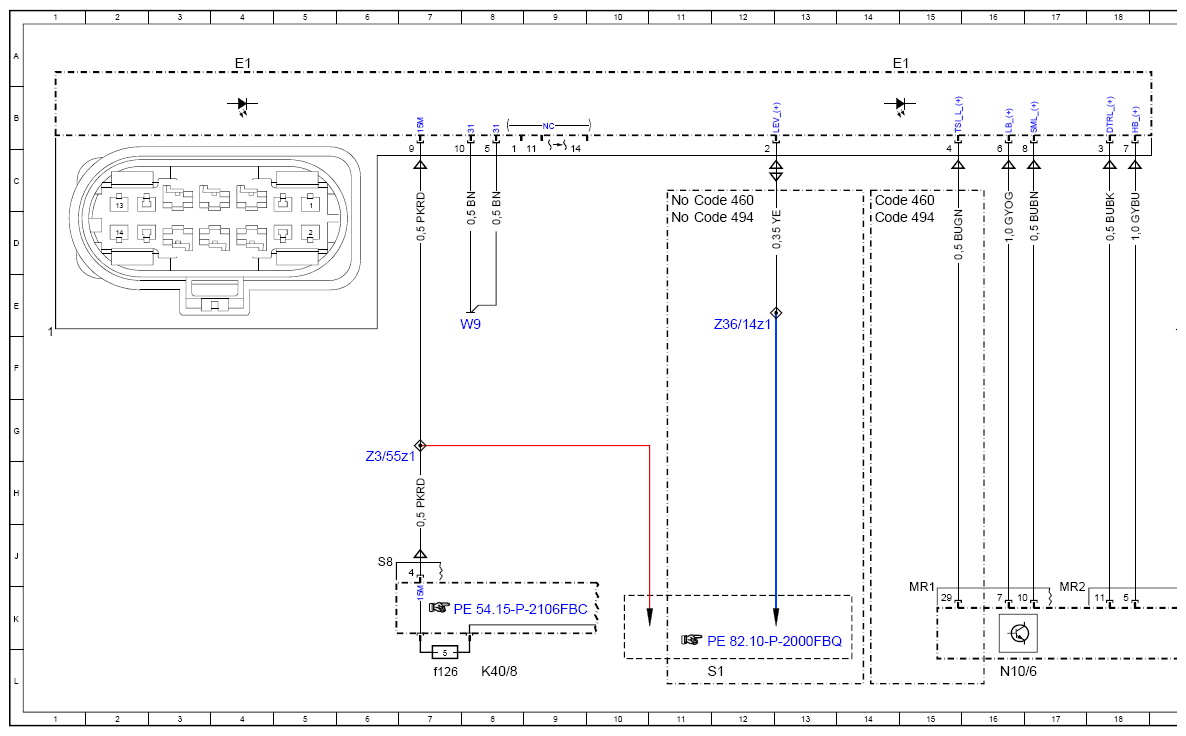

Headlamp E1, E2, halogen version
| Code: | Designation: | Position: |
|---|---|---|

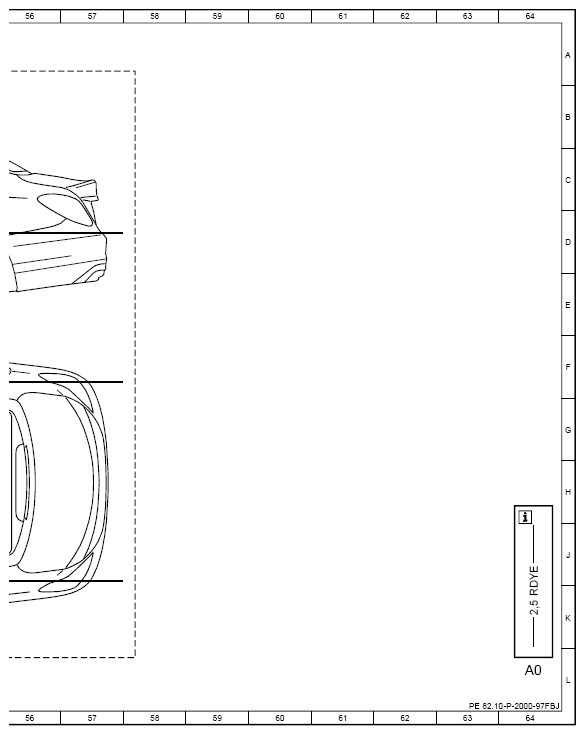

| A0 | Use of wiring diagrams | 64L |
| Code 460 | Canada version | 32C |
| Code 460 | Canada version | 11C |
| Code 460 | Canada version | 14C |
| Code 460 | Canada version | 25C |
| Code 494 | USA version | 32D |
| Code 494 | USA version | 11D |
| Code 494 | USA version | 14D |
| Code 494 | USA version | 25D |

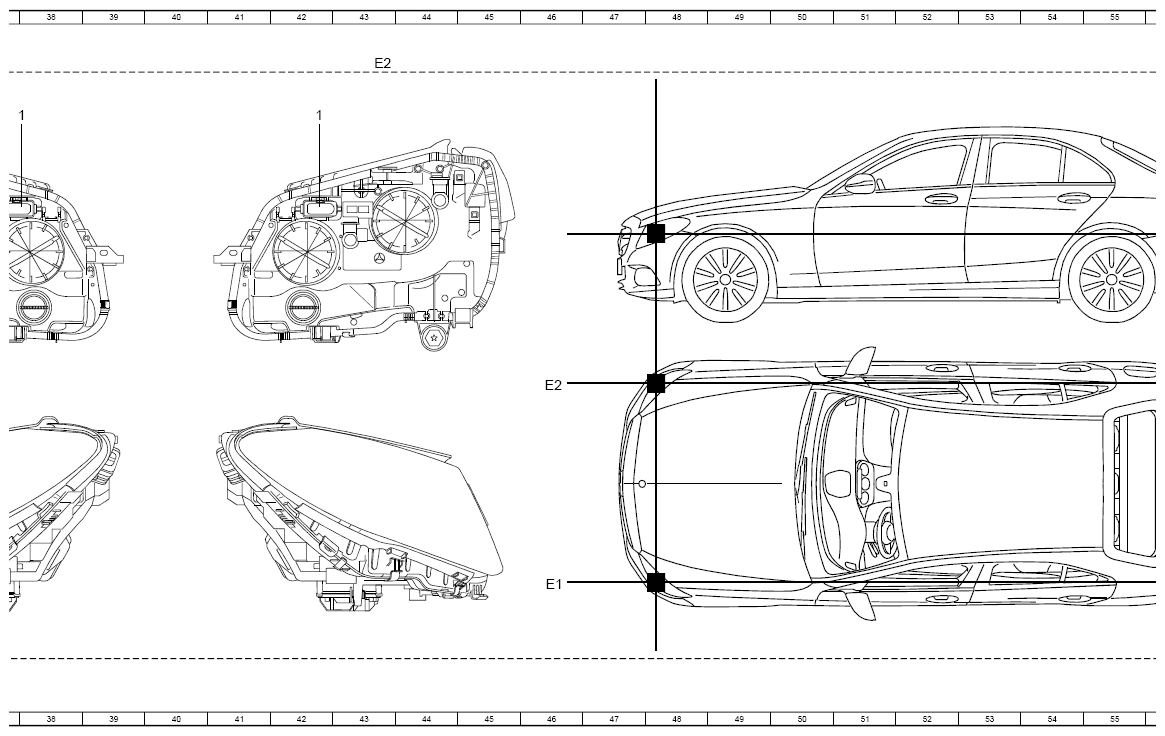

| E1 | Left front lamp unit | 4A |
| E1 | Left front lamp unit | 14A |
| E1 | Left front lamp unit | 46K |
| E1 | Left front lamp unit | 37A |

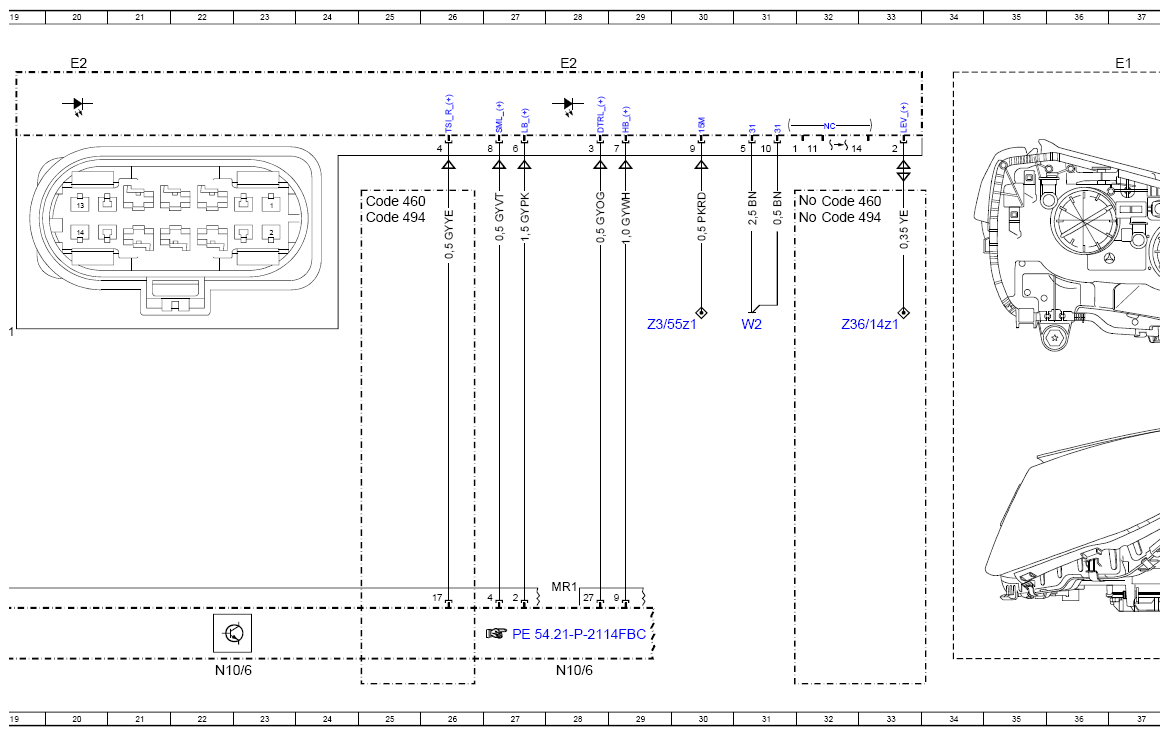

| E2 | Right front lamp unit | 20A |
| E2 | Right front lamp unit | 28A |
| E2 | Right front lamp unit | 46F |
| E2 | Right front lamp unit | 43A |
| K40/8 | Engine fuse and relay module | 8L |
| K40/8f126 | Fuse 126 | 7L |
| N10/6 | Front SAM control unit | 22L |
| N10/6 | Front SAM control unit | 16L |
| N10/6 | Front SAM control unit | 28L |
| S1 | Exterior lights switch | 12L |
| W2 | Right front ground point (at lamp unit) | 31E |
| W9 | Left front ground point (at lamp unit) | 8E |
| Z3/55z1 | Tml. 15 connector sleeve | 6G |
| Z3/55z1 | Tml. 15 connector sleeve | 30E |
| Z36/14z1 | Headlamp range adjustment signal connector sleeve | 33E |
| Z36/14z1 | Headlamp range adjustment signal connector sleeve | 12E |
