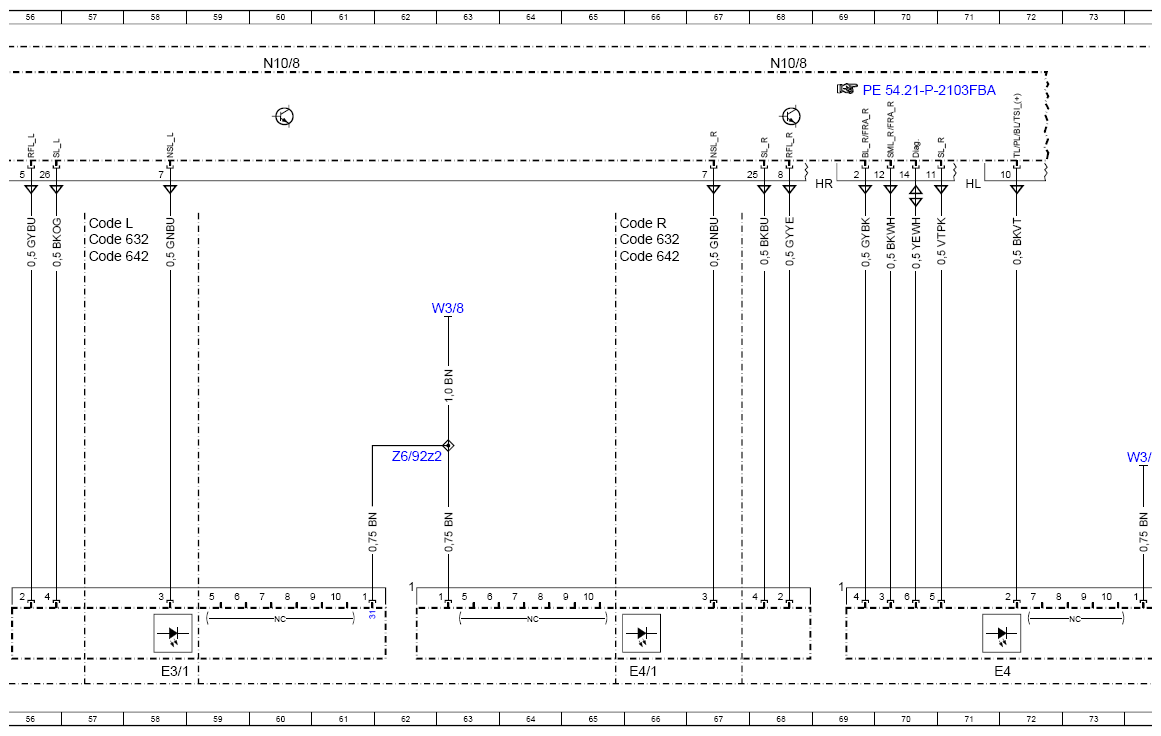

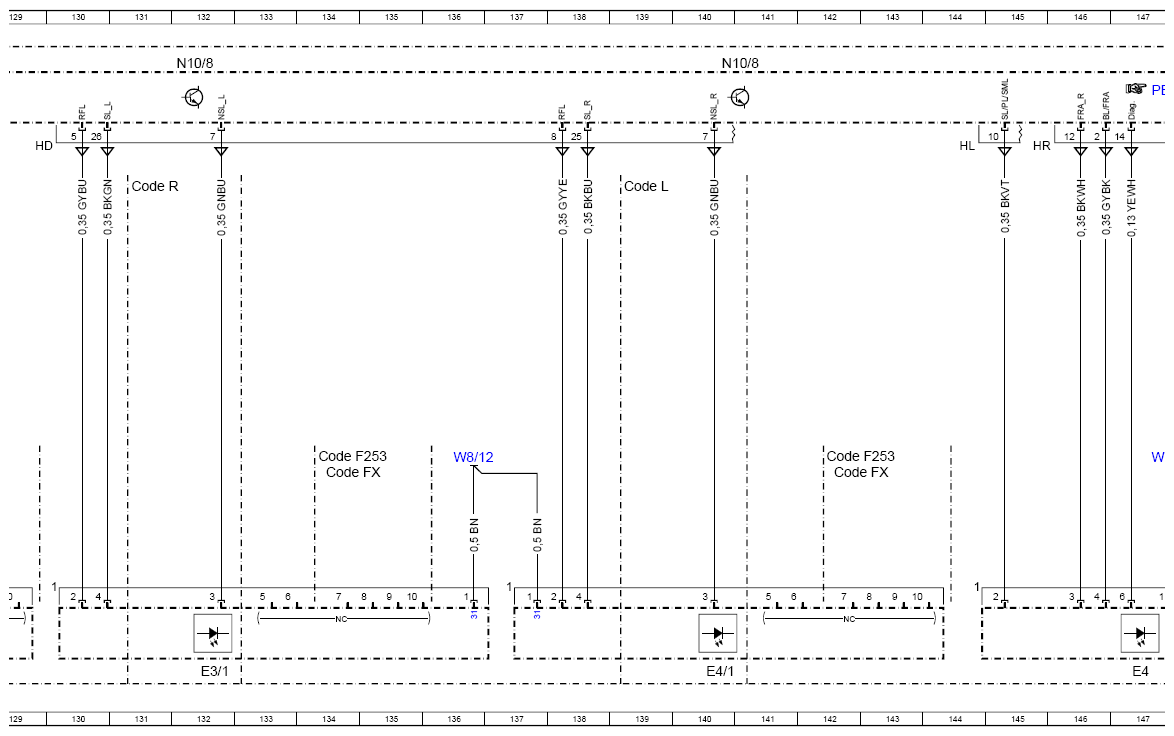

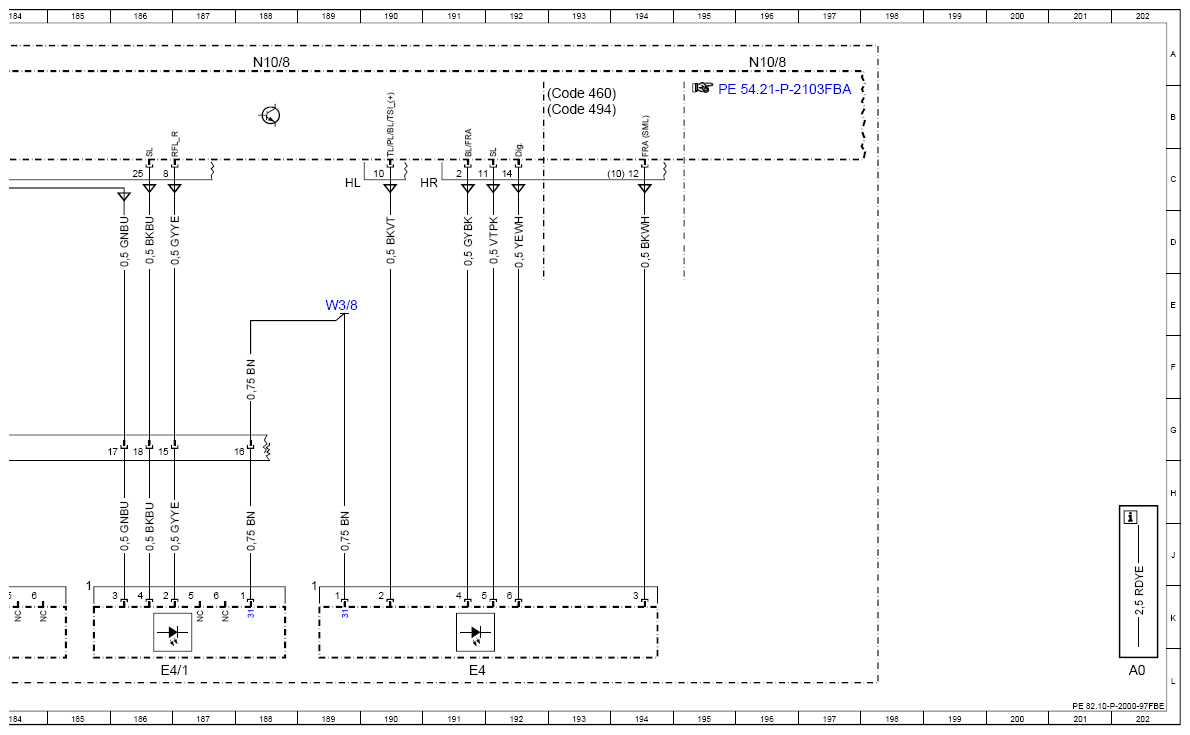

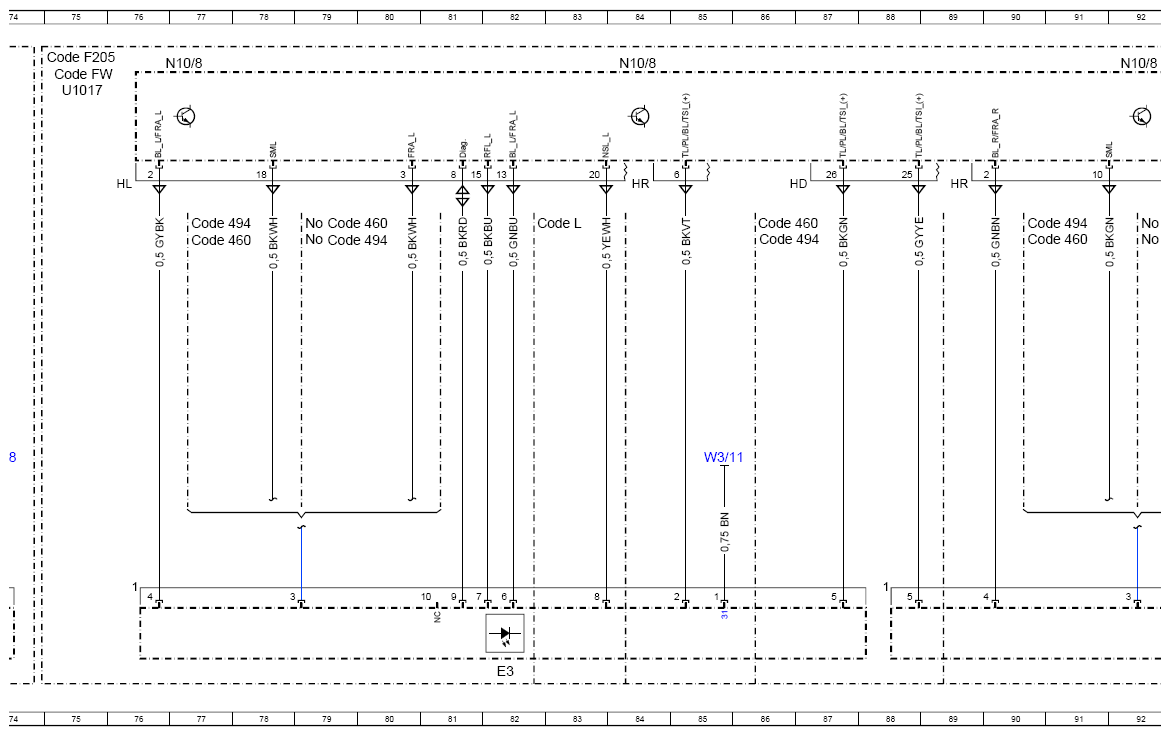

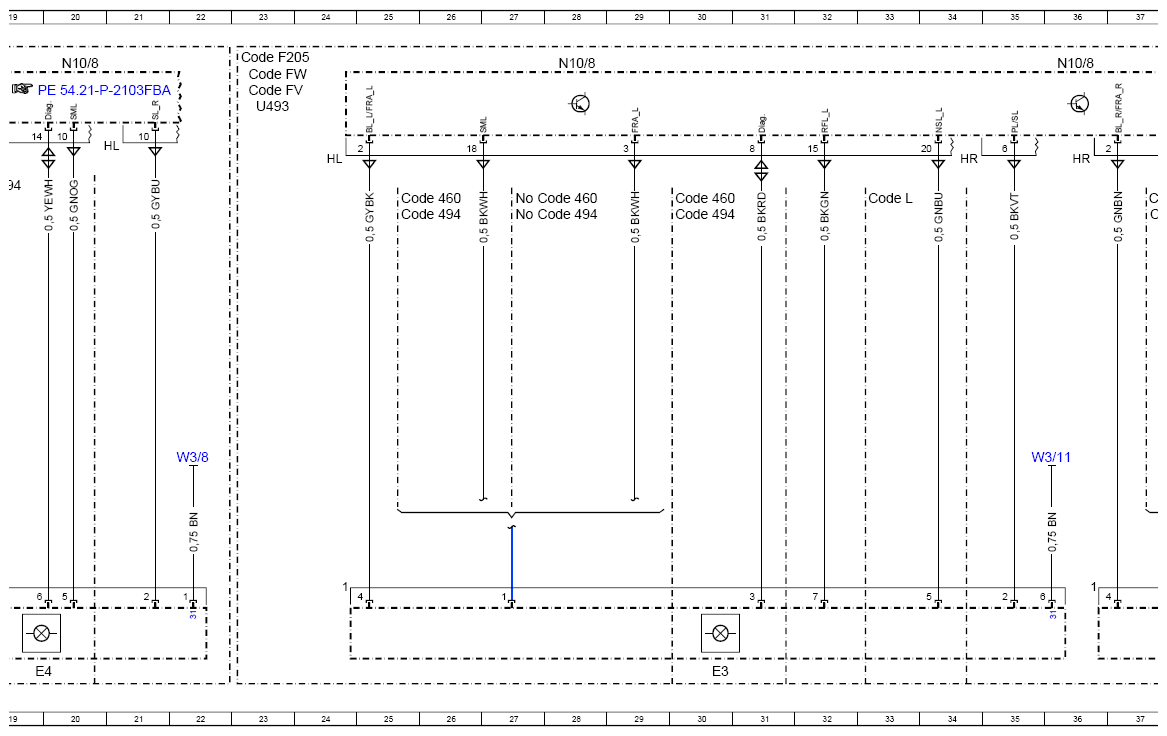

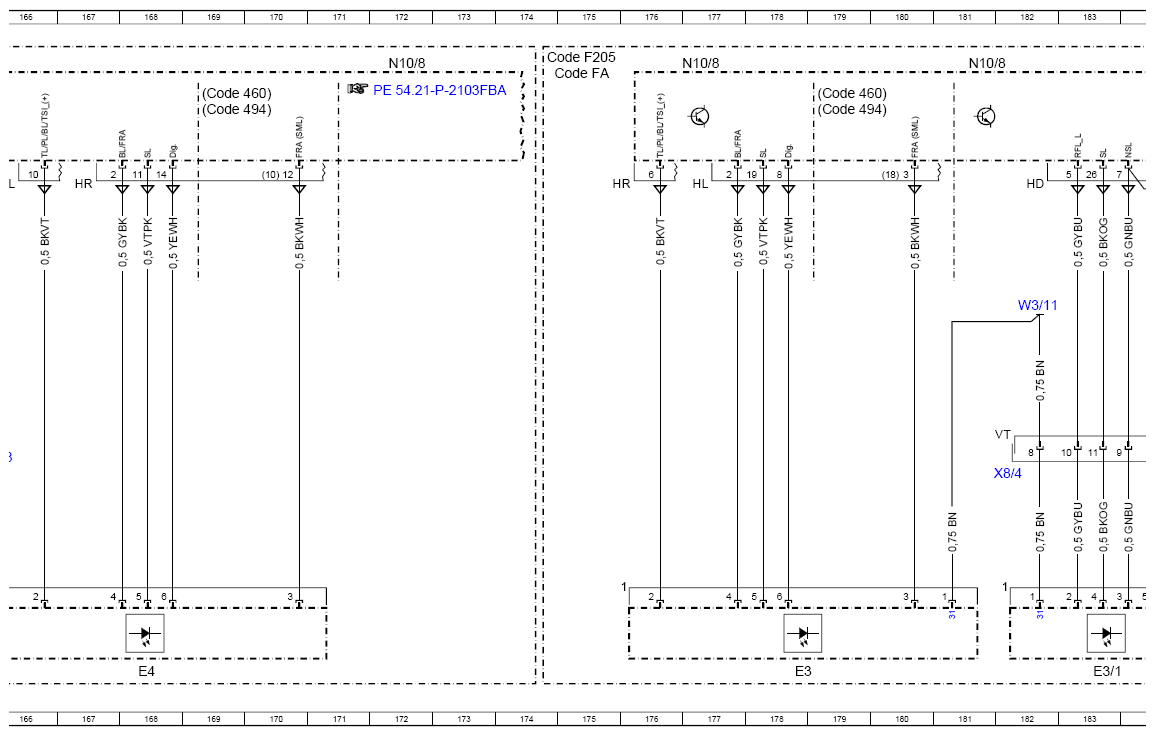

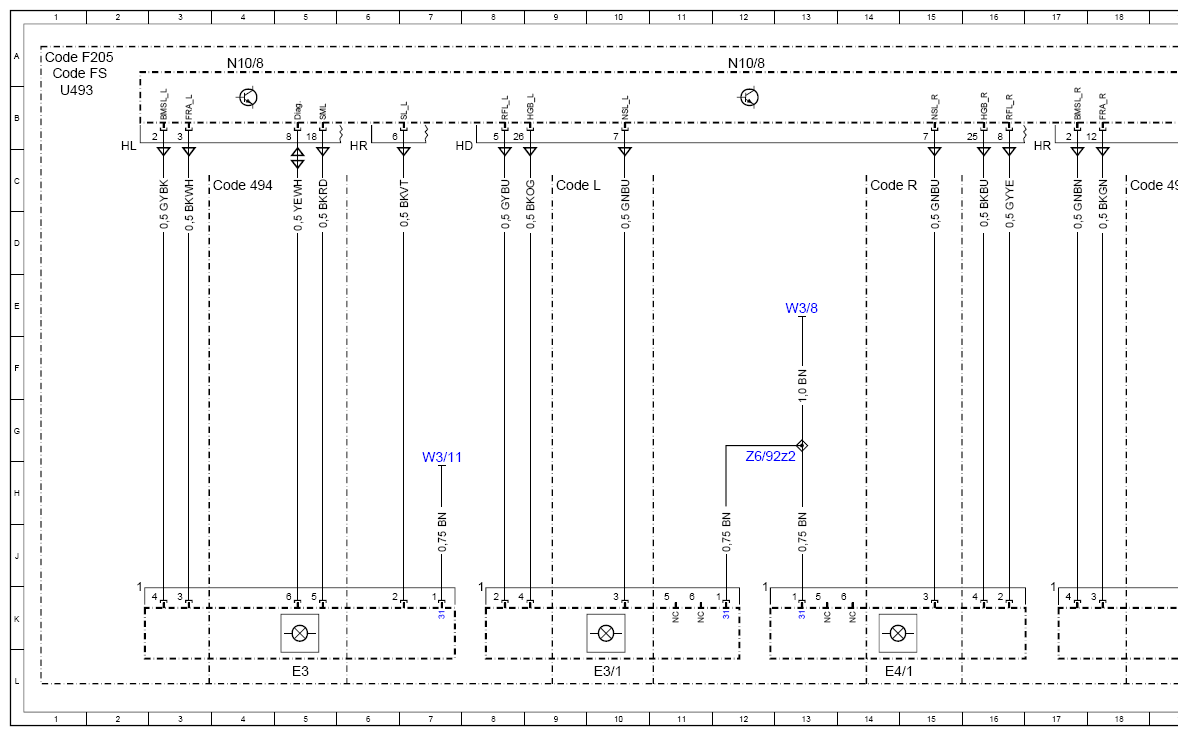

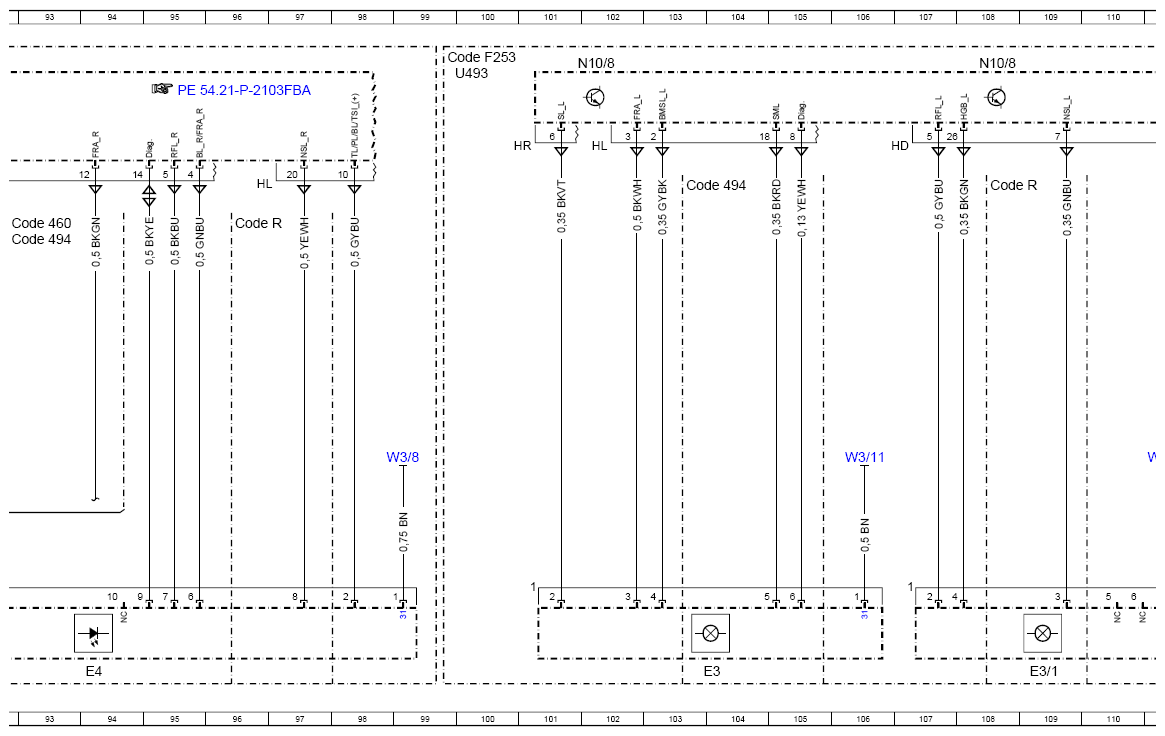

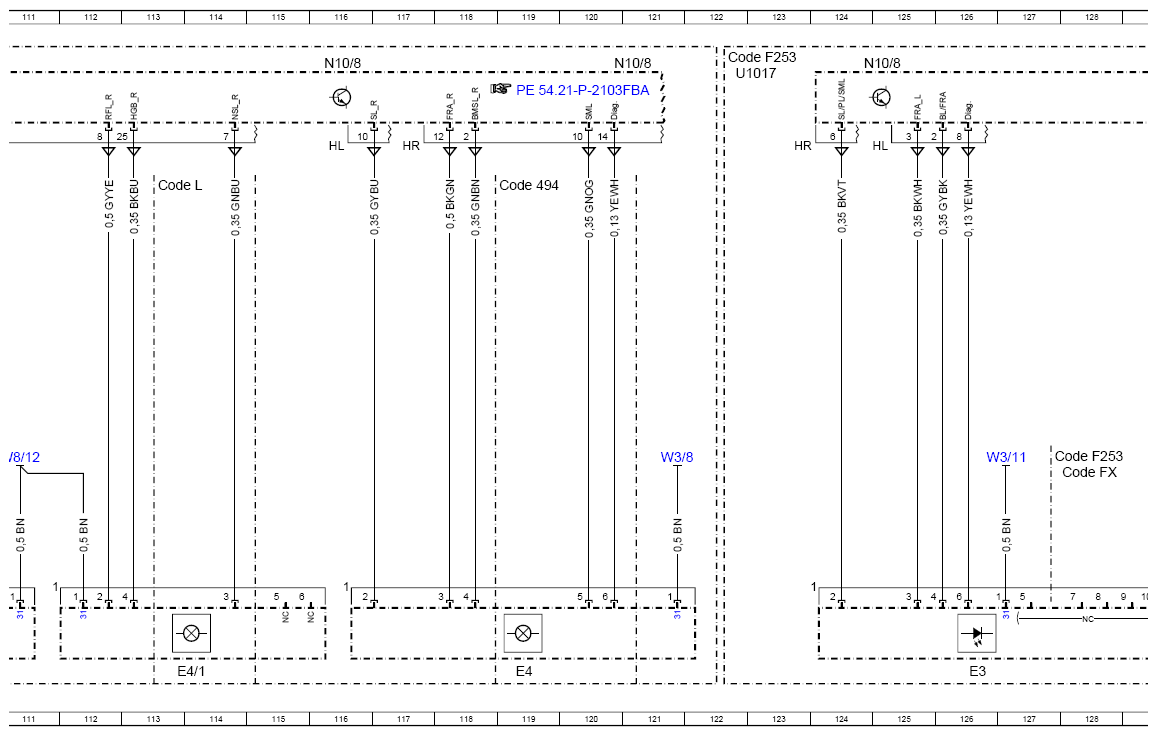

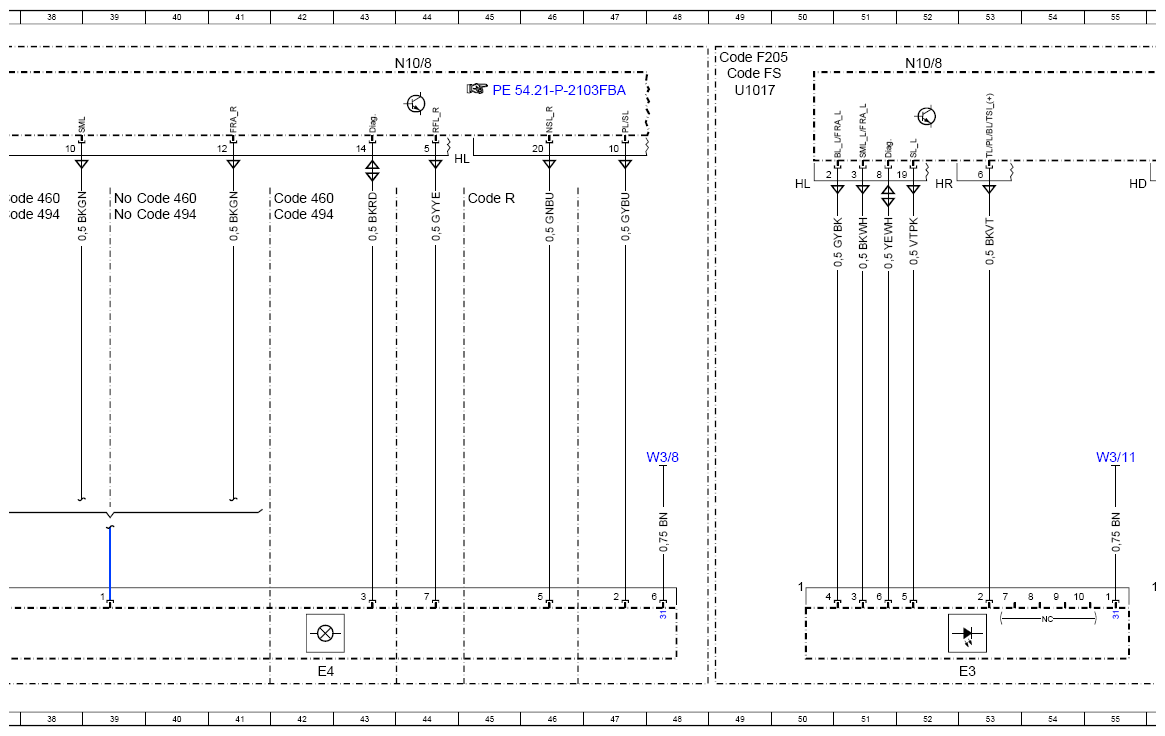

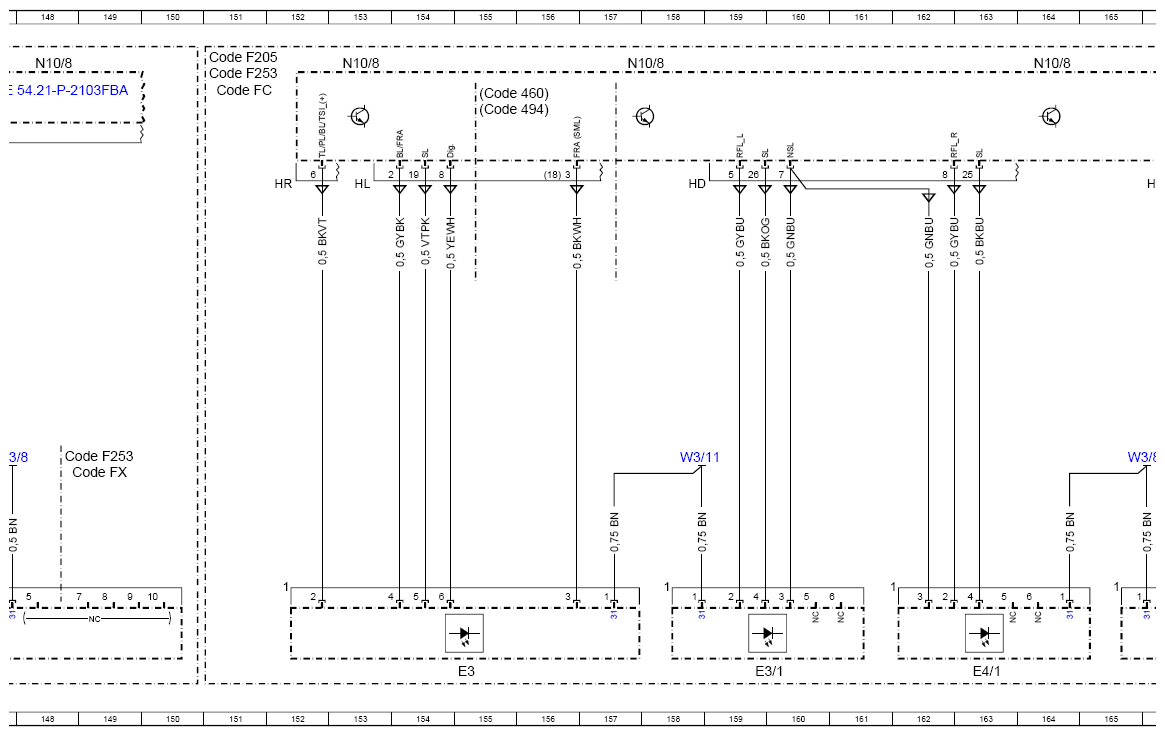

(Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBE)
Model 205
up to model year 2019
Lamp unit E3, E4
Model 253 (except 253.99)
up to model year 2020
Lamp unit E3, E4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 202L |
| Code 460 | Canada version | 37C |
| Code 460 | Canada version | 30C |
| Code 460 | Canada version | 27C |
| Code 460 | Canada version | 25C |
| Code 460 | Canada version | 42C |
| Code 460 | Canada version | 39C |
| Code 460 | Canada version | 77D |
| Code 460 | Canada version | 79D |
| Code 460 | Canada version | 86D |
| Code 460 | Canada version | 92D |
| Code 460 | Canada version | 90D |
| Code 460 | Canada version | 155B |
| Code 460 | Canada version | 169B |
| Code 460 | Canada version | 179B |
| Code 460 | Canada version | 192B |
| Code 494 | USA version | 37D |
| Code 494 | USA version | 4C |
| Code 494 | USA version | 18C |
| Code 494 | USA version | 30D |
| Code 494 | USA version | 25D |
| Code 494 | USA version | 27D |
| Code 494 | USA version | 42D |
| Code 494 | USA version | 39D |
| Code 494 | USA version | 77D |
| Code 494 | USA version | 79D |
| Code 494 | USA version | 90D |
| Code 494 | USA version | 86D |
| Code 494 | USA version | 92D |
| Code 494 | USA version | 103C |
| Code 494 | USA version | 119C |
| Code 494 | USA version | 155B |
| Code 494 | USA version | 169B |
| Code 494 | USA version | 179B |
| Code 494 | USA version | 192B |
| Code 632 | Static LED headlamp, right-hand traffic | 57D |
| Code 632 | Static LED headlamp, right-hand traffic | 65D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 57D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 65D |
| Code F205 | MODEL SERIES 205 | 1A |
| Code F205 | MODEL SERIES 205 | 23A |
| Code F205 | MODEL SERIES 205 | 49A |
| Code F205 | MODEL SERIES 205 | 75A |
| Code F205 | MODEL SERIES 205 | 151A |
| Code F205 | MODEL SERIES 205 | 174A |
| Code F253 | MODEL SERIES 253 | 99A |
| Code F253 | MODEL SERIES 253 | 127G |
| Code F253 | MODEL SERIES 253 | 148G |
| Code F253 | MODEL SERIES 253 | 134G |
| Code F253 | MODEL SERIES 253 | 142G |
| Code F253 | MODEL SERIES 253 | 122A |
| Code F253 | MODEL SERIES 253 | 151A |
| Code FA | CABRIOLET | 174A |
| Code FC | COUPE | 151B |
| Code FS | STATION WAGON | 1A |
| Code FS | STATION WAGON | 49A |
| Code FV | LONG SEDAN | 23B |
| Code FW | SEDAN | 23A |
| Code FW | SEDAN | 75A |
| Code FX | SPORT-UTILITY-VEHICLE | 128H |
| Code FX | SPORT-UTILITY-VEHICLE | 148H |
| Code FX | SPORT-UTILITY-VEHICLE | 134H |
| Code FX | SPORT-UTILITY-VEHICLE | 142H |
| Code L | LEFT-HAND DRIVE | 9C |
| Code L | LEFT-HAND DRIVE | 33C |
| Code L | LEFT-HAND DRIVE | 57D |
| Code L | LEFT-HAND DRIVE | 82D |
| Code L | LEFT-HAND DRIVE | 113C |
| Code L | LEFT-HAND DRIVE | 139C |
| Code R | RIGHT-HAND DRIVE | 14C |
| Code R | RIGHT-HAND DRIVE | 45C |
| Code R | RIGHT-HAND DRIVE | 65D |
| Code R | RIGHT-HAND DRIVE | 96D |
| Code R | RIGHT-HAND DRIVE | 108C |
| Code R | RIGHT-HAND DRIVE | 131C |
| E3 | Left rear lamp unit | 5L |
| E3 | Left rear lamp unit | 30L |
| E3 | Left rear lamp unit | 53L |
| E3 | Left rear lamp unit | 82L |
| E3 | Left rear lamp unit | 104L |
| E3 | Left rear lamp unit | 126L |
| E3 | Left rear lamp unit | 155L |
| E3 | Left rear lamp unit | 178L |
| E3/1 | Inner left rear lamp unit | 10L |
| E3/1 | Inner left rear lamp unit | 58L |
| E3/1 | Inner left rear lamp unit | 109L |
| E3/1 | Inner left rear lamp unit | 132L |
| E3/1 | Inner left rear lamp unit | 159L |
| E3/1 | Inner left rear lamp unit | 183L |
| E4 | Right rear lamp unit | 19L |
| E4 | Right rear lamp unit | 42L |
| E4 | Right rear lamp unit | 71L |
| E4 | Right rear lamp unit | 94L |
| E4 | Right rear lamp unit | 119L |
| E4 | Right rear lamp unit | 147L |
| E4 | Right rear lamp unit | 168L |
| E4 | Right rear lamp unit | 1 91L |
| E4/1 | Inner right rear lamp unit | 14L |
| E4/1 | Inner right rear lamp unit | 66L |
| E4/1 | Inner right rear lamp unit | 113L |
| E4/1 | Inner right rear lamp unit | 140L |
| E4/1 | Inner right rear lamp unit | 163L |
| E4/1 | Inner right rear lamp unit | 186L |
| N10/8 | Rear SAM control unit | 102A |
| N10/8 | Rear SAM control unit | 4A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 20A |
| N10/8 | Rear SAM control unit | 28A |
| N10/8 | Rear SAM control unit | 36A |
| N10/8 | Rear SAM control unit | 44A |
| N10/8 | Rear SAM control unit | 52A |
| N10/8 | Rear SAM control unit | 60A |
| N10/8 | Rear SAM control unit | 68A |
| N10/8 | Rear SAM control unit | 77A |
| N10/8 | Rear SAM control unit | 84A |
| N10/8 | Rear SAM control unit | 92A |
| N10/8 | Rear SAM control unit | 108A |
| N10/8 | Rear SAM control unit | 116A |
| N10/8 | Rear SAM control unit | 121A |
| N10/8 | Rear SAM control unit | 125A |
| N10/8 | Rear SAM control unit | 132A |
| N10/8 | Rear SAM control unit | 140A |
| N10/8 | Rear SAM control unit | 148A |
| N10/8 | Rear SAM control unit | 153A |
| N10/8 | Rear SAM control unit | 157A |
| N10/8 | Rear SAM control unit | 164A |
| N10/8 | Rear SAM control unit | 172A |
| N10/8 | Rear SAM control unit | 177A |
| N10/8 | Rear SAM control unit | 181A |
| N10/8 | Rear SAM control unit | 188A |
| M 0/8 | Rear SAM control unit | 196A |
| U1017 | Valid for lamp unit (LED) | 49B |
| U1017 | Valid for lamp unit (LED) | 75B |
| U1017 | Valid for lamp unit (LED) | 122A |
| U493 | Valid for halogen lamp unit | 1B |
| U493 | Valid for halogen lamp unit | 23B |
| U493 | Valid for halogen lamp unit | 99A |
| W3/11 | Left rear wheel well ground point | 7H |
| W3/11 | Left rear wheel well ground point | 35H |
| W3/11 | Left rear wheel well ground point | 55H |
| W3/11 | Left rear wheel well ground point | 85H |
| W3/11 | Left rear wheel well ground point | 106H |
| W3/11 | Left rear wheel well ground point | 126H |
| W3/11 | Left rear wheel well ground point | 158H |
| W3/11 | Left rear wheel well ground point | 182E |
| W3/8 | Right rear wheel well ground point | 22H |
| W3/8 | Right rear wheel well ground point | 48H |
| W3/8 | Right rear wheel well ground point | 74H |
| W3/8 | Right rear wheel well ground point | 99H |
| W3/8 | Right rear wheel well ground point | 13E |
| W3/8 | Right rear wheel well ground point | 63E |
| W3/8 | Right rear wheel well ground point | 121H |
| W3/8 | Right rear wheel well ground point | 147H |
| W3/8 | Right rear wheel well ground point | 165H |
| W3/8 | Right rear wheel well ground point | 189E |
| W8/12 | Upper right liftgate ground point | 111H |
| W8/12 | Upper right liftgate ground point | 136H |
| X8/4 | Trunk lid/liftgate electrical connector | 182H |
| Z6/92z2 | Trunk lid ground connection connector sleeve | 12G |
| Z6/92z2 | Trunk lid ground connection connector sleeve | 62G |
