Remove/Install Seat Belt (Front Seat) - AR91.40-P-1010LWR
Model 205.4
except code 299 (PRE-SAFE®)
Shown on left side of vehicle
Shown on left side of vehicle
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove lower side trim in rear | AR68.30-P-4784LWR | |
| 2 | Disconnect battery ground line | AR54.10-P-0003LW | |

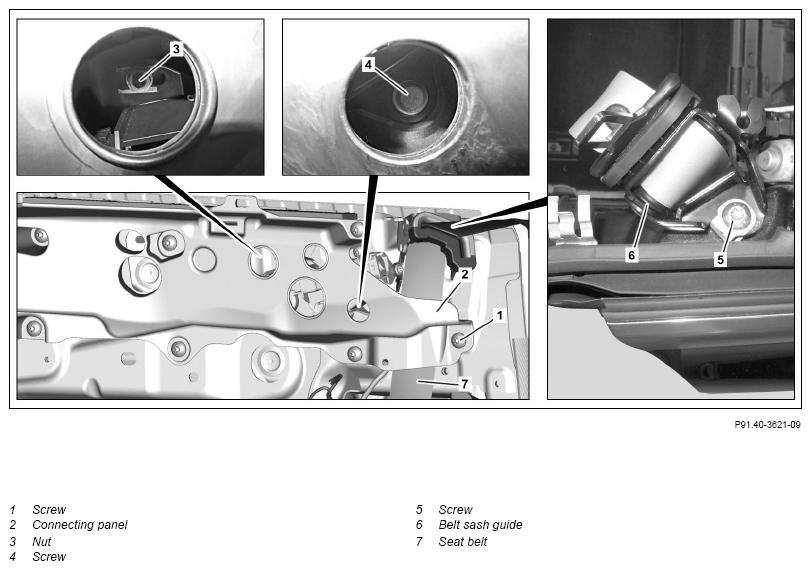

| 3 | Remove screw (1) and loosen remaining screws of connecting panel (2) by several revolutions | *BA64.10-P-1001-01D | |
| 4 | Loosen nut (3) and screw (4) at seat belt extender | ||
| 5 | Remove screw (5) at belt sash guide (6) | *BA91.40-P-1002-01U | |
| 6 | Insert assembly wedge between connecting panel (2) and body | Fig 1 | |
| 7 | Guide out seat belt (7) between connecting panel (2) and body and place down in vehicle together with belt sash guide (6) | ||

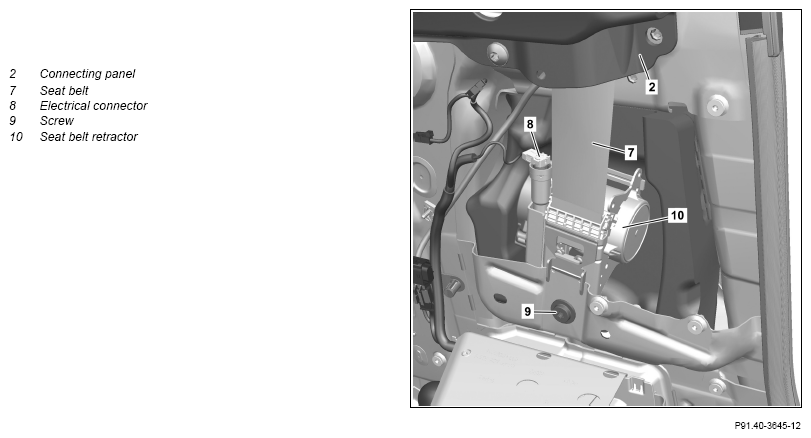

| 8 | Release and disconnect the electrical connector (8) from the squib of the seat belt retractor (10) | Make sure that the electrical connector (8) engages properly on the squib of the seat belt retractor (10). Otherwise, the function of the seat belt retractor (10) is not ensured. |
|
| 9 | Remove screw (9) | *BA91.40-P-1001-01U | |
| 10 | Remove the seat belt (7) with the seat belt retractor (10) from the vehicle | ||
| 11 | Install in the reverse order | ||
| 12 | Check Supplemental Restraint System (SRS) with diagnostic system | When replacing the seat belt retractor (10). | |
| AD00.00-P-2000-04B |
REAR PANEL
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA64.10-P-1001-01D | Bolt, connecting panel to body | Nm | 20 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA91.40-P-1001-01U | Bolt, front seat belt retractor | Nm | 30 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA91.40-P-1002-01U | Bolt, front belt guide bracket | Nm | 30 |
