Remove/Install Seat Backrest Locking Lever - AR91.10-P-0012LW

Model 205.3/4

with code 555 (AMG-Performance Seat)

except code 275 (Driver's seat, electrically adjustable with memory function)

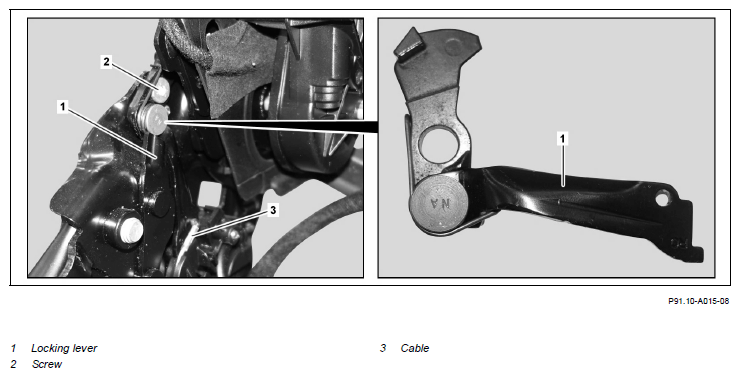

Fig 1: Seat Backrest Locking Lever Component Location - Model 205.3/4 With Code 555 Except Code 275

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Remove seat cushion padding from front seat.		AR91.10-P-5040LW
2	Remove seat backrest padding from front seat.		AR91.10-P-0003LWX
3	Remove bolt (2).	Bolt, backrest locking lever	*BA91.10-P-1008-02A
4	Remove locking lever (1) and unhook cable (3) simultaneously.
5	Install in the reverse order.
