Remove/Install Rear Seat Belts - AR91.40-P-0681LWR

Model 205.4

Model 238.4

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
	Risk of injury.  Injury may result when the tension in the spring in the automatic belt retractor is released.	Never disassemble automatic belt retractors.	AS91.00-Z-0002-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove trim from the roll bars		AR68.30-P-1380LWR
2	Remove left seat backrest in rear		AR91.12-P-1721LWR
3	Remove right seat backrest in rear	When removing the right seat belt.
			AR91.12-P-1721LWR
4	Disconnect battery ground line	Model 205.4	AR54.10-P-0003LW
		Model 238.4	AR54.10-P-0003LWO

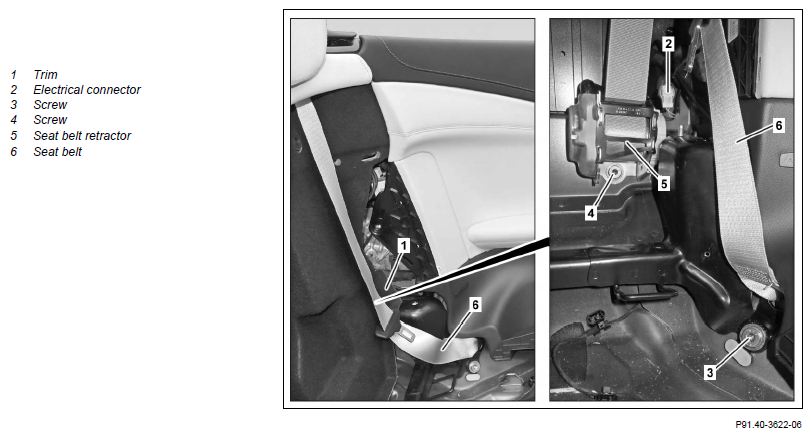

5	Push the trim (1) in the area of the belt retractor (5) to one side
6	Release and disconnect electrical connector (2) from squib of belt retractor (5)	Make sure that the electrical connector (2) engages properly on the squib of the belt retractor (5). Otherwise, the function of the belt retractor (5) is not ensured.
7	Remove screw (3)	Bolt, rear belt end fitting	*BA91.40-P-1005-01U
8	Remove screw (4)	Bolt, rear seat belt retractor	*BA91.40-P-1006-01U
9	Remove seat belt (6) with belt retractor (5)	Observe the running of the seat belt (6).
10	Install in the reverse order
11	Check Supplemental Restraint System (SRS) with diagnostic system	When replacing the belt retractor (5).
		Model 205.4	AD00.00-P-2000-04B
		Model 238.4	AD00.00-P-2000-06LWO
