Remove/Install Rear Seat Belts - AR91.40-P-0681LW
Model 205.0/1
MODIFICATION NOTES
| 20.03.2018 | Special tool added. | (Operation step 3 | 1 |
Shown on model 205.0 except code 287 (Folding rear seat backrests)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove left or right C-pillar trim (4). | AR68.30-P-4490LW | |
| 2 | Disconnect ground line from battery. | AR54.10-P-0003LW | |

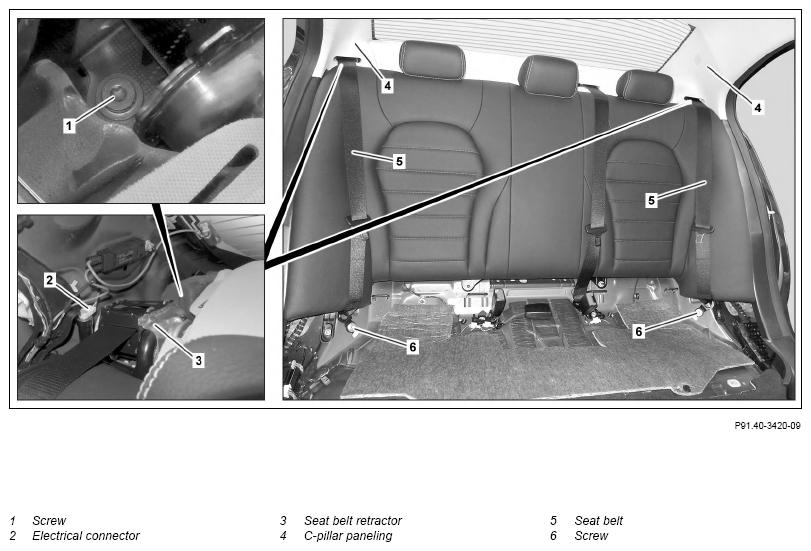

| 3 | Disconnect electrical connection (2).' | Fig 1 | |
| 4 | Unscrew bolt (1). | *BA91.40-P-1006-01U | |
| 5 | Remove seat belt retractor (3) with seat belt (5). | ||
| 6 | Install in the reverse order. | ||
| 7 | Connect vehicle diagnosis system and check Supplemental Restraint System (SRS). | When replacing seat belt retractor (3). | |
| AD00.00-P-2000-04B |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.0 | Model 205.1 | |
|---|---|---|---|---|
| BA91.40-P-1006-01U | Bolt, rear seat belt retractor | Nm | 35 | 35 |
