Remove/Install Multicontour Backrest Air Cushion - AR91.25-P-1740LWX
Model 205, 253
with code 275 (Driver's seat, electrically adjustable with memory function)
with code 555 (AMG-Performance Seat)
Model 213
with code 275 (Memory Package (driver's seat, steering column and mirror))
with code 555 (AMG-Performance Seat)
except code 432 (Dynamic seats left and right)
| Remove/install | |||
| 1 | Remove seat backrest padding. | AR91.10-P-0003LWX | |
| 2 | Detach retaining clips (1), remove air cushion (2) and place to one side. | ||
| 3 | Detach pump (4) and place to one side. | ||
| 4 | Disconnect electrical connector (3). | ||
| 5 | Remove screw (9) and place seat belt (10) to one side. | ||
| 6 | Drill rivet (11). | ||
| 7 | Push holders (12, 13) apart and guide pneumatic line (14) through in between them. | ||

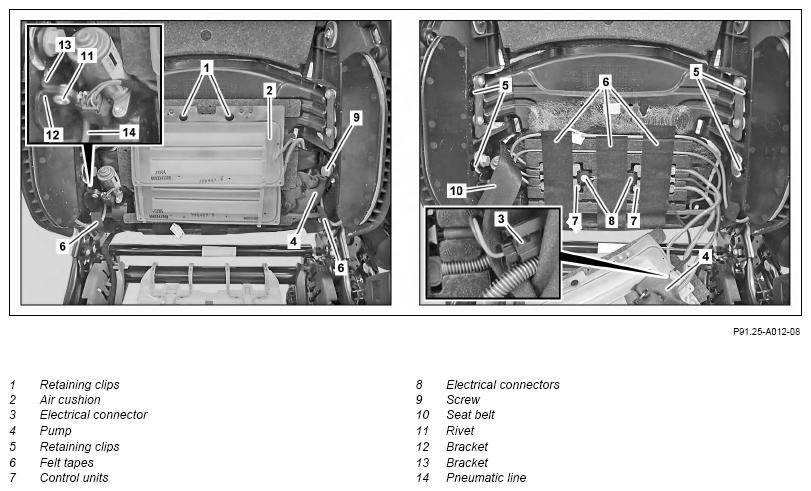

| 8 | Remove retaining clips (5), and remove side air cushions and place to one side. | Fig 1 | |
| 9 | Release felt tapes (6). | ||
| 10 | Remove control units (7) until electrical connectors (8) are accessible. | ||
| 11 | Disconnect electrical connectors (8). | ||
| 12 | Remove air cushion (2), side air cushions, control units (7) and pump (4) together. | ||
| 13 | Install in the reverse order |
