Remove/Install Lumbar Support Air Cushion On Front Seat - AR91.25-P-1450LWX
Model 205, 253
with code 555 (AMG-Performance Seat)
Model 213
with code 275 (Memory Package (driver's seat, steering column and mirror))
with code 555 (AMG-Performance Seat)
Model 213
with code 555 (AMG-Performance Seat)
with code P65 (Ergonomics package)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove seat backrest padding. | AR91.10-P-0003LWX | |

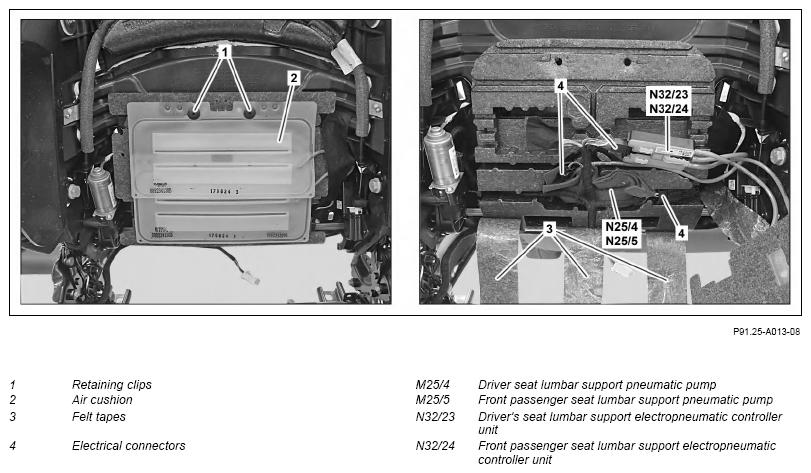

| 2 | Detach retaining clips (1), remove air cushion (2) and place to one side. | ||
| 3 | Unfasten felt tapes (3). | ||
| 4 | Remove lumbar support pneumatic pump (M25/4, M25/5) and place to one side. | ||
| 5 | Remove lumbar support electropneumatic controller unit (N32/23, N32/24) and place to one side. | ||
| 6 | Disconnect electrical connections (4). | ||
| 7 | Remove air cushion (2), lumbar support electropneumatic controller unit (N32/23, N32/24) and lumbar support pneumatic pump (M25/4, M25/5) together. |
||
| 8 | Install in the reverse order |
