Remove/Install Integrated Child Seat In Rear Seat - AR91.20-P-1850CW

Model 204.0/2/9

with code 248 (Rear seat with integrated child seat)

Model 205.0/2

with code 248 (Rear seat with integrated child seat)

Model 212

with code 248 (Rear seat with integrated child seat)

except code 224 (Individual rear seats)

Model 213.0/2

with code 248 (Rear seat with integrated child seat)

Model 246

with code 248 (Rear seat with integrated child seat)

except code U57 (EASY-VARIO-System)

Courtesy of MERCEDES-BENZ USA

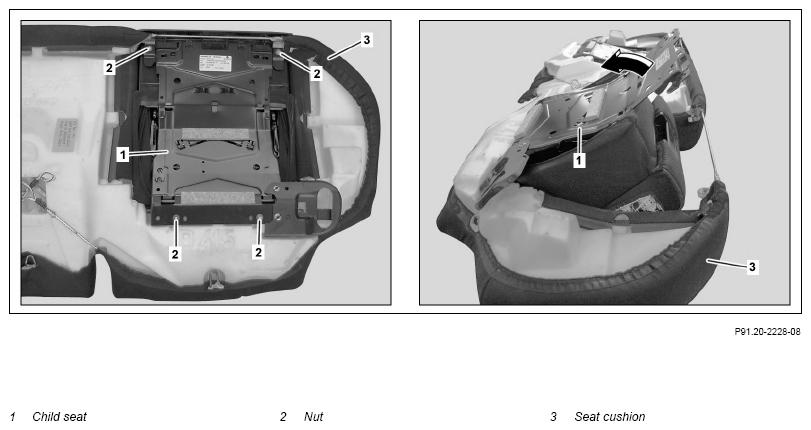

Shown on left side of seat cushion (3), model 204

	Remove/install
1	Remove seat cushion (3)	Model 205.0/2 with code 248 (Rear seat with integrated child seat) Model 213.0/2 with code 248 (Rear seat with integrated child seat)	AR91.12-P-1020LWA
		Model 246 with code 248 (Rear seat with integrated child seat) except code U57 (EASY-VARIO-System)	AR91.12-P-1020NKD
		Model 204.0/2/9 with code 248 (Rear seat with integrated child seat) Model 212 with code 248 (Rear seat with integrated child seat) except code 224 (Individual rear seats)	AR91.12-P-1020CW
2	Place seat cushion (3) onto a suitable protective base	The child seat (1) to be removed must remain folded up.
3	Unscrew nuts (2) from child seat (1)
4	Remove child seat (1), from underside of seat cushion (3), in direction of arrow and out of the seat cushion (3)
5	Install in the reverse order
