Remove/Install Armrest At Rear Seat Backrest - AR91.12-P-1745LW

Model 205.0/1, 213.0

with code 287 (Through-loading feature)

Model 205.2

Model 213.2

Model 253, 293

Courtesy of MERCEDES-BENZ USA

Shown on removed center backrest (1) with code 287 (Folding rear seat backrests)

	Remove/install
1	Release and fold over center seat backrest (1).	Removal of the center backrest (1) is not necessary.
2	Remove left and right screws (2).
3	Unclip left and right cover (4), as shown, with long wedge (6) and remove.	Carefully unclip covers (4). Otherwise the covers (4) may be damaged.
		Ensure that covers (4) are engaged correctly.
		Long wedge	Fig 1
4	Fold back center backrest (1).
5	Fold down armrest (3).
6	Remove cover (5).
7	Remove screws (7) and remove armrest (3).	Bolt, armrest to backrest frame	*BA91.12-P-1006-03M
8	Install in the reverse order

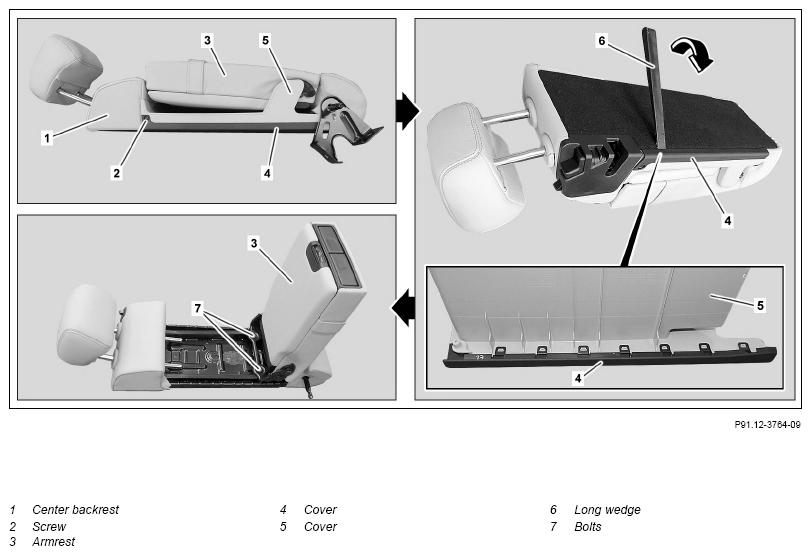

Fig 1: Identifying Long Wedge (115 589 03 59 00)
