Remove, Replace And Install Rear Center Seat Belt - AR91.40-P-0683LWA
Model 205.0/1
with code 287 (Through-loading feature)
Model 205.2
Model 213.0
with code 287 (Through-loading feature)
Model 213.2
Model 253, 293
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove rear left seat backrest cover. | Model 205.0/1 with code 287 (Through-loading feature) Model 205.2, 253, 293 |
AR91.18-P-1874LW |
| Model 213.0 with code 287 (Through-loading feature) Model 213.2 |
AR91.18-P-1874LWE | ||
| 2 | Remove cover from rear seat backrest. | ||

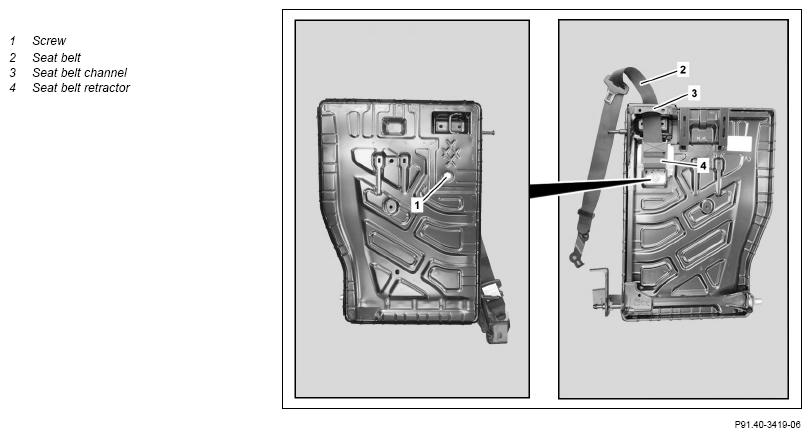

| 3 | Remove screw (1) of seat belt retractor (4). | *BA91.40-P-1007-01U | |
| 4 | Remove seat belt retractor (4) and guide seat belt (2) through seat belt duct (3). | ||
| 5 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.0 | Model 205.1 | |
|---|---|---|---|---|
| BA91.40-P-1007-01U | Bolt, center seat belt retractor to rear seat backrest | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.2 | Model 213 | |
|---|---|---|---|---|
| BA91.40-P-1007-01U | Bolt, center seat belt retractor to rear seat backrest | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 253 | Model 293 | |
|---|---|---|---|---|
| BA91.40-P-1007-01U | Bolt, center seat belt retractor to rear seat backrest | Nm | 35 | 35 |
