Remove And Install Cover On Rear Seat Cushion - AR91.18-P-1850LW
Model 205.0/1/2
except code 248 (Rear seat with integrated child seat)
except code P10 (Taxi package Germany)
Model 253, 293
Shown on MODEL 205.2
Shown on MODEL 205.2
Shown on MODEL 205.2
| Remove | |||
| 1 | Remove seat cushion in rear passenger compartment. | AR91.12-P-1020LW | |

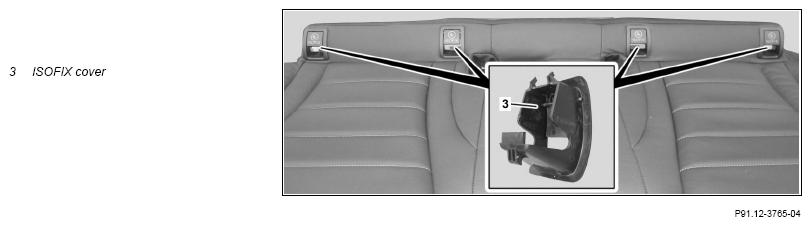

| 2 | Remove ISOFIX covers (3). | ||

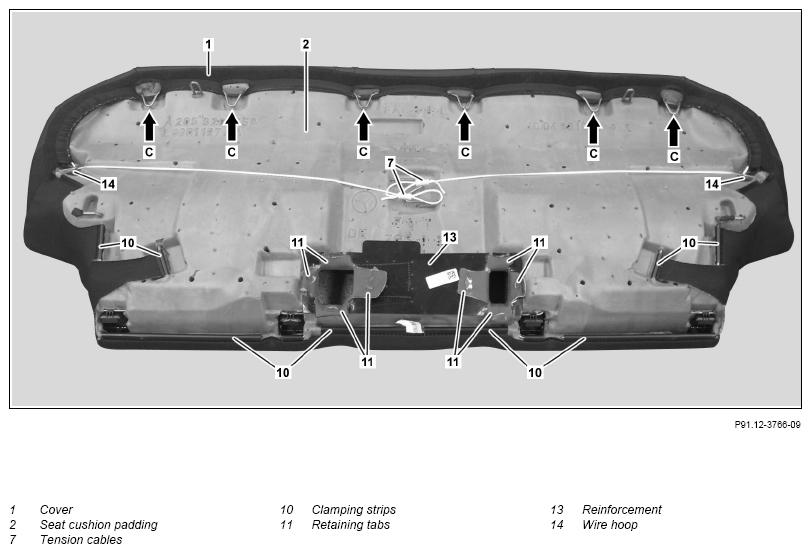

| 3 | Unhook tensioning cables (7) and guide through wire hoops (14). | ||
| 4 | Unhook clamping strips (10). | Fig 3 | |
| 5 | Unhook retaining tabs (11). | ||
| 6 | Unhook cover (1) from holders (arrows C). | Fig 1 | |
| 7 | Pull cover (1) over seat cushion padding (2). | ||

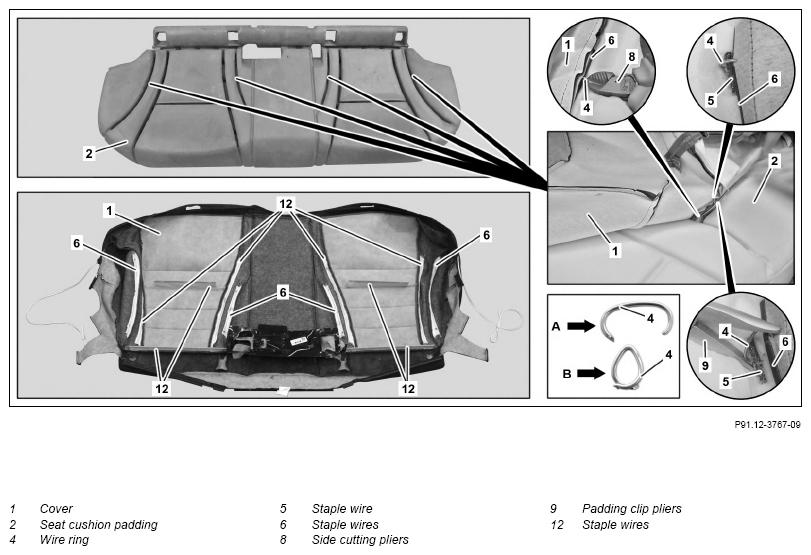

| 8 | Remove wire rings (4) on right and left of seat cushion padding (2) using side cutting pliers (8). | Carefully remove residues from wire rings (4). Otherwise the seat backrest padding (2) or cover (1) can be damaged. |
|
| 9 | Unclip staple wires (12) from seat cushion padding (2). | Fig 2 | |
| 10 | Remove wire rings (4) at center of seat cushion padding (2) using side cutting pliers (8). | Carefully remove residues from wire rings (4). Otherwise the seat backrest padding (2) or cover (1) can be damaged. |
|
| 11 | Guide reinforcement (13) through right seat belt opening and remove cover (1) from seat cushion padding (2). | ||
| 12 | Pull staple wires (6, 12) out of hose straps of cover (1). | When replacing the cover (1). | |
| Install | |||
| 13 | Insert staple wires (6, 12) into hose straps of new cover (1) and smooth out hose straps. | When replacing the cover (1). | |
| 14 | Guide reinforcement (13) through right seat belt opening and align cover (1) over seat cushion padding (2). | ||
| 15 | Align seams of cover (1) and position in cutouts of seat cushion padding (2) | ||
| 16 | Secure center staple wires (6) on staple wires (5) using new wire rings (4). | ||
| Fig 4 | |||
| 17 | Clip in staple wires (12) on seat cushion padding (2). | Fig 2 | |
| 18 | Secure outer staple wires (6) on staple wires (5) using new wire rings (4). | ||
| Fig 4 | |||
| 19 | Pull cover (1) over seat cushion padding (2) and hook into holders (arrows C). | ||
| 20 | Hook in retaining tabs (11). | ||
| 21 | Hook in clamping strips (10). | ||
| 22 | Guide tensioning cables (7) through wire hoops (14) and hook in. | ||
| 23 | Hook in ISOFIX covers (3) with upper holders and clip in at bottom. | ||
| 24 | Install seat cushion in rear. | AR91.12-P-1020LW |
