(Remove Cover Of Integrated Head Restraint - AR91.16-P-0301-01NKB)

Model 117, 156, 176

with code 555 (AMG-Performance Seat)

Model 190.3

up to model year 2018

with code 555 (AMG-Performance Seat)

Model 205

up to model year 2019

with code 555 (AMG-Performance Seat)

Model 253

with code 555 (AMG-Performance Seat)

Courtesy of MERCEDES-BENZ USA

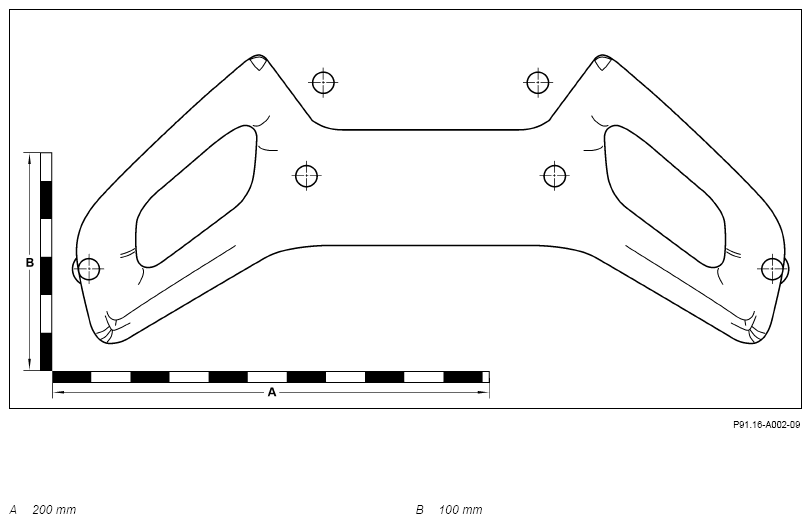

Drilling template

1. Print out drilling template drawing.
2. Determine dimensions (A, B) of print-out.
3. Determine scaling factor.

   Divide dimension specified (A) by dimension determined (A).

   Divide dimension specified (B) by dimension determined (B).

4. Copy printed drilling template to original size using the determined scaling factor.
5. Cut out drilling template.

   Courtesy of MERCEDES-BENZ USA

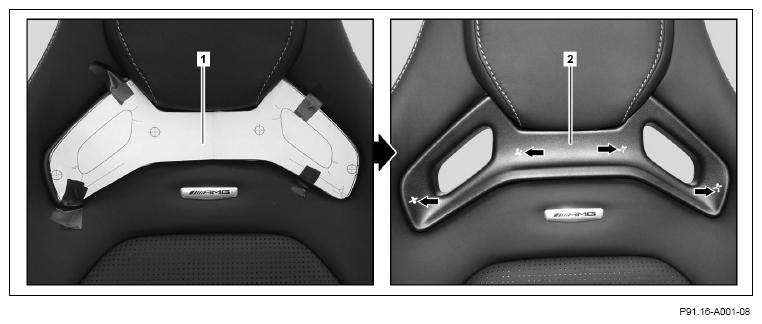

6. Fix cut-out drilling template (1) in place on cover (2).
7. Make markings (arrows) in accordance with drilling template (1).
8. Remove drilling template (1).
9. Drill bores and so make screws below accessible.
10. Remove previously exposed screws.
11. Remove cover (2).
