Pedestrian Protection Sensor, Basic Function - GF91.60-P-2016A
Model all (CAR)
with code U60 (Pedestrian protection - Active hood)
Overview
This document contains the following information:
Location

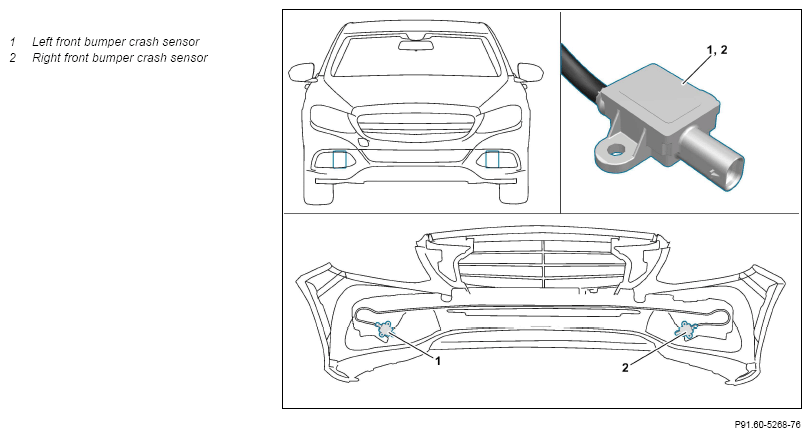

The crash sensors are located on the left and right in the front bumper.
Task
The crash sensors are connected to each other via a hose. They record the pressure in this hose. The pressure increases e. g. when the bumper is pressed in. The Supplemental Restraint System (SRS) control unit evaluates the data from the crash sensors.
| Component descriptions | |||
| Supplemental restraint system sensors, component description | Model 223 with code U60 (Pedestrian protection - Active hood) |
GF91.60-P-4150A |
