Overview Of System Components For Electric Seats - GF91.29-P-9992RF
Model 205, 253

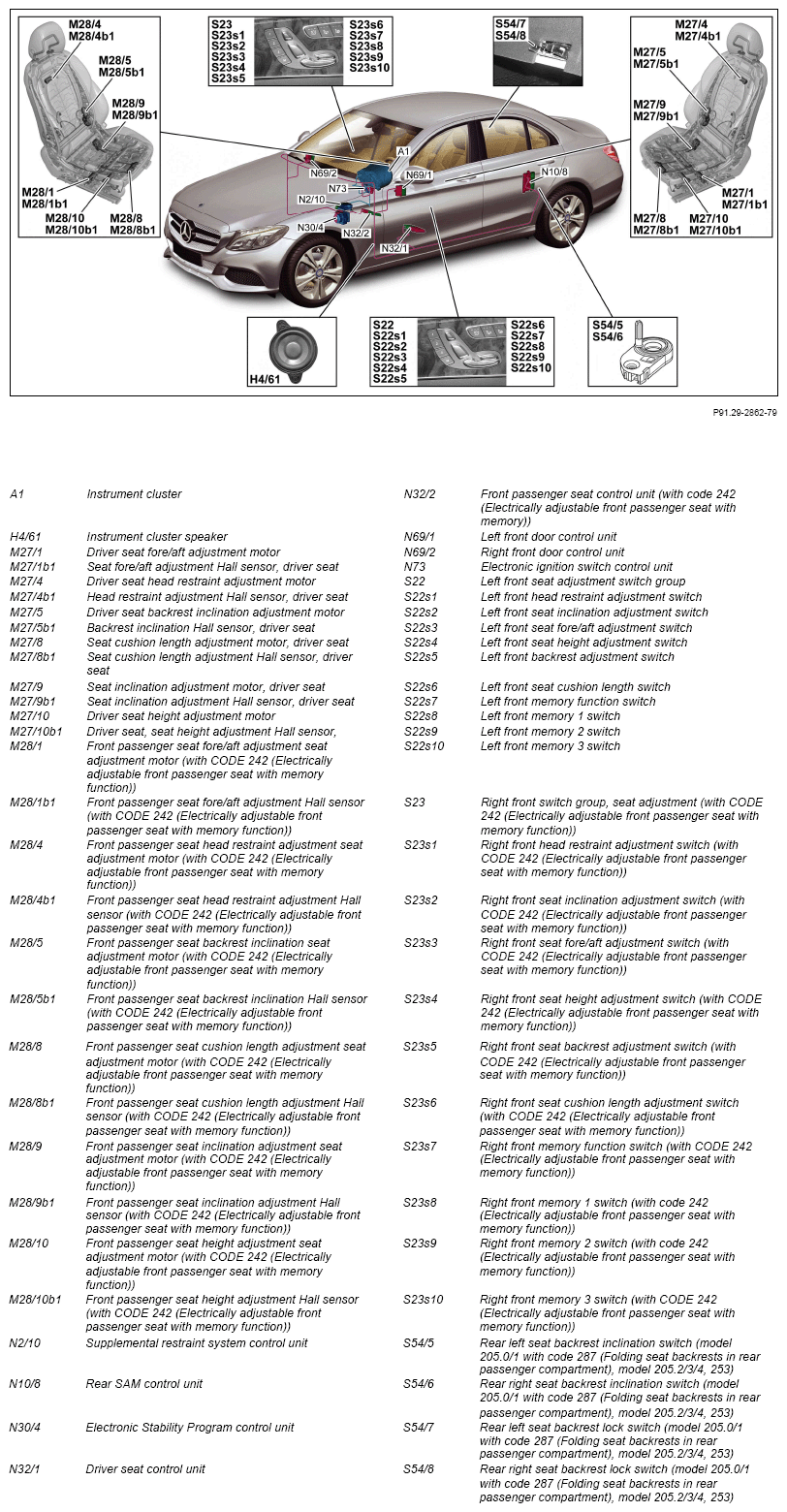

Electrical seat adjustment (ESE) (with code 275 (Memory package)) (shown on model 205.0 up to 01.03.2018)
On model 205.3/4, the following components are also installed, but they are not shown:
- Left backrest release/backrest inclination microswitch (S91/6):
- Left backrest release microswitch (S91/6s1)
- Left backrest inclination microswitch (S91/6s2)
- Right backrest release/backrest inclination microswitch (S92/6):
- Right backrest release microswitch (S92/6s1)
- Right backrest inclination microswitch (S92/6s2)

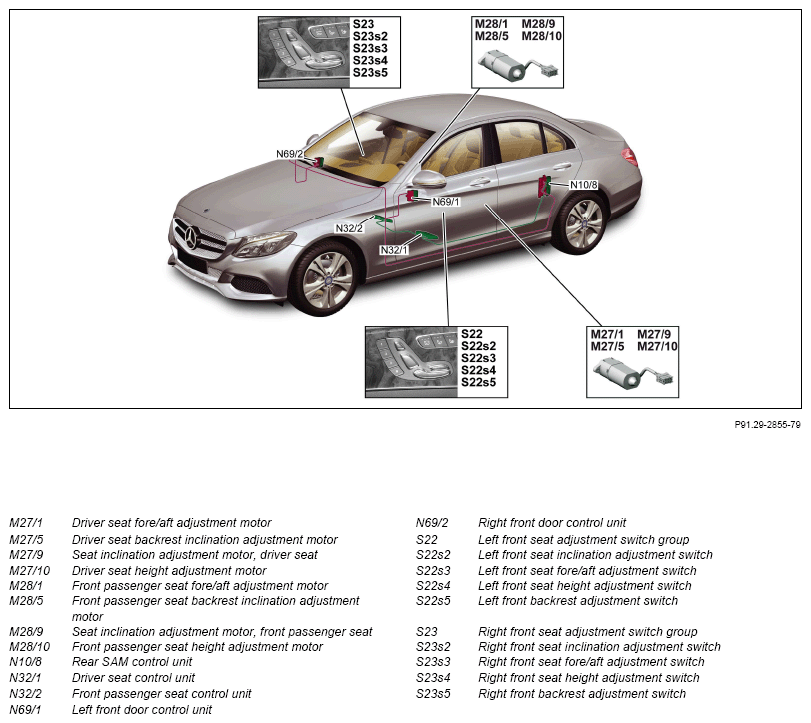

Electrical seat adjustment (ESE) function (except code 221 (Electrically adjustable left driver's seat), except code 222 (Electrically adjustable right front seat) and except code 275 (Memory package)) (shown on model 205.0 up to 01.03.2018)

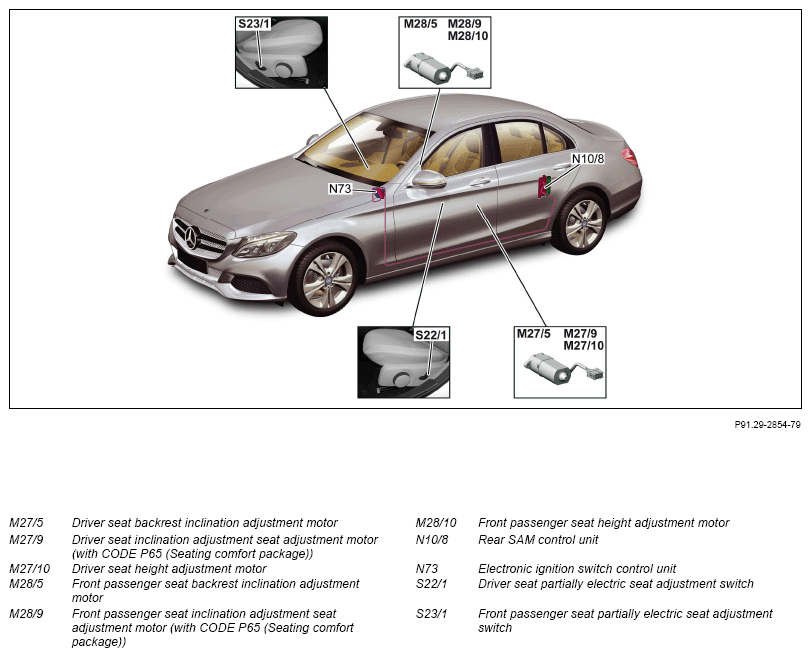

Electrical seat adjustment (ESE) function (with code 221 (Electrically adjustable left driver's seat) and code 222 (Electrically adjustable right front seat)) (shown on model 205.0 up to 01.03.2018)

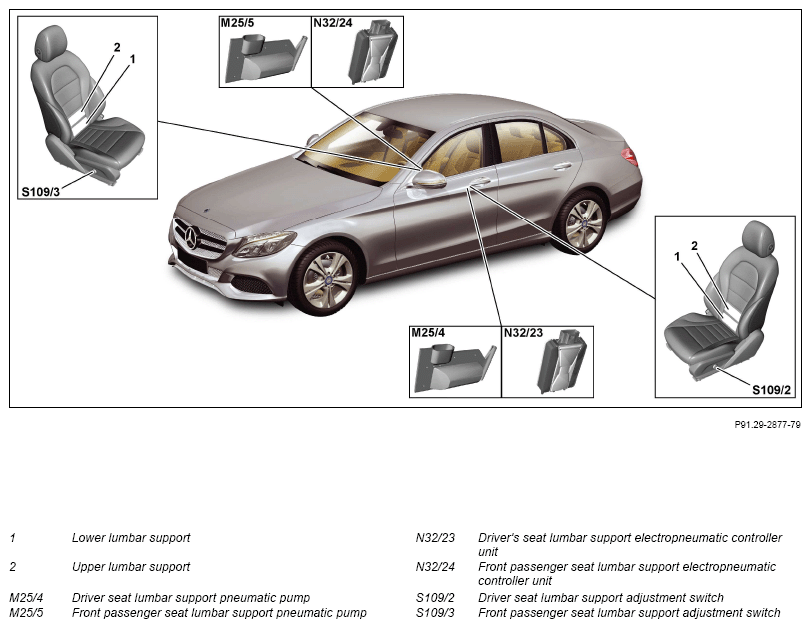

Lumbar support adjustment (with code 221 (Electrically adjustable left driver's seat) and code 222 (Electrically adjustable right front seat) or code 242 (Electrically adjustable front passenger seat with memory function) or code 275 (Memory package) or code P65 (Seat comfort package) and except code 409 (Left/right front multicontour seats)) (shown on model 205.0 up to 01.03.2018)

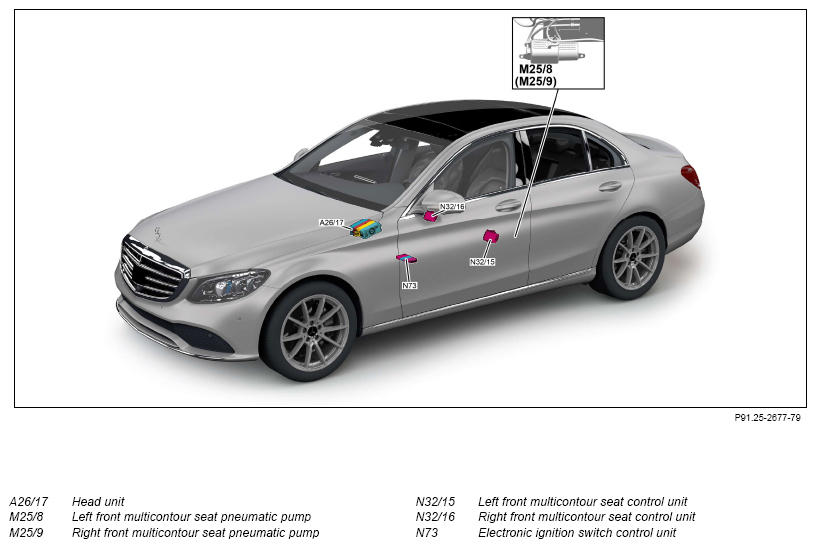

Multicontour seat (MCS) (with code 409 (Left/right front multicontour seats)) (shown on model 205.0 as of 02.03.2018)

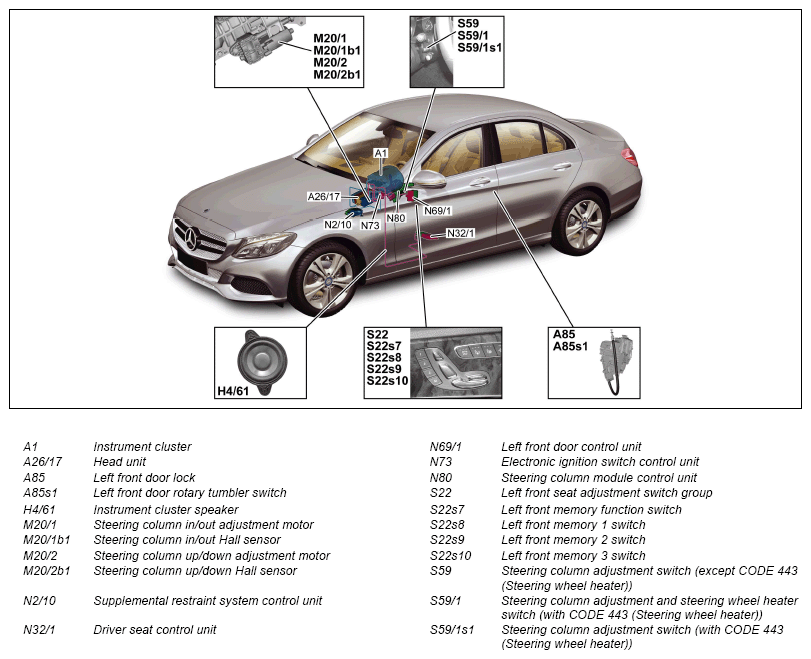

Electric steering column adjustment (with code 275 (Memory package)) (shown on model 205.0 up to 01.03.2018)

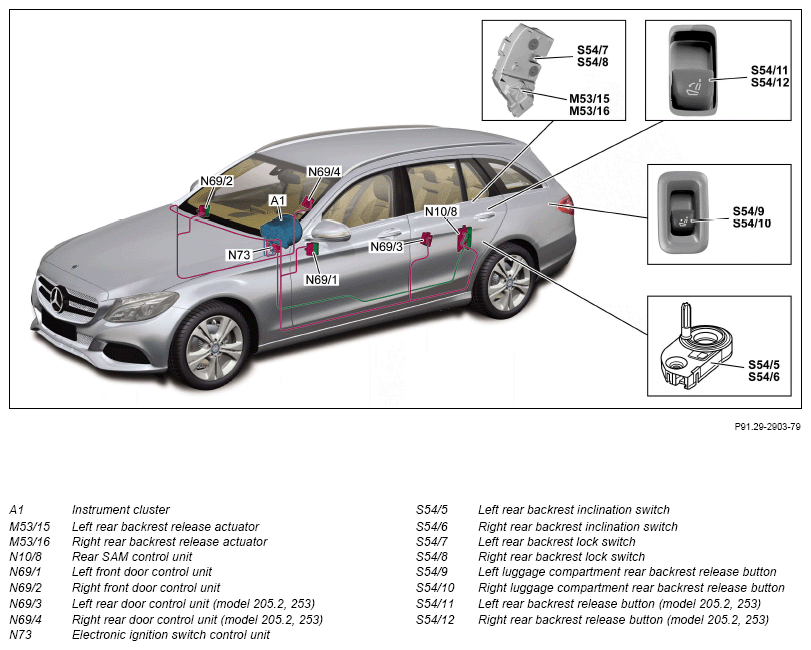

Rear seat backrest release (model 205.2/4, 253) (shown on model 205.2 up to 01.03.2018)
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Model 205 up to model year 2019 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 | GF82.85-P-3140RFA | ||
| up to model year 2019 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 253 (except 253.99) with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
|||
| Model 205, 253 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 205 as of model year 2019 with code 506 (Audio 20 NTG 5.5 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/253), 253 (except 253.353/354/953/954/99) N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/253, 253.353/354/953/954/99 N30/4 |
GF42.45-P-5119RFH | ||
| Component description for driver seat control unit | Model 205, 253 with code 221 (Electrically adjustable left driver seat) Model 205, 253 with code 275 (Memory Package (driver's seat, steering column and mirror)) N32/1 |
GF91.29-P-5231RF | |
| Component description for front passenger seat control unit | Model 205, 253 with code 222 (Electrically adjustable right driver seat) Model 205, 253 with code 242 (Front passenger seat, electrically adjustable with memory function) N32/2 |
GF91.29-P-5241RF | |
| Multicontour seat control unit (MCS), component description | Model 205 as of model year 2019 with code 409 (Left and right front multicontour seat) N32/15, N32/16 |
GF91.25-P-5201RFM | |
| Component description for lumbar support control unit | Model 205, 253 with code 221 (Electrically adjustable left driver seat) with code 222 (Electrically adjustable right driver seat) except code 409 (Left and right front multicontour seat) Model 205, 253 with code 242 (Front passenger seat, electrically adjustable with memory function) except code 409 (Left and right front multicontour seat) Model 205, 253 with code 275 (Memory Package (driver's seat, steering column and mirror)) except code 409 (Left and right front multicontour seat) Model 205, 253 with code P65 (Seat comfort package) except code 409 (Left and right front multicontour seat) N32/23, N32/24 |
GF91.29-P-5281RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2, 253 N69/3, N69/4 | GF72.29-P-6021RF | |
| Component description for the electronic ignition lock control unit | Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N73 |
GF80.57-P-6001RFM | |
| Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N73 |
GF80.57-P-6001RF | ||
| Component description for steering column tube module control unit | Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N80 |
GF54.21-P-6051RFM | |
| Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N80 |
GF54.21-P-6051RF | ||
| Table of contents for function description of electric seats | GF91.29-P-0992RF |
