Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97FBP
Model 205
as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| Code 460 | Canada version | 11D |
| Code 460 | Canada version | 13D |
| Code 494 | USA version | 11D |
| Code 494 | USA version | 13D |
| Code FA | CABRIOLET | 5D |
| Code FA | CABRIOLET | 22D |
| Code FC | COUPE | 16D |
| Code FC | COUPE | 1E |
| Code FS | STATION WAGON | 1E |
| Code FS | STATION WAGON | 7D |
| Code FS | STATION WAGON | 19D |
| Code FV | LONG SEDAN | 16D |
| Code FV | LONG SEDAN | ID |
| Code FW | SEDAN | 16D |
| Code FW | SEDAN | ID |

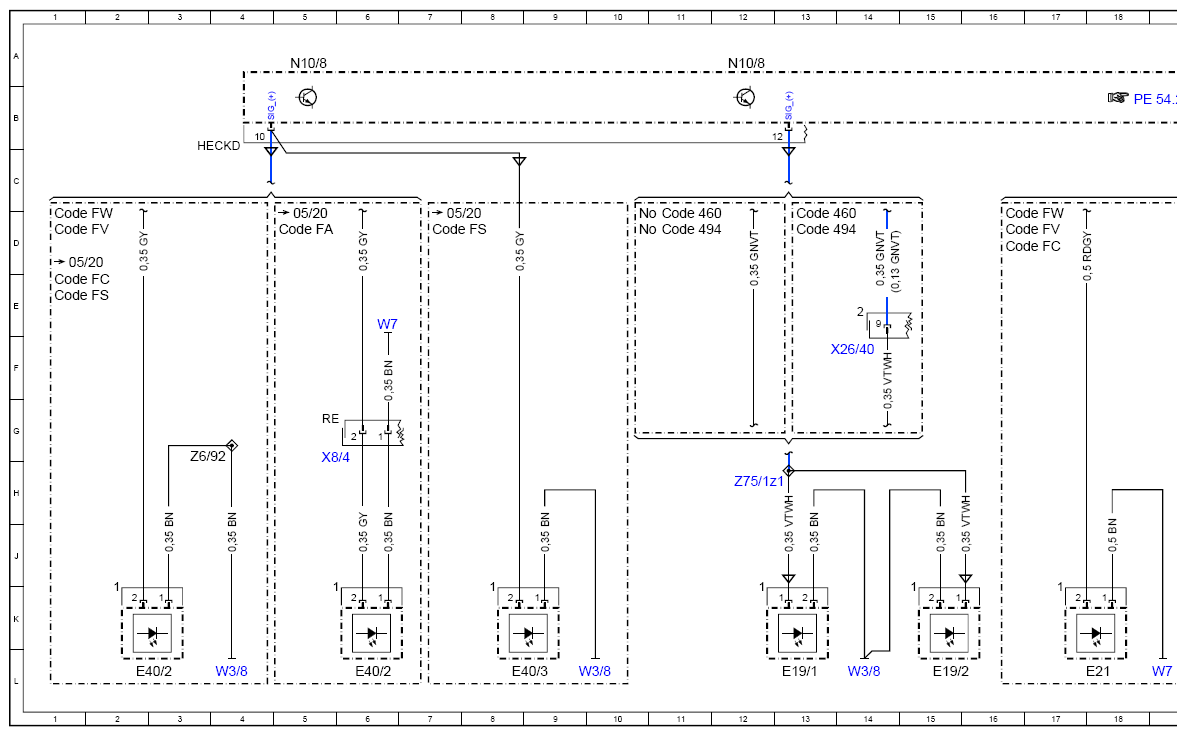

| E19/1 | Left license plate lamp | 13L |
| E19/2 | Right license plate lamp | 15L |

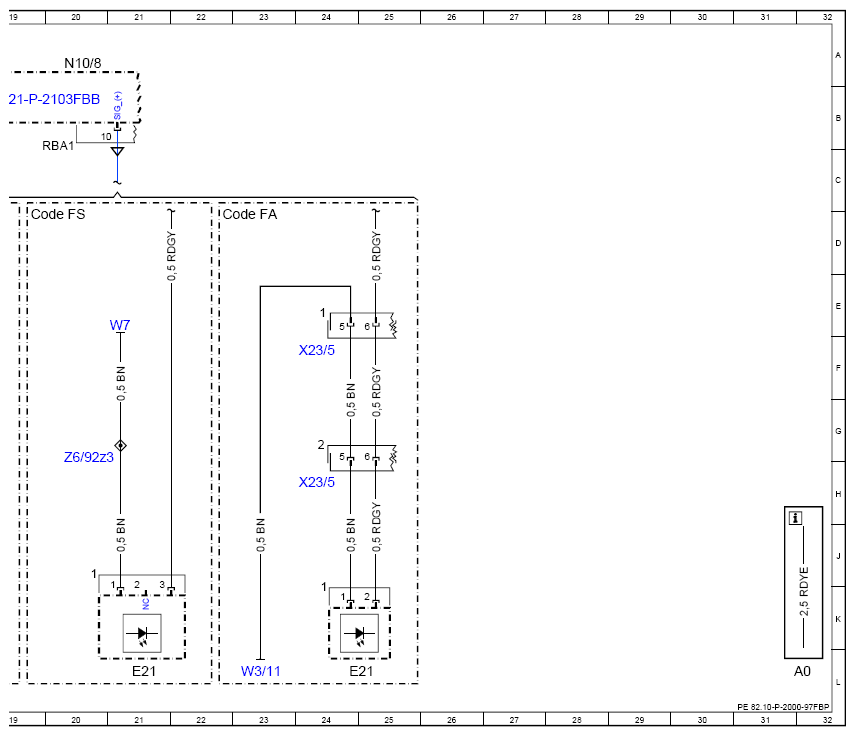

| E21 | Center stop lamp | 18L |
| E21 | Center stop lamp | 21L |
| E21 | Center stop lamp | 24L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 6L |
| E40/2 | Left trunk lid/liftgate ambient lamp and warning lamp | 2L |
| E40/3 | Right trunk lid/liftgate ambient lamp and warning lamp | 8L |
| N10/8 | Rear SAM control unit | 5A |
| N10/8 | Rear SAM control unit | 12A |
| N10/8 | Rear SAM control unit | 20A |
| W3/11 | Left rear wheel well ground point | 23L |
| W3/8 | Right rear wheel well ground point | 4L |
| W3/8 | Right rear wheel well ground point | 10L |
| W3/8 | Right rear wheel well ground point | 14L |
| W7 | Right wheel house trunk ground point | 6E |
| W7 | Right wheel house trunk ground point | 19L |
| W7 | Right wheel house trunk ground point | 21E |
| X23/5 | Electrical connector / soft top compartment lid | 24H |
| X23/5 | Electrical connector / soft top compartment lid | 24F |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 14F |
| X8/4 | Trunk lid/liftgate electrical connector | 6H |
| Z6/92 | Trunk lid ground connection connector sleeve | 3G |
| Z6/92z3 | Trunk lid ground connector sleeve | 20G |
| Z75/1z1 | License plate lamp connector sleeve | 12H |
