Install New Radial Sealing Ring On Outside Right Of Front Axle Gear - AR33.30-P-0540LWY
Model 205 with transmission 722.96/97
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. | AS00.00-Z-0017-01A | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Secure vehicle on vehicle lift | AR00.60-P-0100CW | |
| 2 | Remove center and rear section of lower engine compartment paneling | AR61.20-P-1105LW | |
| 3 | Drain oil from front axle differential (1) | ||
| *BF33.30-P-1001-03F | |||
| *BA33.30-P-1008-03G | |||
| Fig 1 | |||
| 4 | Remove right front axle shaft | AR33.30-P-0620LWY | |

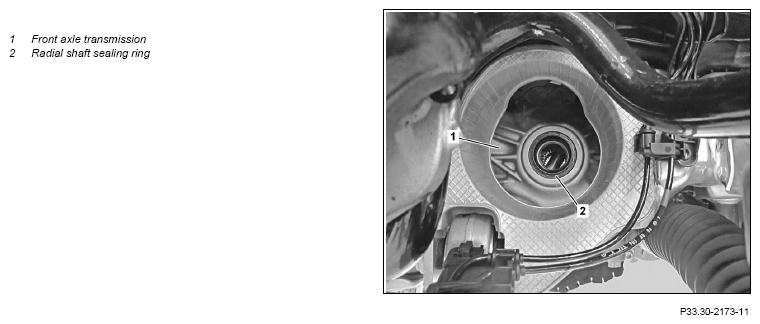

| 5 | Pull radial shaft sealing ring (2) using internal extractor, puller and impact extractor out of front axle transmission (1) | ||
| Universal hypoid gear oils (specification 235.7) | BB00.40-P-0235-07A | ||
| Fig 2 | |||
| Fig 5 | |||
| Fig 4 | |||
| Fig 3 | |||
| 6 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 7 | Perform engine test run and check front axle transmission (1) for leak tightness and proper functioning | ||
| 8 | Install center and rear sections of lower engine compartment paneling | AR61.20-P-1105LW |
FRONT AXLE GEAR
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA33.30-P-1008-03G | Front axle transmission drain screw | Nm | 20 |
FRONT AXLE GEAR
| Number | Designation | Model 205 | ||
|---|---|---|---|---|
| BF33.30-P-1001-03F | Hypoid gear oil | Filling capacity | Liter | 0, 55 |
| Universal hypoid gear oil | BB00.40-P-0235-07A | |||
| Overview of axle gear oils | BB00.40-P-0231-01A | |||
| Axle gear oils | BB00.40-P-0239-72A | |||
