Remove/Install Seat Side Bolster For Backrest In Rear - AR91.12-P-1711LWR

Model 205.4

Model 238.4

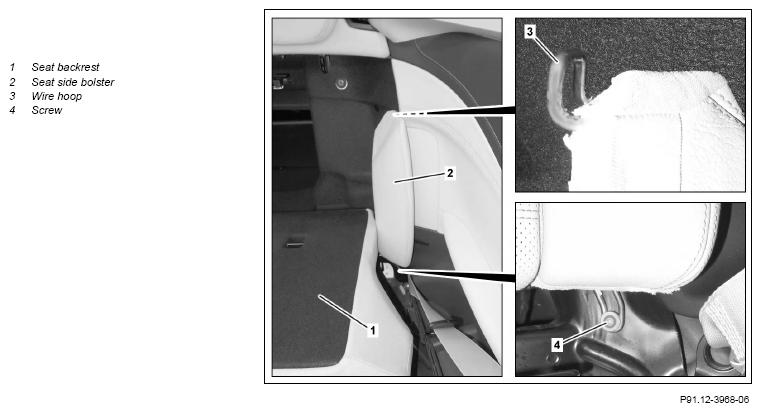

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove seat cushion in rear	Model 205.4 with code 248 (Rear seat with integrated child seat) Model 205.4 with code P10 (Taxi package Germany)	AR91.12-P-1020LWA
		Model 205.4 except code 248 (Rear seat with integrated child seat) except code P10 (Taxi package Germany) Model 238.4	AR91.12-P-1020LW
2	Release backrest (1) and fold forward
3	Hang seat belt to one side
4	Unscrew bolt (4)
5	Push backrest (1) as far down as possible, extend seat side bolster (2) at bottom and unhook from wire bracket (3) at top	Pay attention to correct seating of the seat side bolster (2).
6	Install in the reverse order
