Remove/Install Electric Refrigerant Compressor - AR83.55-P-5311LWH

Model 205 (except 205.053/054/253) with engine 274

with code ME06 (Hybrid drive 60 kW variant (incl. plugin))

Model 205.053/054/253

Model 253.354/954

MODIFICATION NOTES

09.11.2018 Instructions and link validities adapted. Operation steps 12, 13, 14, 21, 22 and 23.
G12939705Courtesy of MERCEDES-BENZ USA
G12939706Courtesy of MERCEDES-BENZ USA
G12939707Courtesy of MERCEDES-BENZ USA
  Risk of death  when working on component parts and systems with U > = 30 V alternating voltage (AC) or U > = 60 V direct voltage (DC) Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. AS00.00-Z-0035-01A
WARNING Risk of poisoning  caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury  to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms.
Carry out repair work on the air conditioning system circuit only after the system has been evacuated.
AS83.00-Z-0006-01A
  Risk of fire  due to ignition of R1234yf refrigerant on hot components. Risk of poisoning  caused by inhaling overheated refrigerant vapors. Risk of injury  to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion  due to formation of ignitable refrigerant/air mixtures Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms.
Carry out repair work on the air conditioning system circuit only after the system has been evacuated.
AS83.00-Z-0007-01A
  General information on handling vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system   AH00.00-Z-0300-01A
  Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
  Notes on battery   AH54.10-P-0001-01A
  Protect air conditioning circuit and components from moisture when carrying out repair work   AH83.30-N-0005-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
  Notes on handling refrigerant R134a   AH83.30-N-0003-01A
  Notes on handling refrigerant R1234yf   AH83.30-P-0003-02A
REMOVING Remove
1 Perform power disconnect of high-voltage on-board electrical system. Model 253.354/954 AR54.10-P-1150LVH
    Model 205.047/147/247 with engine 274
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 205.053/054/253
AR54.10-P-1150LW
2 Discharge air conditioning system.   AR83.30-P-1760LW

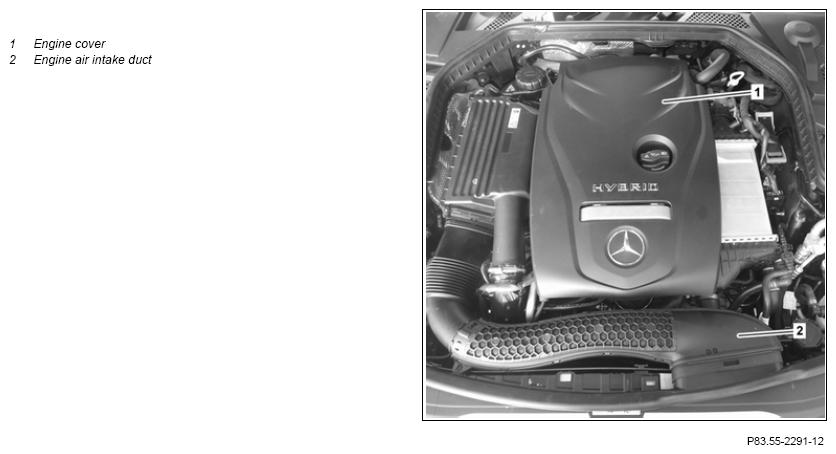

3 Remove engine cover (1).
4 Remove engine air intake duct (2).

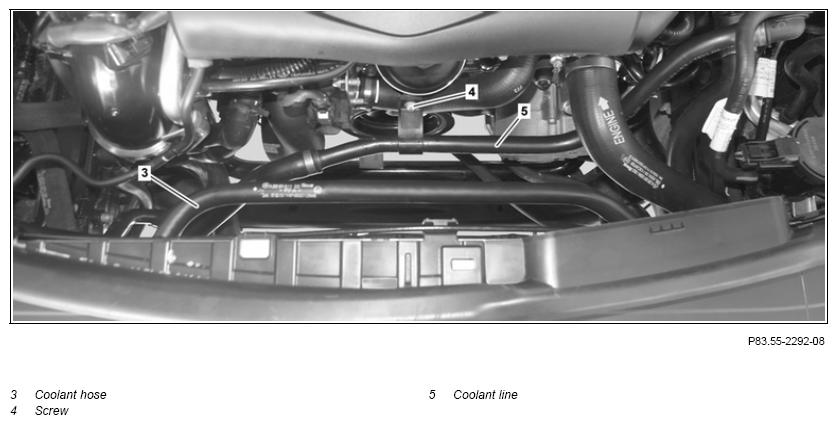

5 Unhook coolant hose (3) from brackets and push to one side.
6 Remove screw (4) and push coolant line (5) to one side.

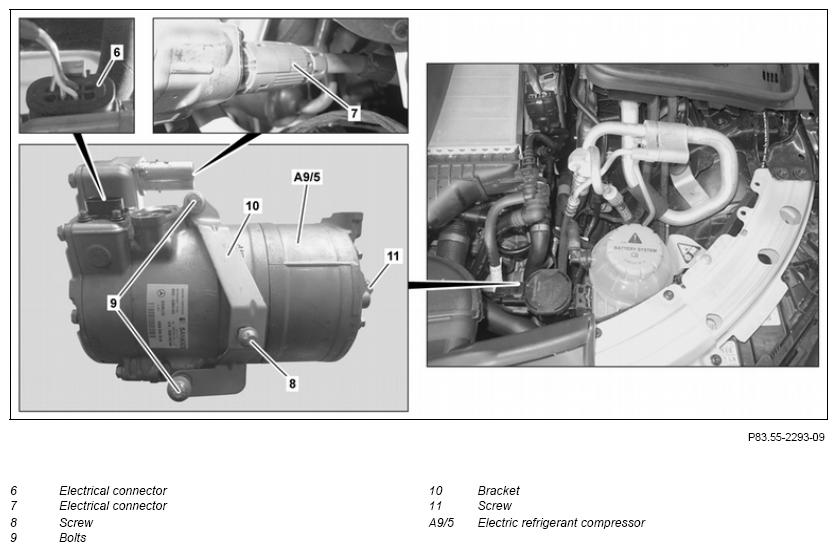

7 Disconnect electrical connection (6).
8 Detach electrical connector (7).
9 Remove screw and detach high-pressure line from electric refrigerant compressor (A9/5) and seal openings. SPECIAL TOOL Record plug Fig 2
    SPECIAL TOOL Set of protective covers Fig 1
10 Remove screw and detach low-pressure line from electric refrigerant compressor (A9/5) and seal openings. SPECIAL TOOL Record plug Fig 2
    SPECIAL TOOL Set of protective covers Fig 1
11 Remove front engine compartment lining and center engine compartment lining.   AR61.20-P-1105LW
12 Remove screw/bolt (8). Model 205 (except 205.053/054/253) with engine 274
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 253.354/954

13 Remove screws/bolts (9).
14 Remove holder (10). Model 205 (except 205.053/054/253) with engine 274
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 253.354/954

15 Secure electric refrigerant compressor (A9/5) against falling down and remove screw (11).
16 Lower vehicle.
17 Remove electric refrigerant compressor (A9/5) from above from engine compartment. NOTES Carefully remove electric refrigerant compressor (A9/5).
Otherwise adjacent components may be damaged.

INSTALLING Install
18 Insert electric refrigerant compressor (A9/5) from above into engine compartment and secure against falling down. NOTES Carefully insert electric refrigerant compressor (A9/5).
Otherwise adjacent components may be damaged.

19 Raise vehicle.
20 Position electric refrigerant compressor (A9/5) and screw in screw (11). IMPORTANT Helper required.
TORQUE SPECIFICATION Screw/bolt, refrigerant compressor to timing case/crankcase/engine support
*BA83.55-P-1001-01M
21 Attach bracket (10). Model 205 (except 205.053/054/253) with engine 274
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 253.354/954

22 Screw in screws (9). TORQUE SPECIFICATION Screw/bolt, refrigerant compressor to timing case/crankcase/engine support *BA83.55-P-1001-01M
23 Screw in screw (8). Model 205 (except 205.053/054/253) with engine 274
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 253.354/954

24 Lower vehicle.
25 Remove protective cover and replace sealing ring of low-pressure line.
26 Attach low-pressure line to electric refrigerant compressor (A9/5) and screw in screw. TORQUE SPECIFICATION Bolt, refrigerant line to refrigerant compressor *BA83.30-P-1008-01Q
27 Remove protective cover and replace sealing ring of high-pressure line.
28 Attach high-pressure line to electric refrigerant compressor (A9/5) and screw in screw. TORQUE SPECIFICATION Bolt, refrigerant line to refrigerant compressor *BA83.30-P-1008-01Q
29 Check receiver drier for re-usability. If necessary,

Replace drier cartridge.
AR83.30-P-6521LW
30 Install front engine compartment lining and center engine compartment lining.   AR61.20-P-1105LW
31 Connect electrical connector (7).
32 Connect electrical connector (6).
33 Screw in screw (4).
34 Hook coolant hose (3) into brackets.
35 Install engine air intake duct (2).
36 Install engine cover (1).
37 Fill air conditioning.   AR83.30-P-1760LW
38 Perform initial startup of high voltage on-board electrical system. Model 205.047/147/247
with code ME06 (Hybrid drive 60 kW variant (incl. plugin))
Model 205.053/054/253
AR54.10-P-1150LW
    Model 253.354/954 AR54.10-P-1150LVH
39 Connect vehicle diagnosis system and perform break in of electric refrigerant compressor
(A9/5).
When replacing the electric refrigerant compressor (A9/5).
REFER TO SELF-DIAGNOSTIC SYSTEMS     AD00.00-P-2000-04B
AIR CONDITIONING

Number Designation Model 205 Model 253
BA83.30-P-1008-01Q Bolt, refrigerant line to refrigerant compressor Nm 20 20
REFRIGERANT COMPRESSOR

Number Designation Engine 274
BA83.55-P-1001-01M Screw/bolt, refrigerant compressor to timing case/crankcase/engine support Nm 20
Fig 1: Identifying Set Of Protective Covers (001 589 01 91 00)
G12939708Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Record Plug (129 589 00 91 00)
G12939709Courtesy of MERCEDES-BENZ USA
