Wiring Diagram For Upper Control Panel Control Unit - PE54.21-P-2119-97FBB
Model 205 as of model year 2019 Control unit N72/1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A105 | Touchpad | 9L |
| A40/9 | Audio/COMAND control panel | 13L |
| Code 446 | Touchpad only | 7H |
| Code 448 | Touchpad | 11H |
| K40/6 | Driver-side fuse and relay module | 5L |
| K40/6f209 | Fuse 209 | 4L |
| LIN A3 | LCP LIN | 9K |
| LIN A3 | LCP LIN | 13K |
| N10/6 | Front SAM control unit | 18L |

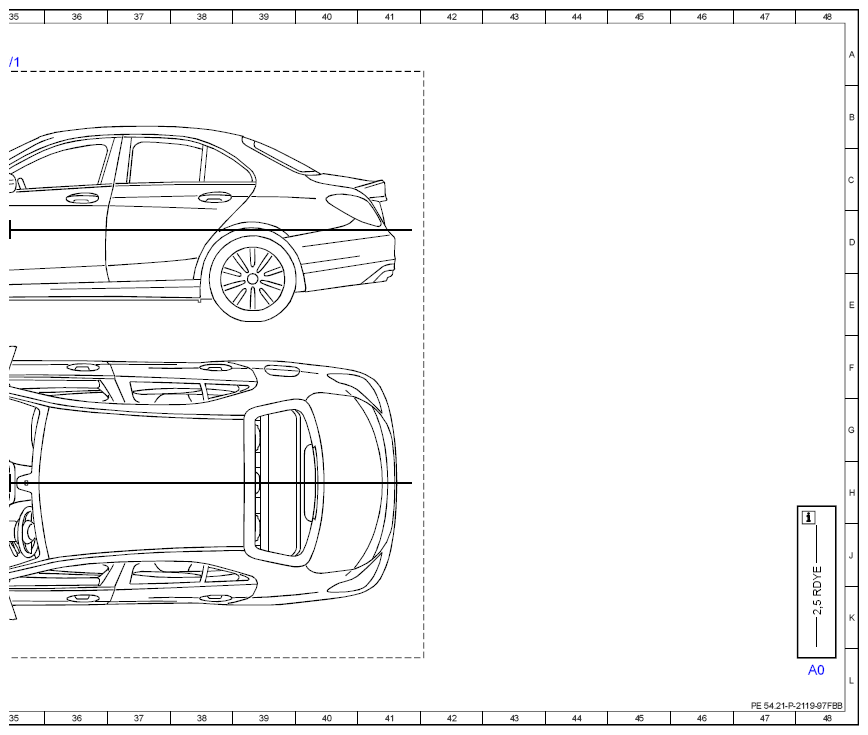

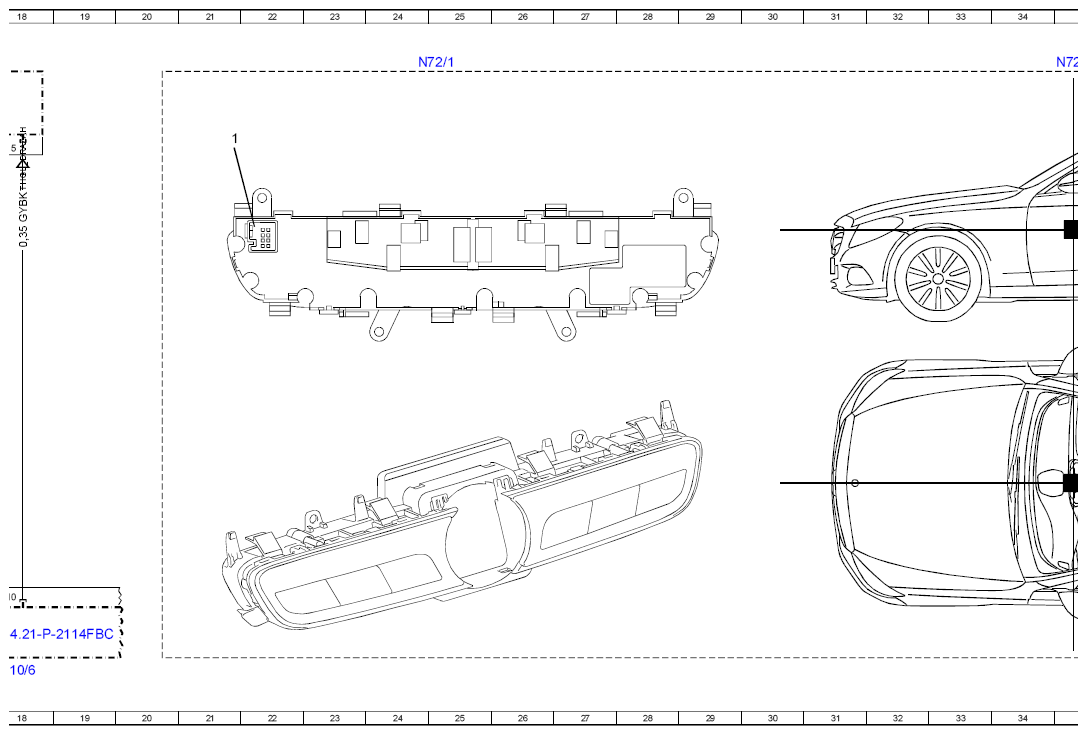

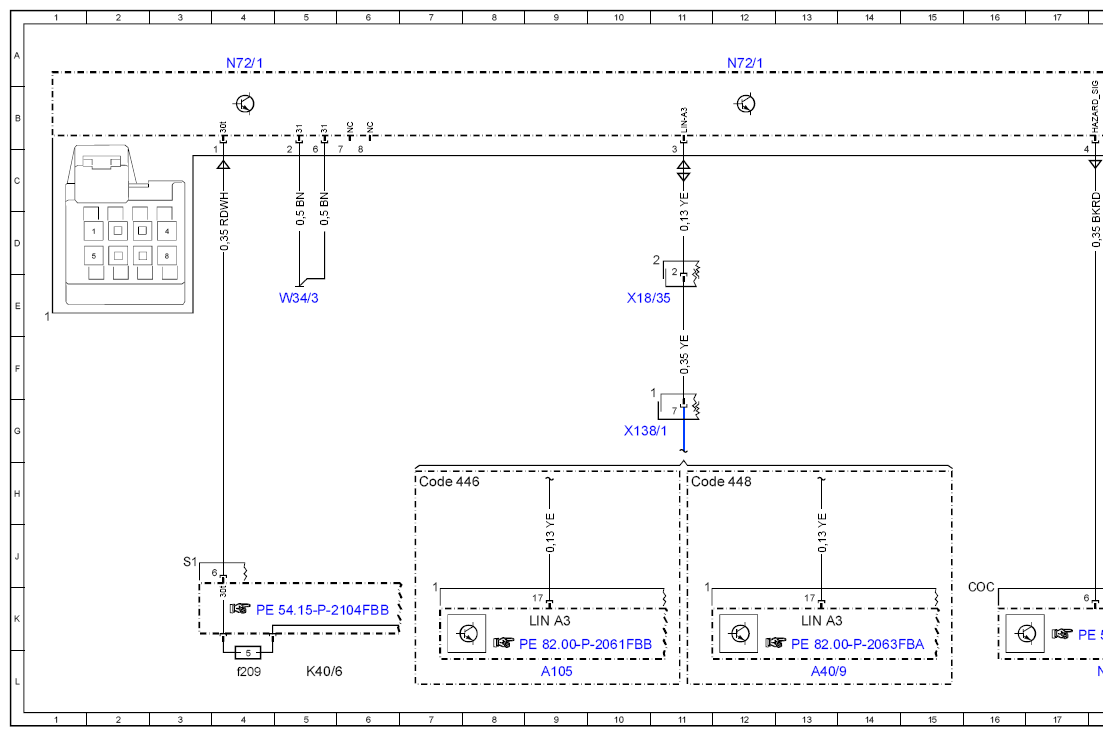

| N72/1 | Upper control panel control unit | 24A |
| N72/1 | Upper control panel control unit | 4A |
| N72/1 | Upper control panel control unit | 12A |
| N72/1 | Upper control panel control unit | 35A |
| W34/3 | Right footwell ground point | 5E |
| X138/1 | Front center console electrical connector | 10G |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 11E |
