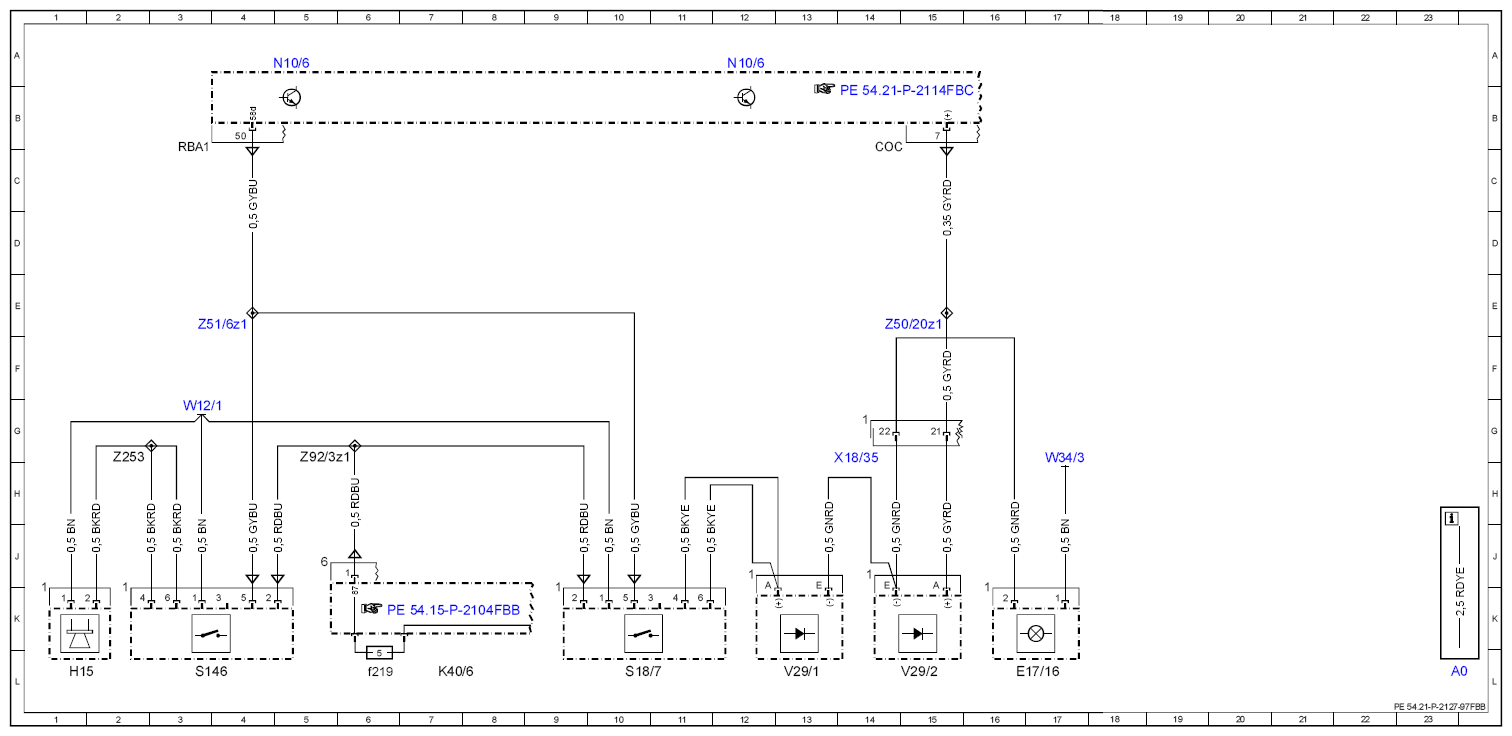

Wiring Diagram For Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2127-97FBB
Model 205 as of model year 2019 with code U63 (Driving school package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| E17/16 | Left front footwell lamp | 17L |
| H15 | Pedal operation monitor buzzer | 1L |
| K40/6 | Driver-side fuse and relay module | 7L |
| K40/6f219 | Fuse 219 | 6L |
| N10/6 | Front SAM control unit | 5A |
| N10/6 | Front SAM control unit | 12A |
| S146 | Pedal operation monitor switch | 3L |
| S18/7 | Footwell illumination switch | 10L |
| V29/1 | Footwell illumination diode 1 | 13L |
| V29/2 | Footwell lamp diode 2 | 15L |
| W12/1 | Right center console ground point | 3G |
| W34/3 | Right footwell ground point | 17H |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 14H |
| Z253 | Pedal operation monitor buzzer connector sleeve | 2G |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 15E |
| Z51/6z1 | Circuit 58d vehicle interior connector sleeve | 4E |
| Z92/3z1 | Driving school package tml. 87 end sleeve | 5G |
