Wiring Diagram For Front Signal Acquisition And Actuation Module (SAM) Control Unit - PE54.21-P-2114-97FBB
Model 205 up to model year 2019 Control unit N10/6, Sheet 2 Model 253 (except 253.99) up to model year 2020 Control unit N10/6, Sheet 2

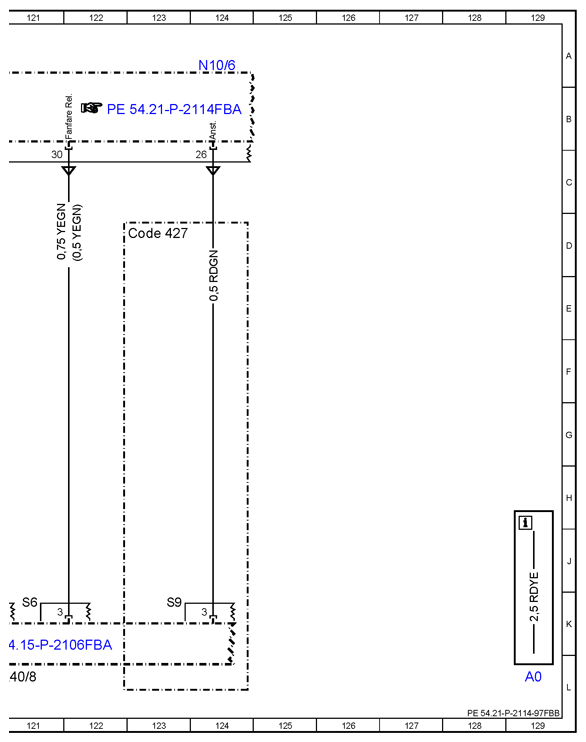

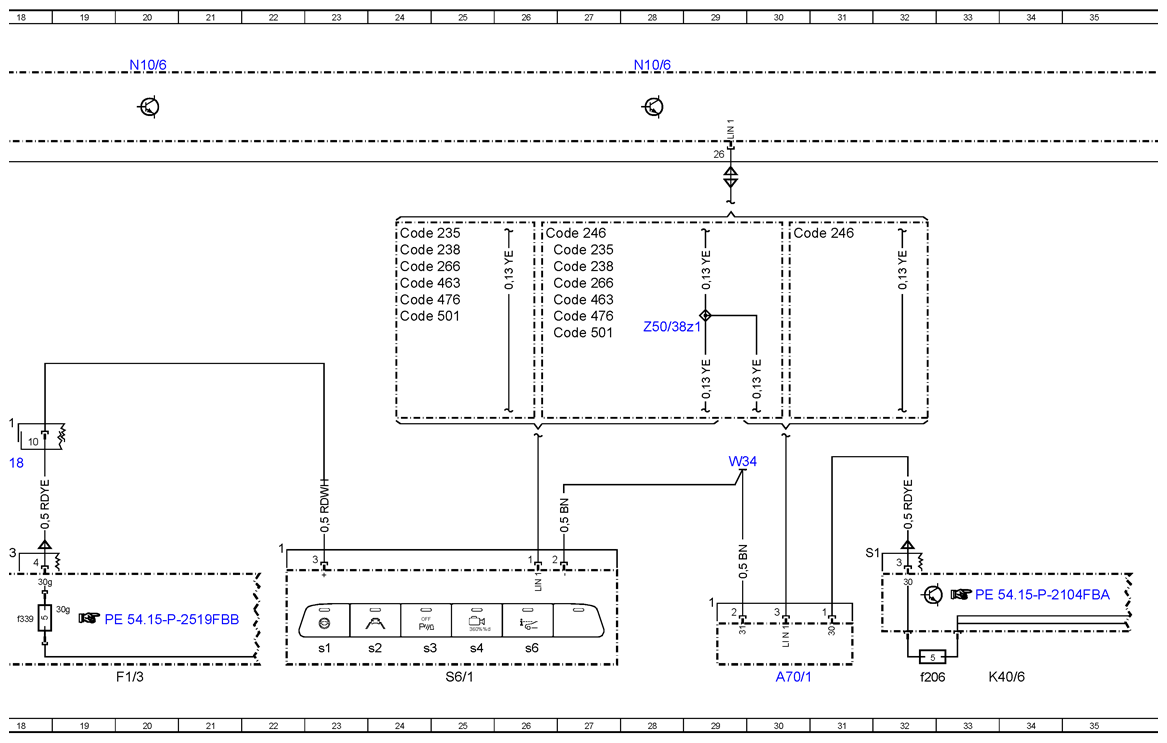

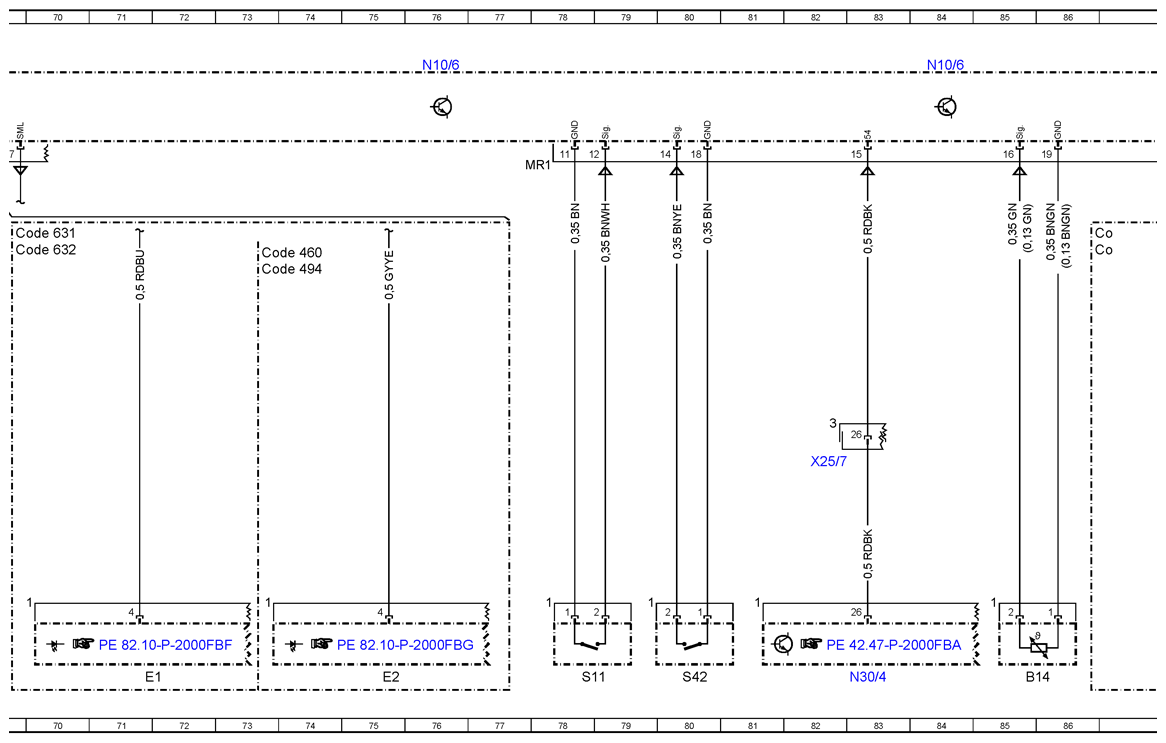

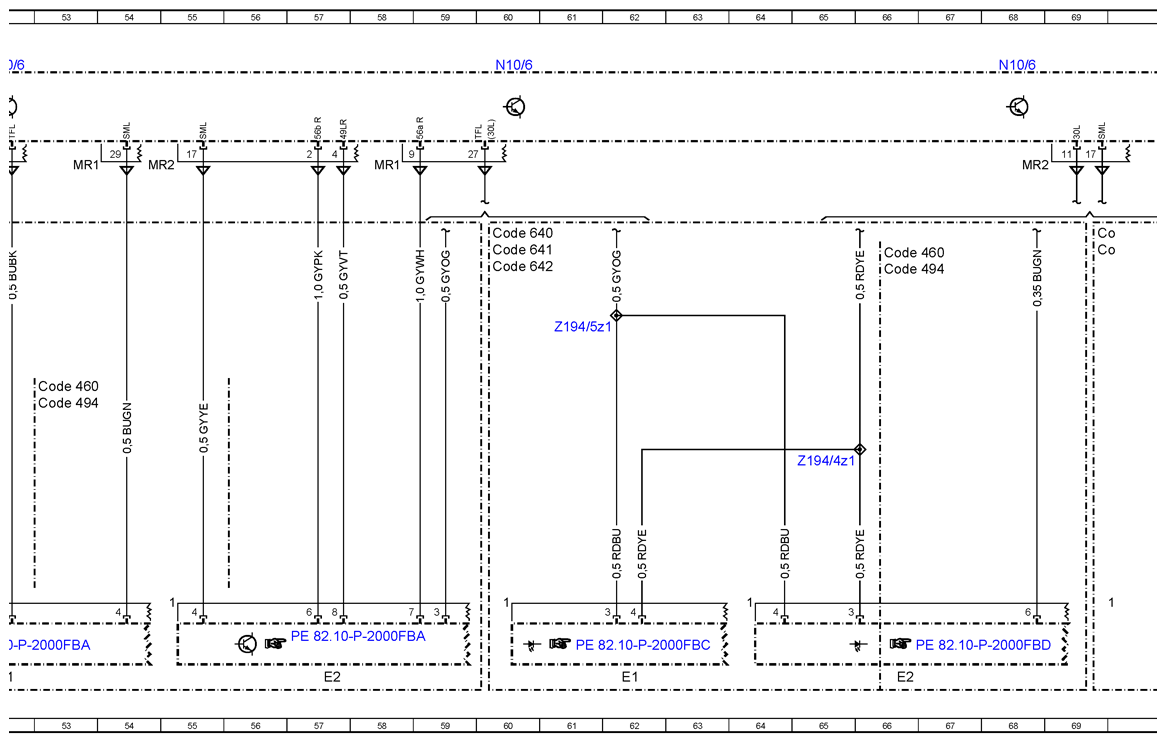

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 129L |
| A70/1 | Analog clock | 30L |
| B14 | Outside temperature sensor | 85L |
| Code 235 | Active Park Assist | 24D |
| Code 235 | Active Park Assist | 26D |
| Code 238 | Active Lane Keeping Assist | 26D |
| Code 238 | Active Lane Keeping Assist | 24D |
| Code 246 | Analog clock | 30D |
| Code 246 | Analog clock | 26D |
| Code 266 | DISTRONIC PLUS TRANSVERSE SUPPORT | 24D |
| Code 266 | DISTRONIC PLUS TRANSVERSE SUPPORT | 26E |
| Code 425 | 6-speed manual transmission | 1D |
| Code 427 | 7G-TRONIC PLUS automatic transmission | 122D |
| Code 460 | Canada version | 53F |
| Code 460 | Canada version | 73D |
| Code 460 | Canada version | 66D |
| Code 463 | Head-up display | 24E |
| Code 463 | Head-up display | 26E |
| Code 476 | Lane Keeping Assist | 26E |
| Code 476 | Lane Keeping Assist | 24E |
| Code 494 | USA version | 53G |
| Code 494 | USA version | 66D |
| Code 494 | USA version | 73D |
| Code 501 | 360 degree camera | 24E |
| Code 501 | 360 degree camera | 26E |
| Code 631 | Static LED headlamp, left-hand traffic | 49D |
| Code 631 | Static LED headlamp, left-hand traffic | 69D |
| Code 632 | Static LED headlamp, right-hand traffic | 49D |
| Code 632 | Static LED headlamp, right-hand traffic | 69D |
| Code 640 | High Performance LED | 49D |
| Code 640 | High Performance LED | 60D |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 49E |
| Code 641 | Dynamic LED headlamps, left-hand traffic | 60D |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 49E |
| Code 642 | Dynamic LED headlamps, right-hand traffic | 60D |
| Code 875 | Heated windshield washer system | 103D |
| Code 876 | Interior lights package | 11D |
| Code 877 | Ambiance illumination | 11D |
| Code 887 | Valet parking | 14D |
| Code F205 | MODEL SERIES 205 | 39D |
| Code F253 | MODEL SERIES 253 | 39D |
| Code F253 | MODEL SERIES 253 | 110E |
| Code FS | STATION WAGON | 40D |
| Code L | LEFT-HAND DRIVE | 42D |
| Code L | LEFT-HAND DRIVE | 92D |
| Code ME04 | Hybrid drive 20 KW VARIANT | 86D |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 86D |
| Code P21 | AIR-BALANCE package | 36D |
| Code R | RIGHT-HAND DRIVE | 42D |
| Code R | RIGHT-HAND DRIVE | 95D |
| Code U63 | Driving school package | 11D |
| E1 | Left front lamp unit | 52L |
| E1 | Left front lamp unit | 62L |
| E1 | Left front lamp unit | 71L |
| E13/1 | Glove box lamp | 37L |
| E13/3 | Stowage compartment illumination | 13L |
| E2 | Right front lamp unit | 66L |
| E2 | Right front lamp unit | 57L |
| E2 | Right front lamp unit | 75L |
| F1/3 | Passenger-side A-pillar fuse box | 20L |
| F1/3f339 | Fuse 339 | 18K |

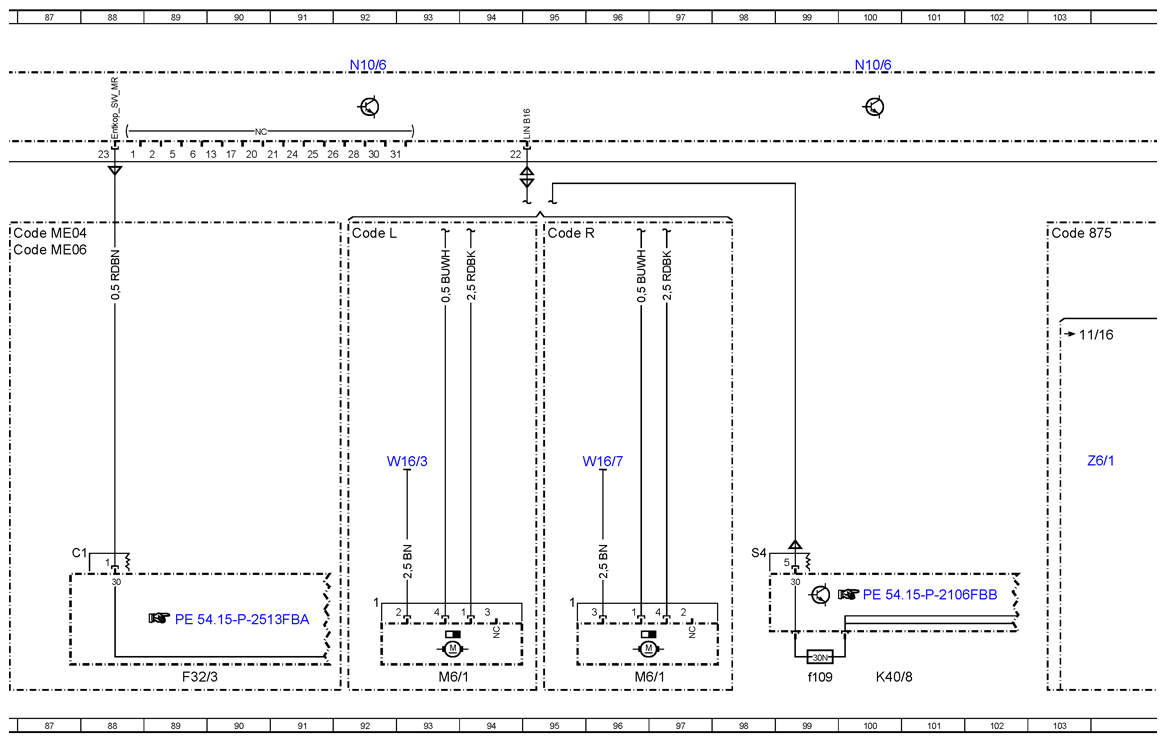

| F32/3 | Engine compartment prefuse box | 89L |
| K40/6 | Driver-side fuse and relay module | 33L |
| K40/6f206 | Fuse 206 | 32L |
| K40/8 | Engine fuse and relay module | 100L |
| K40/8 | Engine fuse and relay module | 121L |
| K40/8f109 | Fuse 109 | 99L |

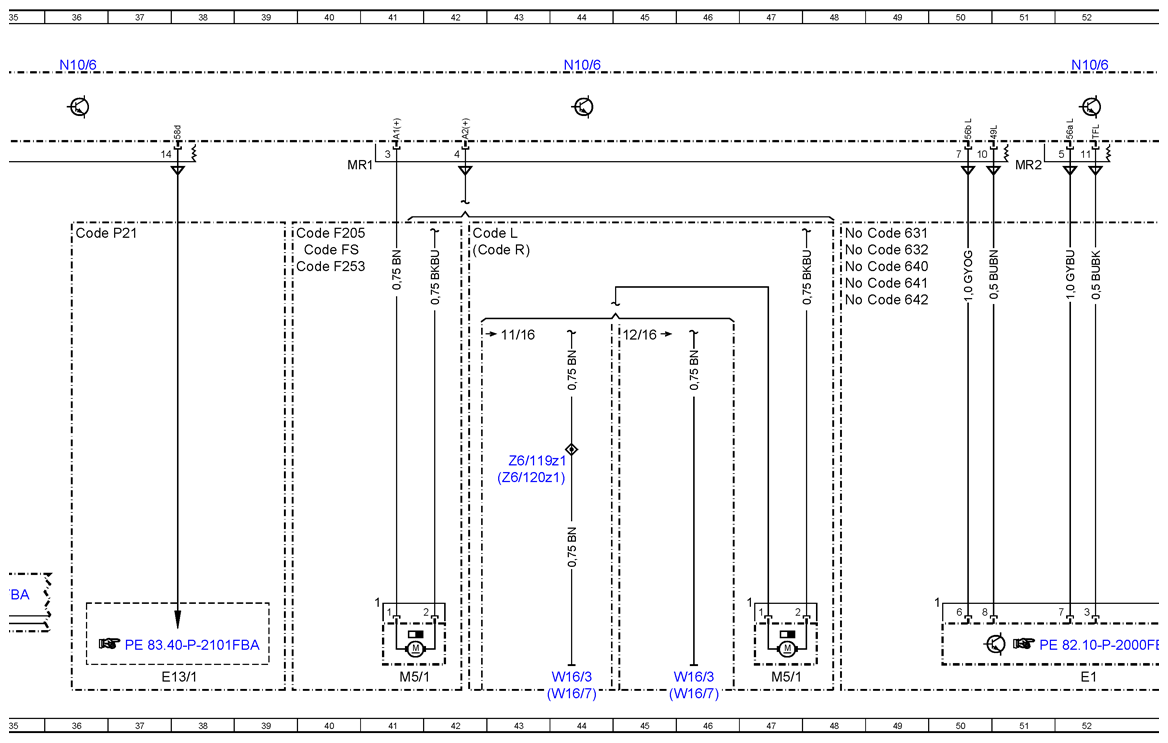

| M5/1 | Windshield washer system pump | 41L |
| M5/1 | Windshield washer system pump | 47L |
| M6/1 | Wiper motor | 93L |
| M6/1 | Wiper motor | 96L |
| N10/6 | Front SAM control unit | 4A |
| N10/6 | Front SAM control unit | 12A |
| N10/6 | Front SAM control unit | 20A |
| N10/6 | Front SAM control unit | 28A |
| N10/6 | Front SAM control unit | 36A |
| N10/6 | Front SAM control unit | 44A |
| N10/6 | Front SAM control unit | 52A |
| N10/6 | Front SAM control unit | 60A |
| N10/6 | Front SAM control unit | 68A |
| N10/6 | Front SAM control unit | 76A |
| N10/6 | Front SAM control unit | 84A |
| N10/6 | Front SAM control unit | 92A |
| N10/6 | Front SAM control unit | 100A |
| N10/6 | Front SAM control unit | 108A |
| N10/6 | Front SAM control unit | 116A |
| N10/6 | Front SAM control unit | 124A |
| N26/5 | Electric steering lock control unit | 3L |
| N30/4 | Electronic Stability Program control unit | 83L |

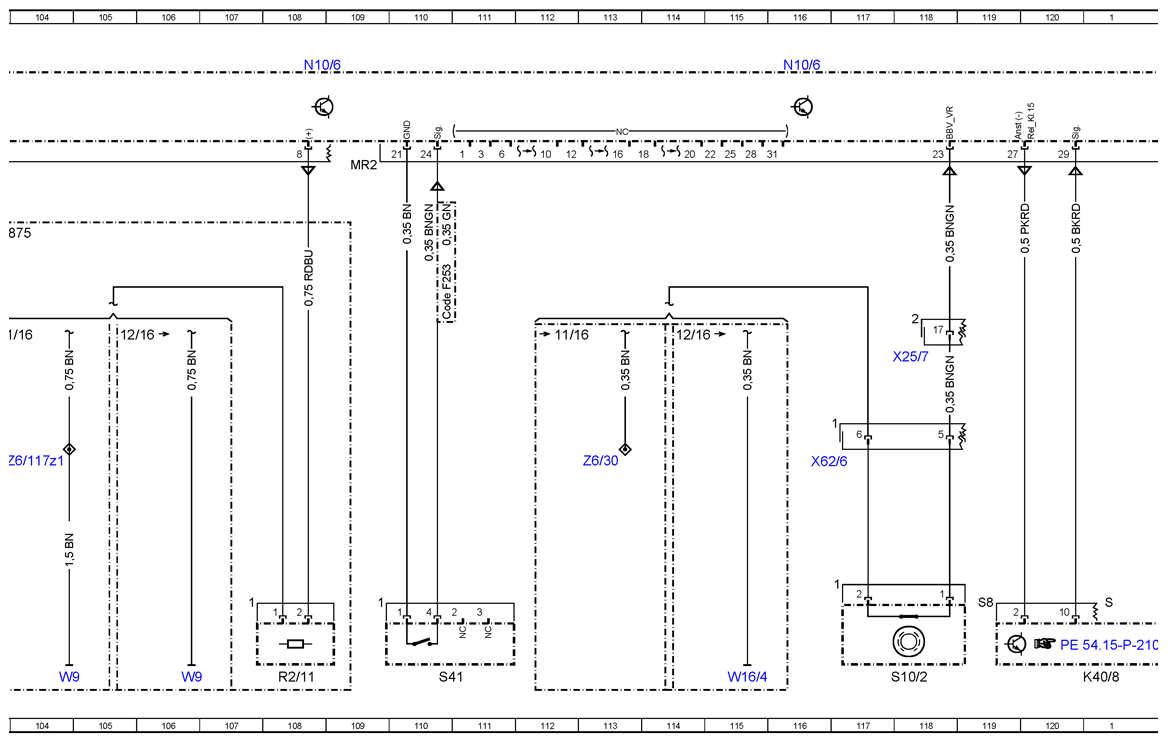

| R2/11 | Spray nozzle hose heater | 108L |

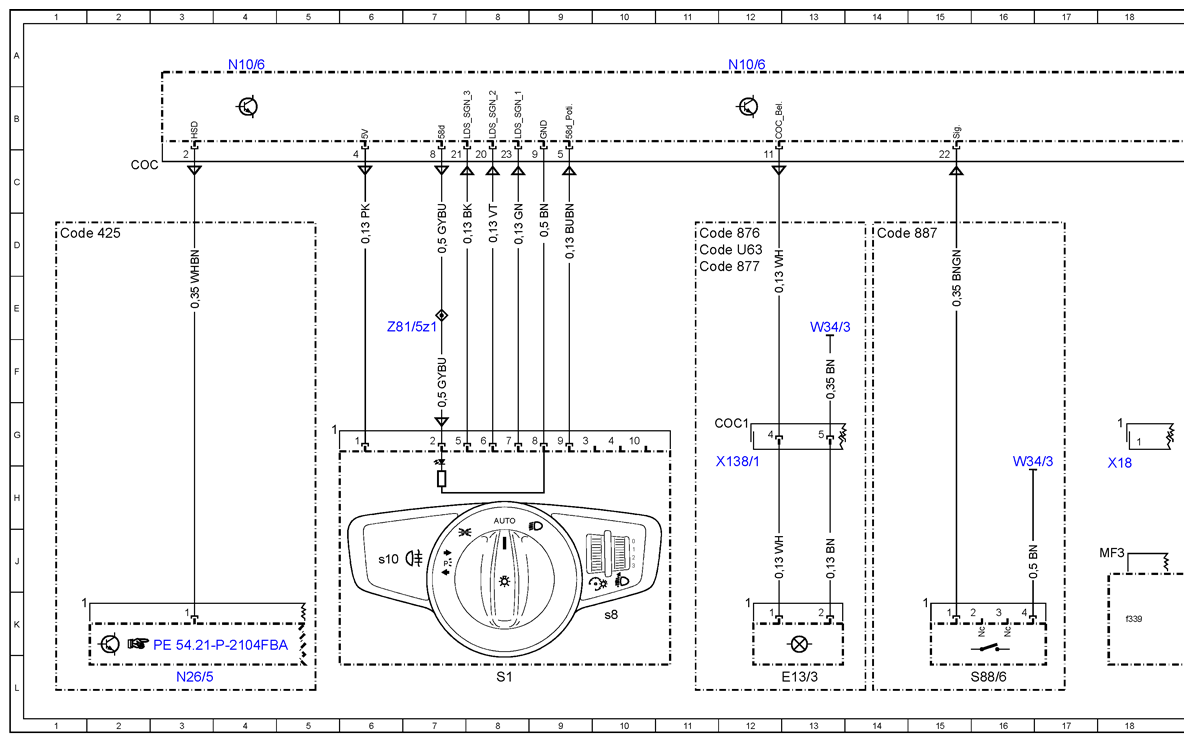

| S1 | Exterior lights switch | 8L |
| S10/2 | Right front brake wear sensor | 118L |
| S11 | Brake fluid level switch | 78L |
| S1s10 | Rear fog light button | 6J |
| S1s8 | Headlamp range controller | 10K |
| S41 | Coolant level switch | 110L |
| S42 | Windshield washer system washer fluid level switch | 80L |
| S6/1 | Driver-side instrument panel button group | 25L |
| S6/1s1 | Steer Assist button | 23K |
| S6/1s2 | Active Lane Keeping Assist button | 24K |
| S6/1s3 | Parking system button | 24K |
| S6/1s4 | 360° camera button | 25K |
| S6/1s6 | Head-up display button | 26K |
| S88/6 | Separate trunk lid lock switch | 16L |
| W16/3 | Left major assembly compartment ground point | 44L |
| W16/3 | Left major assembly compartment ground point | 46L |
| W16/3 | Left major assembly compartment ground point | 93H |
| W16/4 | Right major assembly compartment ground point | 115L |
| W16/7 | Right major assembly compartment electronics ground point | 44L |
| W16/7 | Right major assembly compartment electronics ground point | 46L |
| W16/7 | Right major assembly compartment electronics ground point | 96H |
| W34 | Left footwell ground point | 29H |
| W34/3 | Right footwell ground point | 16H |
| W34/3 | Right footwell ground point | 13E |
| W9 | Left front ground point (at lamp unit) | 106L |
| W9 | Left front ground point (at lamp unit) | 104L |
| X138/1 | Front center console electrical connector | 12H |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 18H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 82H |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 118F |
| X62/6 | Front axle electrical connector, right distributor | 116H |
| Z194/4z1 | Left front lamp unit circuit 30 connector sleeve | 65G |
| Z194/5z1 | Right front lamp unit circuit 30 connector sleeve | 61E |
| Z50/38z1 | Instrument panel LIN connector sleeve | 28E |
| Z6/117z1 | Left front ground point connector sleeve (on lamp unit) | 104G |
| Z6/119z1 | Left engine ground connection connector sleeve | 43G |
| Z6/120z1 | Right engine ground connection connector sleeve | 43H |
| Z6/30 | Circuit 31 connector sleeve | 113G |
| Z81/5z1 | Circuit 58d connector sleeve | 7E |
