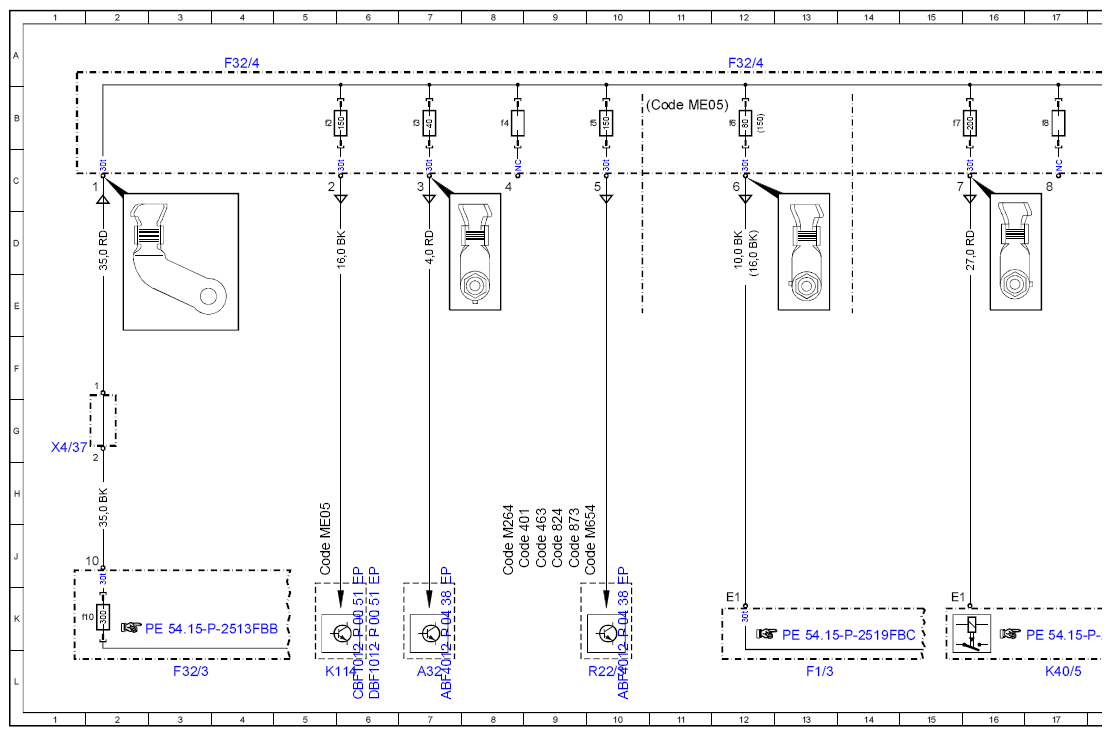

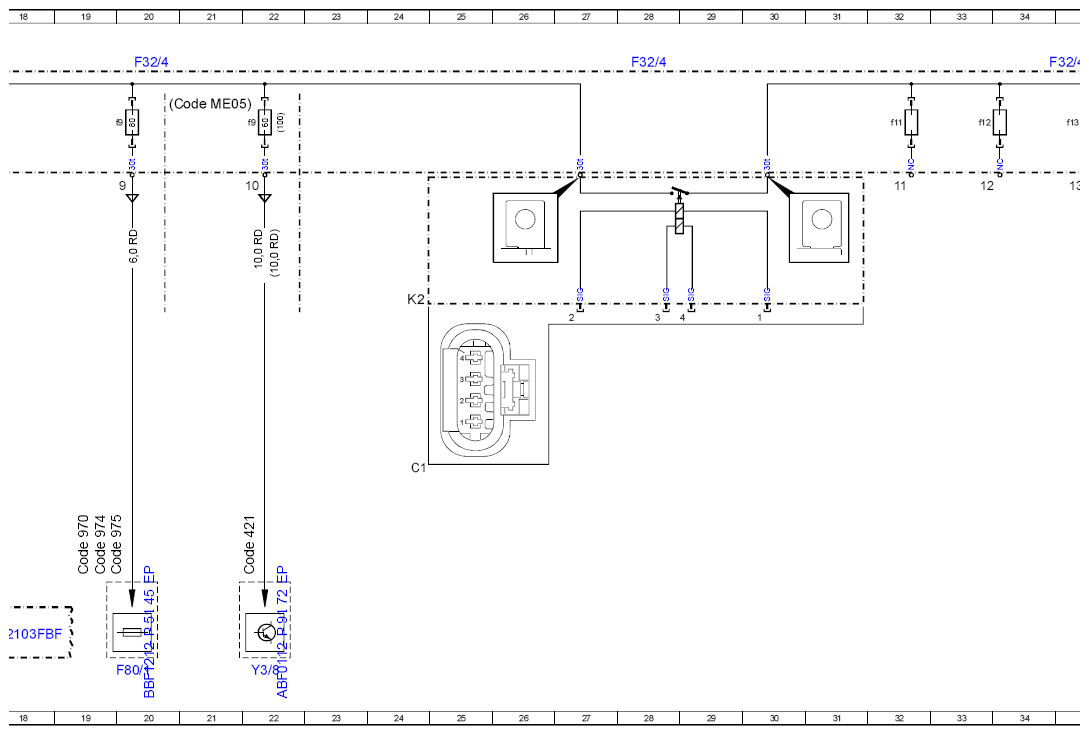

Wiring Diagram, Interior Prefuse Box (F32/4) - PE54.15-P-2514-97FBB
Model 205 as of model year 2019
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 56L |
| A32 | AC housing | 7L |
| Code 401 | Seat climate control for driver and front passenger | 9J |
| Code 421 | 9G-TRONIC | 22J |
| Code 463 | Head-up display | 9J |
| Code 824 | Additional parts for countries with cold temp. | 9J |
| Code 873 | Seat heater for driver and front passenger | 9J |
| Code 970 | Police emergency vehicles | 19J |
| Code 974 | Fire department lead emergency vehicle preinstallation | 19J |
| Code 975 | Emergency physician vehicle preinstallation | 20J |
| Code M264 | SPARK-IGNITION ENGINE M264 | 8J |
| Code M654 | DIESEL ENGINE OM654 | 10J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 5J |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 10B |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 20B |
| F1/3 | Passenger-side A-pillar fuse box | 13L |
| F32/3 | Engine compartment prefuse box | 3L |
| F32/3f10 | Fuse 10 | 1K |

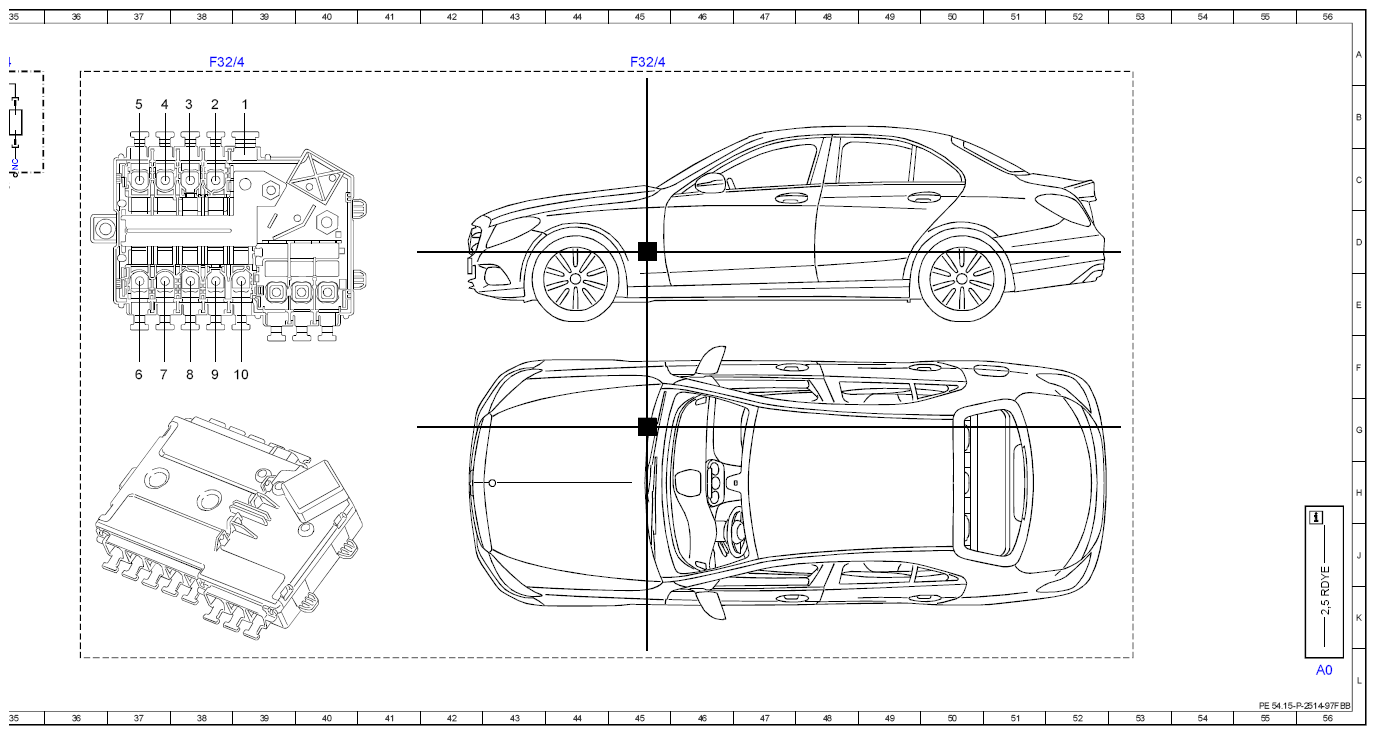

| F32/4 | Vehicle interior prefuse box | 4A |
| F32/4 | Vehicle interior prefuse box | 12A |
| F32/4 | Vehicle interior prefuse box | 20A |
| F32/4 | Vehicle interior prefuse box | 28A |
| F32/4 | Vehicle interior prefuse box | 35A |
| F32/4 | Vehicle interior prefuse box | 38A |
| F32/4 | Vehicle interior prefuse box | 45A |
| F32/4f11 | Fuse 11 | 32B |
| F32/4f12 | Fuse 12 | 33B |
| F32/4f13 | Fuse 13 | 35B |
| F32/4f2 | Fuse 2 | 5B |
| F32/4f3 | Fuse 3 | 7B |
| F32/4f4 | Fuse 4 | 8B |
| F32/4f5 | Fuse 5 | 10B |
| F32/4f6 | Fuse 6 | 12B |
| F32/4f7 | Fuse 7 | 15B |
| F32/4f8 | Fuse 8 | 17B |
| F32/4f9 | Fuse 9 | 19B |
| F32/4f9 | Fuse 9 | 22B |
| F80/1 | Special-purpose vehicle fuse block 1 | 20L |
| K114 | ECO start/stop function additional battery relay | 5L |
| K40/5 | Rear fuse and relay module | 17L |
| R22/3 | PTC heater booster | 10L |
| X4/37 | Terminal block (circuit 30) | 1G |
| Y3/8 | Fully integrated transmission control, control unit | 22L |
