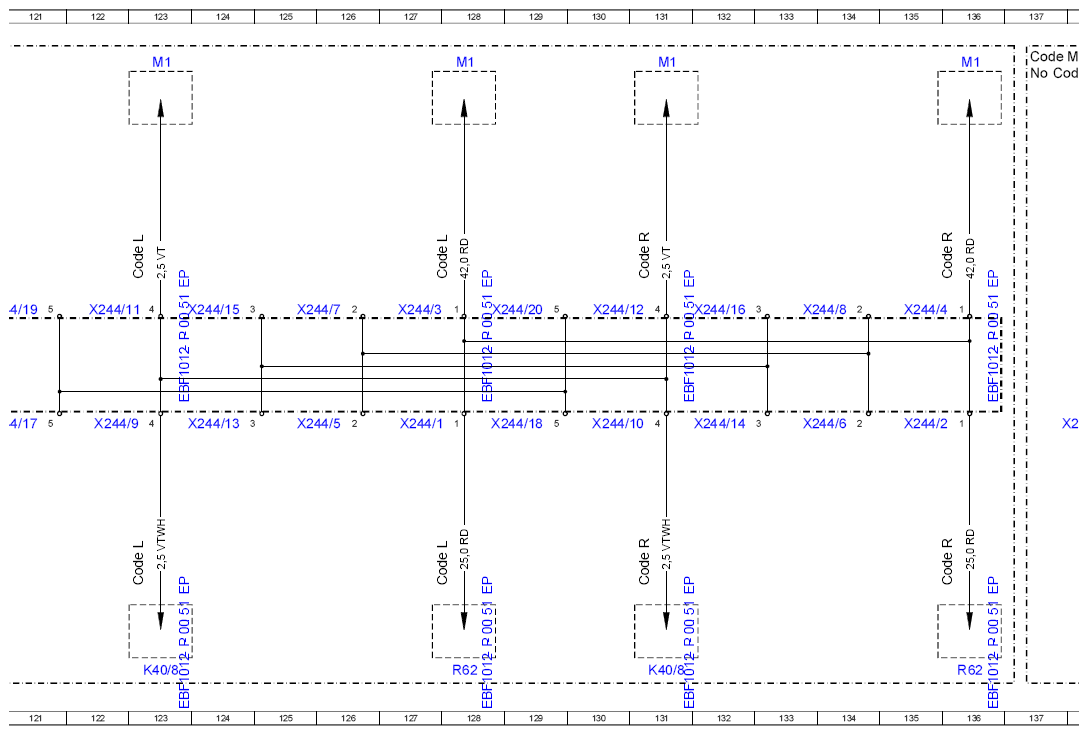

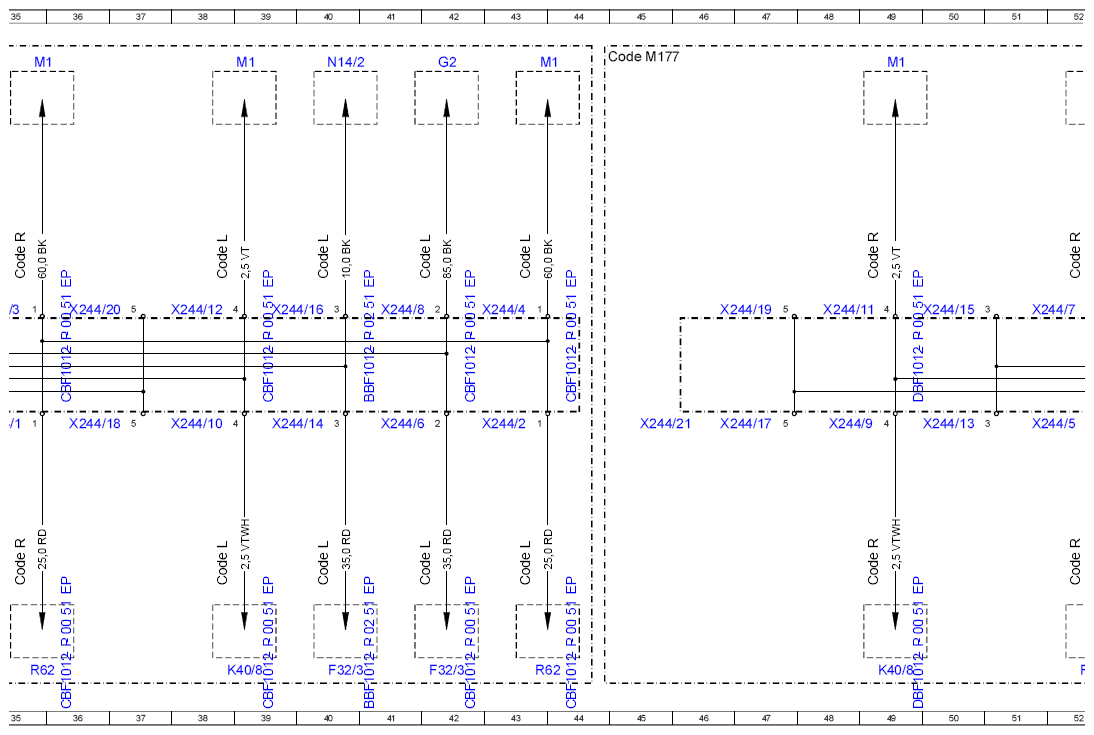

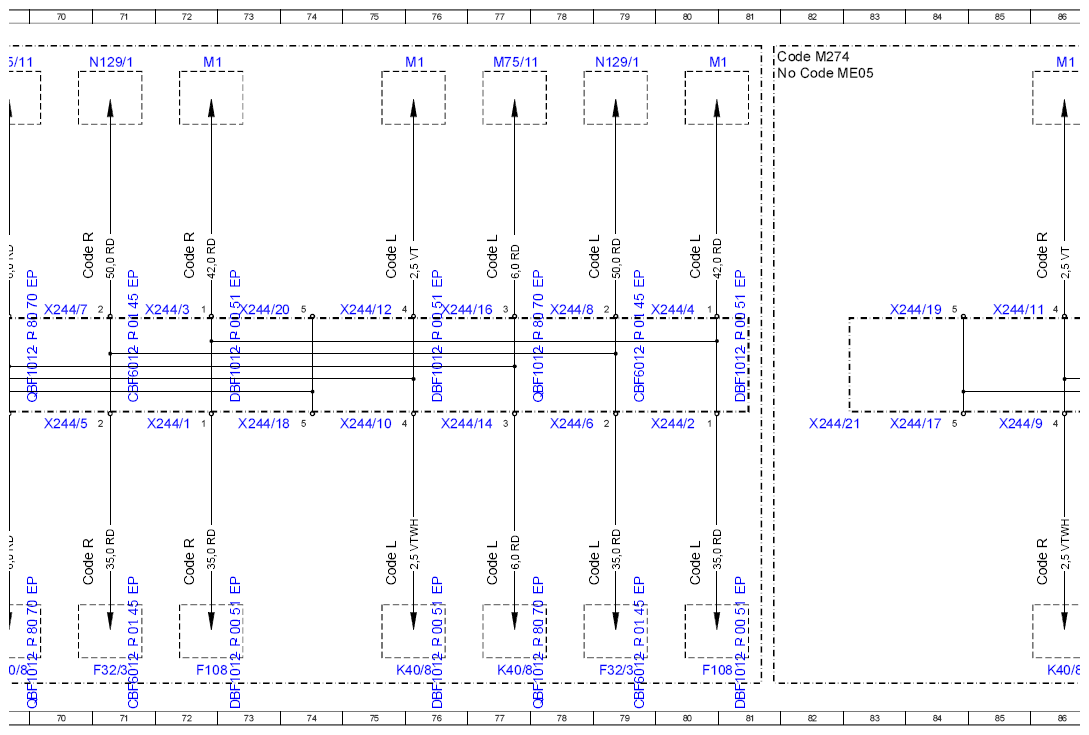

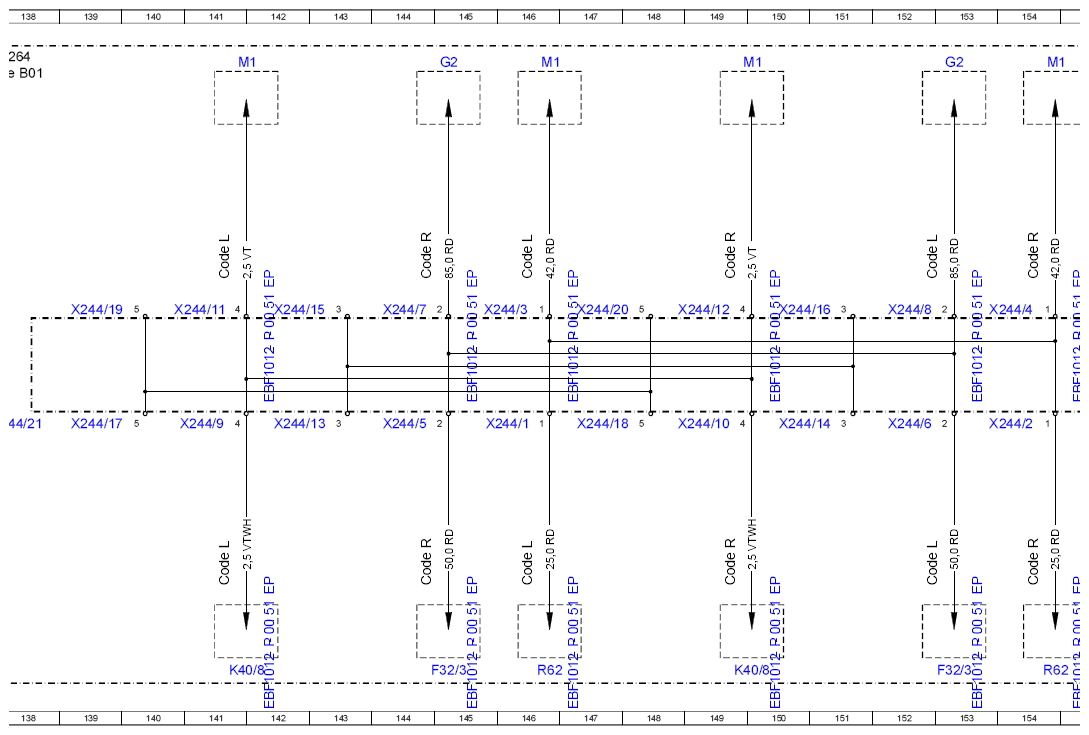

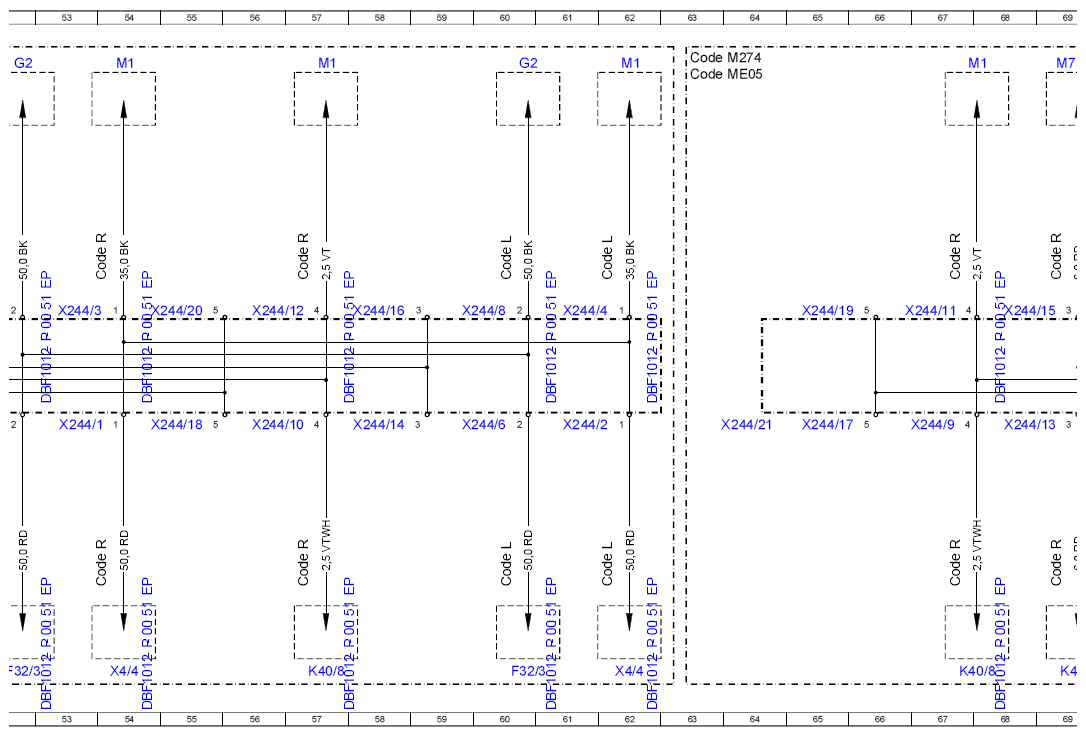

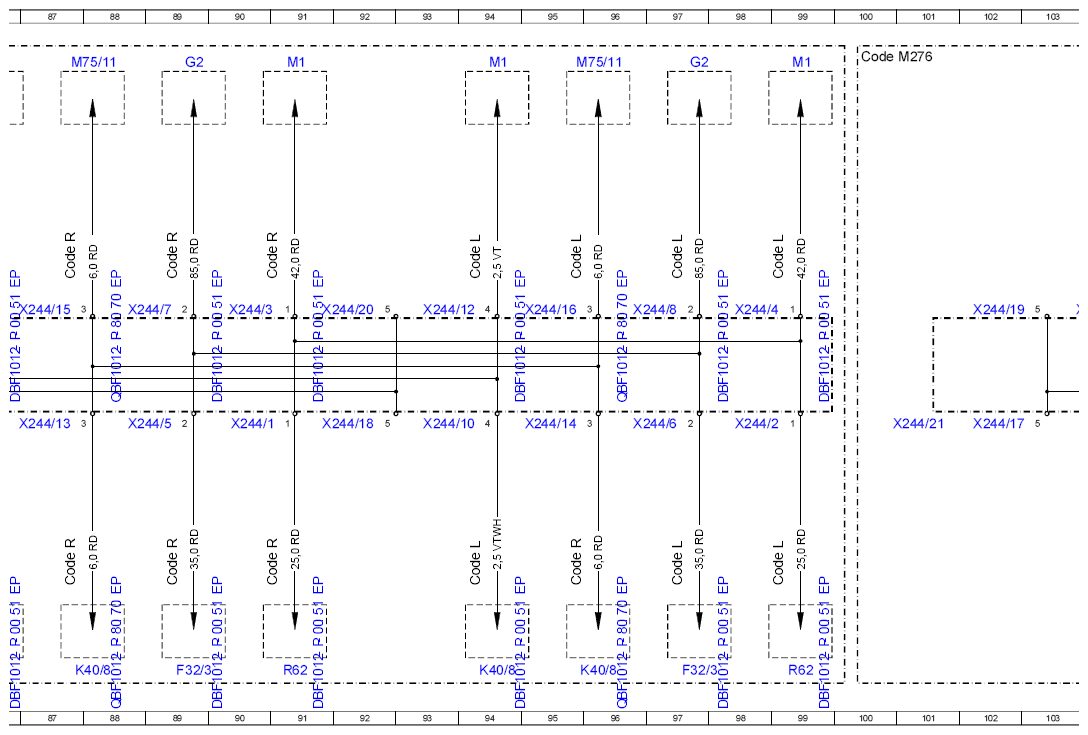

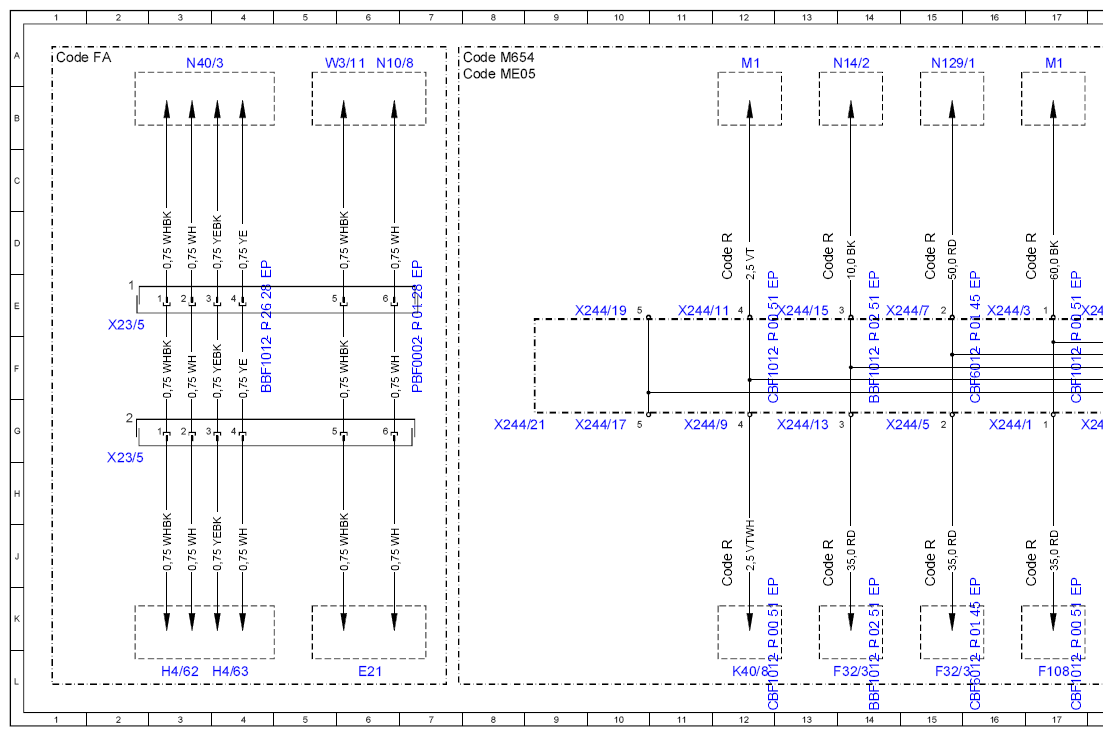

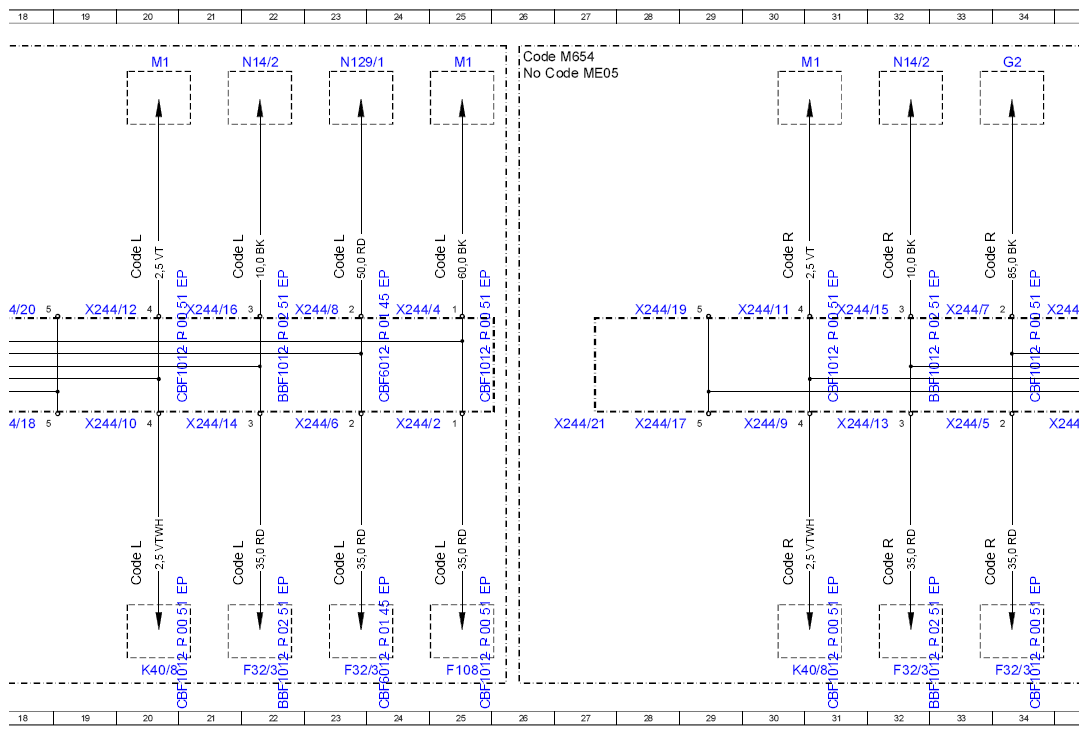

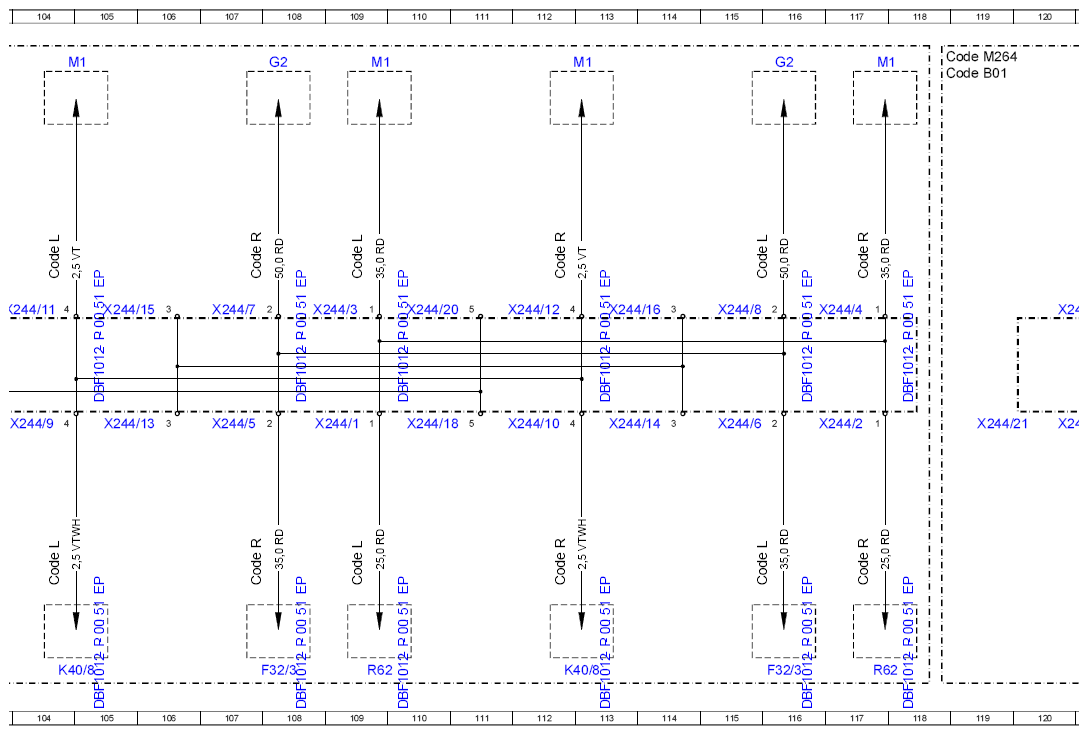

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBP
Model 205 as of model year 2019 X244/21, X23/5
| Code: | Designation: | Position: |
|---|---|---|

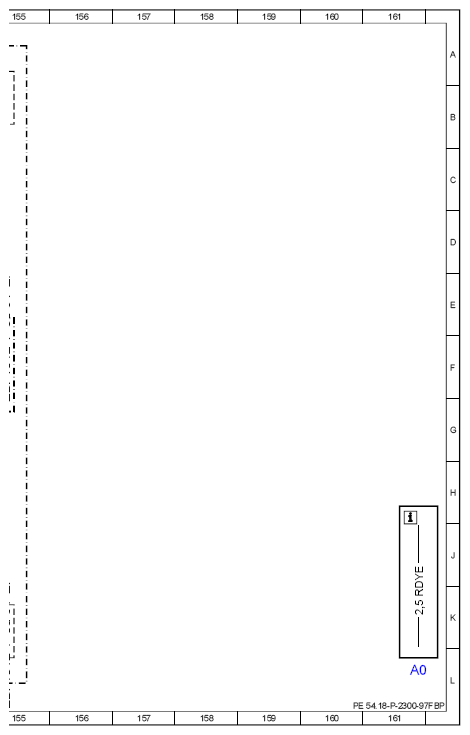

| A0 | Use of wiring diagrams | 161L |
| Code B01 | 48V technology | 118A |
| Code B01 | 48V technology | 137A |
| Code FA | CABRIOLET | 1A |
| Code L | LEFT-HAND DRIVE | 22J |
| Code L | LEFT-HAND DRIVE | 20J |
| Code L | LEFT-HAND DRIVE | 23J |
| Code L | LEFT-HAND DRIVE | 25J |
| Code L | LEFT-HAND DRIVE | 40J |
| Code L | LEFT-HAND DRIVE | 42J |
| Code L | LEFT-HAND DRIVE | 38J |
| Code L | LEFT-HAND DRIVE | 43J |
| Code L | LEFT-HAND DRIVE | 60J |
| Code L | LEFT-HAND DRIVE | 62J |
| Code L | LEFT-HAND DRIVE | 80J |
| Code L | LEFT-HAND DRIVE | 77J |
| Code L | LEFT-HAND DRIVE | 75J |
| Code L | LEFT-HAND DRIVE | 79J |
| Code L | LEFT-HAND DRIVE | 22E |
| Code L | LEFT-HAND DRIVE | 20E |
| Code L | LEFT-HAND DRIVE | 23E |
| Code L | LEFT-HAND DRIVE | 25E |
| Code L | LEFT-HAND DRIVE | 40E |
| Code L | LEFT-HAND DRIVE | 42E |
| Code L | LEFT-HAND DRIVE | 38E |
| Code L | LEFT-HAND DRIVE | 43E |
| Code L | LEFT-HAND DRIVE | 60E |
| Code L | LEFT-HAND DRIVE | 80E |
| Code L | LEFT-HAND DRIVE | 77E |
| Code L | LEFT-HAND DRIVE | 75E |
| Code L | LEFT-HAND DRIVE | 79E |
| Code L | LEFT-HAND DRIVE | 62E |
| Code L | LEFT-HAND DRIVE | 94J |
| Code L | LEFT-HAND DRIVE | 97J |
| Code L | LEFT-HAND DRIVE | 99J |
| Code L | LEFT-HAND DRIVE | 104J |
| Code L | LEFT-HAND DRIVE | 109J |
| Code L | LEFT-HAND DRIVE | 116J |
| Code L | LEFT-HAND DRIVE | 128J |
| Code L | LEFT-HAND DRIVE | 123J |
| Code L | LEFT-HAND DRIVE | 141J |
| Code L | LEFT-HAND DRIVE | 146J |
| Code L | LEFT-HAND DRIVE | 153J |
| Code L | LEFT-HAND DRIVE | 95E |
| Code L | LEFT-HAND DRIVE | 97E |
| Code L | LEFT-HAND DRIVE | 94E |
| Code L | LEFT-HAND DRIVE | 99E |
| Code L | LEFT-HAND DRIVE | 104E |
| Code L | LEFT-HAND DRIVE | 109E |
| Code L | LEFT-HAND DRIVE | 116E |
| Code L | LEFT-HAND DRIVE | 128E |
| Code L | LEFT-HAND DRIVE | 123E |
| Code L | LEFT-HAND DRIVE | 141E |
| Code L | LEFT-HAND DRIVE | 153E |
| Code L | LEFT-HAND DRIVE | 146E |
| Code M177 | SPARK-IGNITION ENGINE M177 | 44A |
| Code M264 | SPARK-IGNITION ENGINE M264 | 118A |
| Code M264 | SPARK-IGNITION ENGINE M264 | 137A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 81A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 63A |
| Code M276 | SPARK-IGNITION ENGINE M276 | 100A |
| Code M654 | DIESEL ENGINE OM654 | 8A |
| Code M654 | DIESEL ENGINE OM654 | 26A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 8A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 26A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 63A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 82A |
| Code R | RIGHT-HAND DRIVE | 13J |
| Code R | RIGHT-HAND DRIVE | 12J |
| Code R | RIGHT-HAND DRIVE | 15J |
| Code R | RIGHT-HAND DRIVE | 17J |
| Code R | RIGHT-HAND DRIVE | 30J |
| Code R | RIGHT-HAND DRIVE | 32J |
| Code R | RIGHT-HAND DRIVE | 34J |
| Code R | RIGHT-HAND DRIVE | 35J |
| Code R | RIGHT-HAND DRIVE | 49J |
| Code R | RIGHT-HAND DRIVE | 52J |
| Code R | RIGHT-HAND DRIVE | 54J |
| Code R | RIGHT-HAND DRIVE | 69J |
| Code R | RIGHT-HAND DRIVE | 57J |
| Code R | RIGHT-HAND DRIVE | 67J |
| Code R | RIGHT-HAND DRIVE | 71J |
| Code R | RIGHT-HAND DRIVE | 72J |
| Code R | RIGHT-HAND DRIVE | 13E |
| Code R | RIGHT-HAND DRIVE | 15E |
| Code R | RIGHT-HAND DRIVE | 17E |
| Code R | RIGHT-HAND DRIVE | 12E |
| Code R | RIGHT-HAND DRIVE | 30E |
| Code R | RIGHT-HAND DRIVE | 32E |
| Code R | RIGHT-HAND DRIVE | 34E |
| Code R | RIGHT-HAND DRIVE | 35E |
| Code R | RIGHT-HAND DRIVE | 49E |
| Code R | RIGHT-HAND DRIVE | 52E |
| Code R | RIGHT-HAND DRIVE | 54E |
| Code R | RIGHT-HAND DRIVE | 57E |
| Code R | RIGHT-HAND DRIVE | 69E |
| Code R | RIGHT-HAND DRIVE | 72E |
| Code R | RIGHT-HAND DRIVE | 67E |
| Code R | RIGHT-HAND DRIVE | 71E |
| Code R | RIGHT-HAND DRIVE | 87J |
| Code R | RIGHT-HAND DRIVE | 86J |
| Code R | RIGHT-HAND DRIVE | 89J |
| Code R | RIGHT-HAND DRIVE | 91J |
| Code R | RIGHT-HAND DRIVE | 95J |
| Code R | RIGHT-HAND DRIVE | 107J |
| Code R | RIGHT-HAND DRIVE | 117J |
| Code R | RIGHT-HAND DRIVE | 112J |
| Code R | RIGHT-HAND DRIVE | 131J |
| Code R | RIGHT-HAND DRIVE | 136J |
| Code R | RIGHT-HAND DRIVE | 144J |
| Code R | RIGHT-HAND DRIVE | 149J |
| Code R | RIGHT-HAND DRIVE | 154J |
| Code R | RIGHT-HAND DRIVE | 87E |
| Code R | RIGHT-HAND DRIVE | 91E |
| Code R | RIGHT-HAND DRIVE | 89E |
| Code R | RIGHT-HAND DRIVE | 86E |
| Code R | RIGHT-HAND DRIVE | 117E |
| Code R | RIGHT-HAND DRIVE | 112E |
| Code R | RIGHT-HAND DRIVE | 107E |
| Code R | RIGHT-HAND DRIVE | 131E |
| Code R | RIGHT-HAND DRIVE | 136E |
| Code R | RIGHT-HAND DRIVE | 144E |
| Code R | RIGHT-HAND DRIVE | 149E |
| Code R | RIGHT-HAND DRIVE | 154E |
| E21 | Center stop lamp | 6L |
| F108 | Battery clamp fuse | 17L |
| F108 | Battery clamp fuse | 25L |
| F108 | Battery clamp fuse | 72L |
| F108 | Battery clamp fuse | 80L |
| F32/3 | Engine compartment prefuse box | 14L |
| F32/3 | Engine compartment prefuse box | 15L |
| F32/3 | Engine compartment prefuse box | 22L |
| F32/3 | Engine compartment prefuse box | 23L |
| F32/3 | Engine compartment prefuse box | 42L |
| F32/3 | Engine compartment prefuse box | 32L |
| F32/3 | Engine compartment prefuse box | 40L |
| F32/3 | Engine compartment prefuse box | 34L |
| F32/3 | Engine compartment prefuse box | 52L |
| F32/3 | Engine compartment prefuse box | 60L |
| F32/3 | Engine compartment prefuse box | 71L |
| F32/3 | Engine compartment prefuse box | 79L |
| F32/3 | Engine compartment prefuse box | 89L |
| F32/3 | Engine compartment prefuse box | 97L |
| F32/3 | Engine compartment prefuse box | 108L |
| F32/3 | Engine compartment prefuse box | 116L |
| F32/3 | Engine compartment prefuse box | 145L |
| F32/3 | Engine compartment prefuse box | 153L |
| G2 | Alternator | 34A |
| G2 | Alternator | 42A |
| G2 | Alternator | 52A |
| G2 | Alternator | 60A |
| G2 | Alternator | 89A |
| G2 | Alternator | 97A |
| G2 | Alternator | 108A |
| G2 | Alternator | 116A |
| G2 | Alternator | 145A |
| G2 | Alternator | 153A |
| H4/62 | Left rear surround sound system midrange speaker | 3L |
| H4/63 | Right rear surround sound system midrange speaker | 4L |
| K40/8 | Engine fuse and relay module | 30L |
| K40/8 | Engine fuse and relay module | 12L |
| K40/8 | Engine fuse and relay module | 20L |
| K40/8 | Engine fuse and relay module | 39L |
| K40/8 | Engine fuse and relay module | 49L |
| K40/8 | Engine fuse and relay module | 57L |
| K40/8 | Engine fuse and relay module | 67L |
| K40/8 | Engine fuse and relay module | 69L |
| K40/8 | Engine fuse and relay module | 77L |
| K40/8 | Engine fuse and relay module | 75L |
| K40/8 | Engine fuse and relay module | 94L |
| K40/8 | Engine fuse and relay module | 88L |
| K40/8 | Engine fuse and relay module | 86L |
| K40/8 | Engine fuse and relay module | 96L |
| K40/8 | Engine fuse and relay module | 104L |
| K40/8 | Engine fuse and relay module | 112L |
| K40/8 | Engine fuse and relay module | 123L |
| K40/8 | Engine fuse and relay module | 131L |
| K40/8 | Engine fuse and relay module | 141L |
| K40/8 | Engine fuse and relay module | 149L |
| M1 | Starter | 31A |
| M1 | Starter | 12A |
| M1 | Starter | 17A |
| M1 | Starter | 20A |
| M1 | Starter | 25A |
| M1 | Starter | 35A |
| M1 | Starter | 39A |
| M1 | Starter | 43A |
| M1 | Starter | 49A |
| M1 | Starter | 54A |
| M1 | Starter | 57A |
| M1 | Starter | 62A |
| M1 | Starter | 67A |
| M1 | Starter | 72A |
| M1 | Starter | 76A |
| M1 | Starter | 80A |
| M1 | Starter | 94A |
| M1 | Starter | 86A |
| M1 | Starter | 91A |
| M1 | Starter | 99A |
| M1 | Starter | 104A |
| M1 | Starter | 109A |
| M1 | Starter | 113A |
| M1 | Starter | 117A |
| M1 | Starter | 123A |
| M1 | Starter | 128A |
| M1 | Starter | 131A |
| M1 | Starter | 136A |
| M1 | Starter | 141A |
| M1 | Starter | 146A |
| M1 | Starter | 150A |
| M1 | Starter | 154A |
| M75/11 | Electric coolant pump | 69A |
| M75/11 | Electric coolant pump | 77A |
| M75/11 | Electric coolant pump | 87A |
| M75/11 | Electric coolant pump | 96A |
| N10/8 | Rear SAM control unit | 6A |
| N129/1 | Power electronics control unit | 15A |
| N129/1 | Power electronics control unit | 23A |
| N129/1 | Power electronics control unit | 71A |
| N129/1 | Power electronics control unit | 79A |
| N14/2 | Glow output stage | 14A |
| N14/2 | Glow output stage | 22A |
| N14/2 | Glow output stage | 32A |
| N14/2 | Glow output stage | 40A |
| N40/3 | Sound system amplifier control unit | 3A |
| R62 | Voltage dip limiter | 35L |
| R62 | Voltage dip limiter | 43L |
| R62 | Voltage dip limiter | 91L |
| R62 | Voltage dip limiter | 99L |
| R62 | Voltage dip limiter | 109L |
| R62 | Voltage dip limiter | 117L |
| R62 | Voltage dip limiter | 128L |
| R62 | Voltage dip limiter | 136L |
| R62 | Voltage dip limiter | 146L |
| R62 | Voltage dip limiter | 154L |
| W3/11 | Left rear wheel well ground point | 5A |
| X23/5 | Electrical connector/soft top compartment lid | 2H |
| X23/5 | Electrical connector/soft top compartment lid | 2E |
| X244/1 | Firewall through-hole plating electrical connector | 16G |
| X244/1 | Firewall through-hole plating electrical connector | 35G |
| X244/1 | Firewall through-hole plating electrical connector | 53G |
| X244/1 | Firewall through-hole plating electrical connector | 72G |
| X244/1 | Firewall through-hole plating electrical connector | 90G |
| X244/1 | Firewall through-hole plating electrical connector | 109G |
| X244/1 | Firewall through-hole plating electrical connector | 127G |
| X244/1 | Firewall through-hole plating electrical connector | 146G |
| X244/10 | Right vehicle-end busbar stud 4 | 19G |
| X244/10 | Right vehicle-end busbar stud 4 | 56G |
| X244/10 | Right vehicle-end busbar stud 4 | 38G |
| X244/10 | Right vehicle-end busbar stud 4 | 75G |
| X244/10 | Right vehicle-end busbar stud 4 | 93G |
| X244/10 | Right vehicle-end busbar stud 4 | 112G |
| X244/10 | Right vehicle-end busbar stud 4 | 130G |
| X244/10 | Right vehicle-end busbar stud 4 | 149G |
| X244/11 | Left engine-end busbar stud 4 | 11E |
| X244/11 | Left engine-end busbar stud 4 | 30E |
| X244/11 | Left engine-end busbar stud 4 | 48E |
| X244/11 | Left engine-end busbar stud 4 | 67E |
| X244/11 | Left engine-end busbar stud 4 | 85E |
| X244/11 | Left engine-end busbar stud 4 | 104E |
| X244/11 | Left engine-end busbar stud 4 | 122E |
| X244/11 | Left engine-end busbar stud 4 | 141E |
| X244/12 | Right engine-end busbar stud 4 | 19E |
| X244/12 | Right engine-end busbar stud 4 | 56E |
| X244/12 | Right engine-end busbar stud 4 | 38E |
| X244/12 | Right engine-end busbar stud 4 | 75E |
| X244/12 | Right engine-end busbar stud 4 | 93E |
| X244/12 | Right engine-end busbar stud 4 | 112E |
| X244/12 | Right engine-end busbar stud 4 | 130E |
| X244/12 | Right engine-end busbar stud 4 | 149E |
| X244/13 | Left vehicle-end busbar stud 3 | 13G |
| X244/13 | Left vehicle-end busbar stud 3 | 31G |
| X244/13 | Left vehicle-end busbar stud 3 | 50G |
| X244/13 | Left vehicle-end busbar stud 3 | 68G |
| X244/13 | Left vehicle-end busbar stud 3 | 87G |
| X244/13 | Left vehicle-end busbar stud 3 | 105G |
| X244/13 | Left vehicle-end busbar stud 3 | 124G |
| X244/13 | Left vehicle-end busbar stud 3 | 142G |
| X244/14 | Right vehicle-end busbar stud 3 | 21G |
| X244/14 | Right vehicle-end busbar stud 3 | 40G |
| X244/14 | Right vehicle-end busbar stud 3 | 58G |
| X244/14 | Right vehicle-end busbar stud 3 | 77G |
| X244/14 | Right vehicle-end busbar stud 3 | 95G |
| X244/14 | Right vehicle-end busbar stud 3 | 113G |
| X244/14 | Right vehicle-end busbar stud 3 | 132G |
| X244/14 | Right vehicle-end busbar stud 3 | 150G |
| X244/15 | Left engine-end busbar stud 3 | 13E |
| X244/15 | Left engine-end busbar stud 3 | 31E |
| X244/15 | Left engine-end busbar stud 3 | 50E |
| X244/15 | Left engine-end busbar stud 3 | 68E |
| X244/15 | Left engine-end busbar stud 3 | 87E |
| X244/15 | Left engine-end busbar stud 3 | 105E |
| X244/15 | Left engine-end busbar stud 3 | 124E |
| X244/15 | Left engine-end busbar stud 3 | 142E |
| X244/16 | Right engine-end busbar stud 3 | 21E |
| X244/16 | Right engine-end busbar stud 3 | 40E |
| X244/16 | Right engine-end busbar stud 3 | 58E |
| X244/16 | Right engine-end busbar stud 3 | 77E |
| X244/16 | Right engine-end busbar stud 3 | 95E |
| X244/16 | Right engine-end busbar stud 3 | 113E |
| X244/16 | Right engine-end busbar stud 3 | 132E |
| X244/16 | Right engine-end busbar stud 3 | 150E |
| X244/17 | Left vehicle-end busbar stud 5 | 10G |
| X244/17 | Left vehicle-end busbar stud 5 | 28G |
| X244/17 | Left vehicle-end busbar stud 5 | 47G |
| X244/17 | Left vehicle-end busbar stud 5 | 65G |
| X244/17 | Left vehicle-end busbar stud 5 | 84G |
| X244/17 | Left vehicle-end busbar stud 5 | 102G |
| X244/17 | Left vehicle-end busbar stud 5 | 121G |
| X244/17 | Left vehicle-end busbar stud 5 | 139G |
| X244/18 | Right vehicle-end busbar stud 5 | 18G |
| X244/18 | Right vehicle-end busbar stud 5 | 36G |
| X244/18 | Right vehicle-end busbar stud 5 | 55G |
| X244/18 | Right vehicle-end busbar stud 5 | 73G |
| X244/18 | Right vehicle-end busbar stud 5 | 92G |
| X244/18 | Right vehicle-end busbar stud 5 | 110G |
| X244/18 | Right vehicle-end busbar stud 5 | 129G |
| X244/18 | Right vehicle-end busbar stud 5 | 147G |
| X244/19 | Left engine-end busbar stud 5 | 10E |
| X244/19 | Left engine-end busbar stud 5 | 28E |
| X244/19 | Left engine-end busbar stud 5 | 47E |
| X244/19 | Left engine-end busbar stud 5 | 65E |
| X244/19 | Left engine-end busbar stud 5 | 84E |
| X244/19 | Left engine-end busbar stud 5 | 102E |
| X244/19 | Left engine-end busbar stud 5 | 121E |
| X244/19 | Left engine-end busbar stud 5 | 139E |
| X244/2 | Right vehicle-end busbar stud 1 | 24G |
| X244/2 | Right vehicle-end busbar stud 1 | 43G |
| X244/2 | Right vehicle-end busbar stud 1 | 61G |
| X244/2 | Right vehicle-end busbar stud 1 | 80G |
| X244/2 | Right vehicle-end busbar stud 1 | 98G |
| X244/2 | Right vehicle-end busbar stud 1 | 117G |
| X244/2 | Right vehicle-end busbar stud 1 | 135G |
| X244/2 | Right vehicle-end busbar stud 1 | 154G |
| X244/20 | Right engine-end busbar stud 5 | 18E |
| X244/20 | Right engine-end busbar stud 5 | 36E |
| X244/20 | Right engine-end busbar stud 5 | 55E |
| X244/20 | Right engine-end busbar stud 5 | 73E |
| X244/20 | Right engine-end busbar stud 5 | 92E |
| X244/20 | Right engine-end busbar stud 5 | 110E |
| X244/20 | Right engine-end busbar stud 5 | 129E |
| X244/20 | Right engine-end busbar stud 5 | 147E |
| X244/21 | Partition wall busbar | 8G |
| X244/21 | Partition wall busbar | 27G |
| X244/21 | Partition wall busbar | 45G |
| X244/21 | Partition wall busbar | 64G |
| X244/21 | Partition wall busbar | 82G |
| X244/21 | Partition wall busbar | 101G |
| X244/21 | Partition wall busbar | 119G |
| X244/21 | Partition wall busbar | 138G |
| X244/3 | Left engine-end busbar stud 1 | 16E |
| X244/3 | Left engine-end busbar stud 1 | 35E |
| X244/3 | Left engine-end busbar stud 1 | 53E |
| X244/3 | Left engine-end busbar stud 1 | 72E |
| X244/3 | Left engine-end busbar stud 1 | 90E |
| X244/3 | Left engine-end busbar stud 1 | 109E |
| X244/3 | Left engine-end busbar stud 1 | 127E |
| X244/3 | Left engine-end busbar stud 1 | 146E |
| X244/4 | Right engine-end busbar stud 1 | 24E |
| X244/4 | Right engine-end busbar stud 1 | 43E |
| X244/4 | Right engine-end busbar stud 1 | 61E |
| X244/4 | Right engine-end busbar stud 1 | 80E |
| X244/4 | Right engine-end busbar stud 1 | 98E |
| X244/4 | Right engine-end busbar stud 1 | 117E |
| X244/4 | Right engine-end busbar stud 1 | 135E |
| X244/4 | Right engine-end busbar stud 1 | 154E |
| X244/5 | Left vehicle-end busbar stud 2 | 15G |
| X244/5 | Left vehicle-end busbar stud 2 | 33G |
| X244/5 | Left vehicle-end busbar stud 2 | 52G |
| X244/5 | Left vehicle-end busbar stud 2 | 70G |
| X244/5 | Left vehicle-end busbar stud 2 | 107G |
| X244/5 | Left vehicle-end busbar stud 2 | 89G |
| X244/5 | Left vehicle-end busbar stud 2 | 126G |
| X244/5 | Left vehicle-end busbar stud 2 | 144G |
| X244/6 | Right vehicle-end busbar stud 2 | 23G |
| X244/6 | Right vehicle-end busbar stud 2 | 41G |
| X244/6 | Right vehicle-end busbar stud 2 | 60G |
| X244/6 | Right vehicle-end busbar stud 2 | 78G |
| X244/6 | Right vehicle-end busbar stud 2 | 97G |
| X244/6 | Right vehicle-end busbar stud 2 | 115G |
| X244/6 | Right vehicle-end busbar stud 2 | 134G |
| X244/6 | Right vehicle-end busbar stud 2 | 152G |
| X244/7 | Left engine-end busbar stud 2 | 15E |
| X244/7 | Left engine-end busbar stud 2 | 33E |
| X244/7 | Left engine-end busbar stud 2 | 52E |
| X244/7 | Left engine-end busbar stud 2 | 70E |
| X244/7 | Left engine-end busbar stud 2 | 107E |
| X244/7 | Left engine-end busbar stud 2 | 89E |
| X244/7 | Left engine-end busbar stud 2 | 126E |
| X244/7 | Left engine-end busbar stud 2 | 144E |
| X244/8 | Right engine-end busbar stud 2 | 23E |
| X244/8 | Right engine-end busbar stud 2 | 41E |
| X244/8 | Right engine-end busbar stud 2 | 60E |
| X244/8 | Right engine-end busbar stud 2 | 78E |
| X244/8 | Right engine-end busbar stud 2 | 97E |
| X244/8 | Right engine-end busbar stud 2 | 115E |
| X244/8 | Right engine-end busbar stud 2 | 134E |
| X244/8 | Right engine-end busbar stud 2 | 152E |
| X244/9 | Left vehicle-end busbar stud 4 | 11G |
| X244/9 | Left vehicle-end busbar stud 4 | 30G |
| X244/9 | Left vehicle-end busbar stud 4 | 48G |
| X244/9 | Left vehicle-end busbar stud 4 | 67G |
| X244/9 | Left vehicle-end busbar stud 4 | 85G |
| X244/9 | Left vehicle-end busbar stud 4 | 104G |
| X244/9 | Left vehicle-end busbar stud 4 | 122G |
| X244/9 | Left vehicle-end busbar stud 4 | 141G |
| X4/4 | Terminal block (circuit 30) | 54L |
| X4/4 | Terminal block (circuit 30) | 62L |
