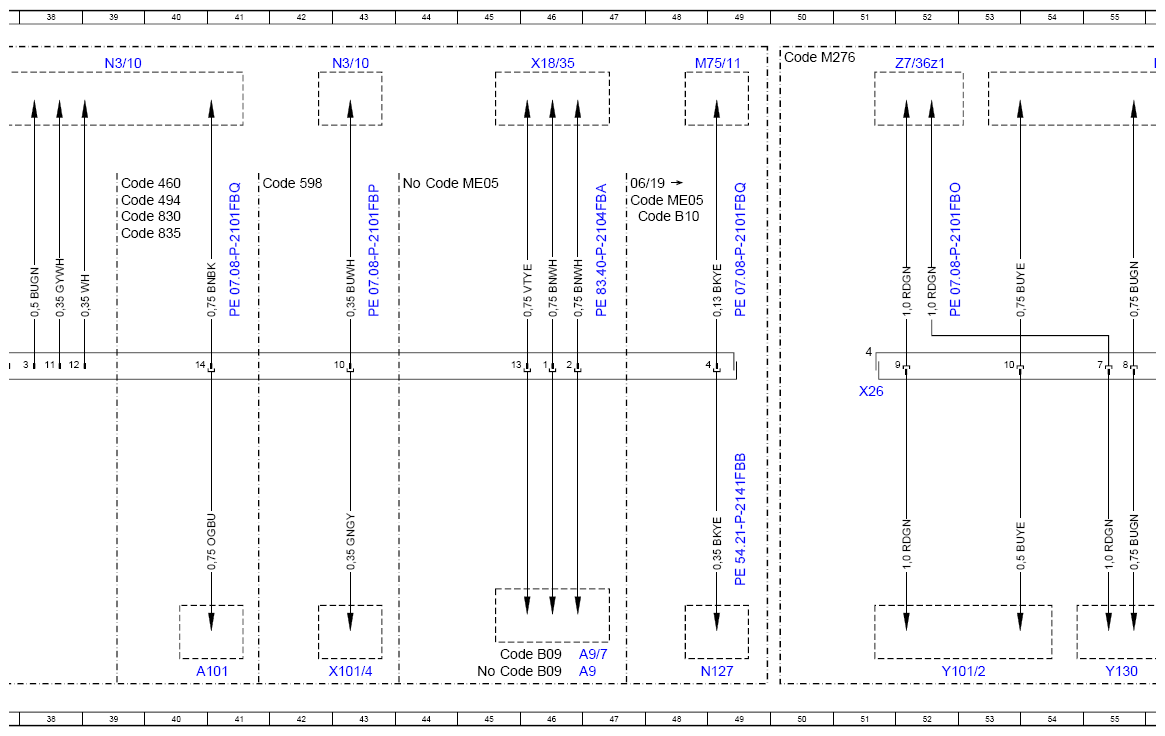

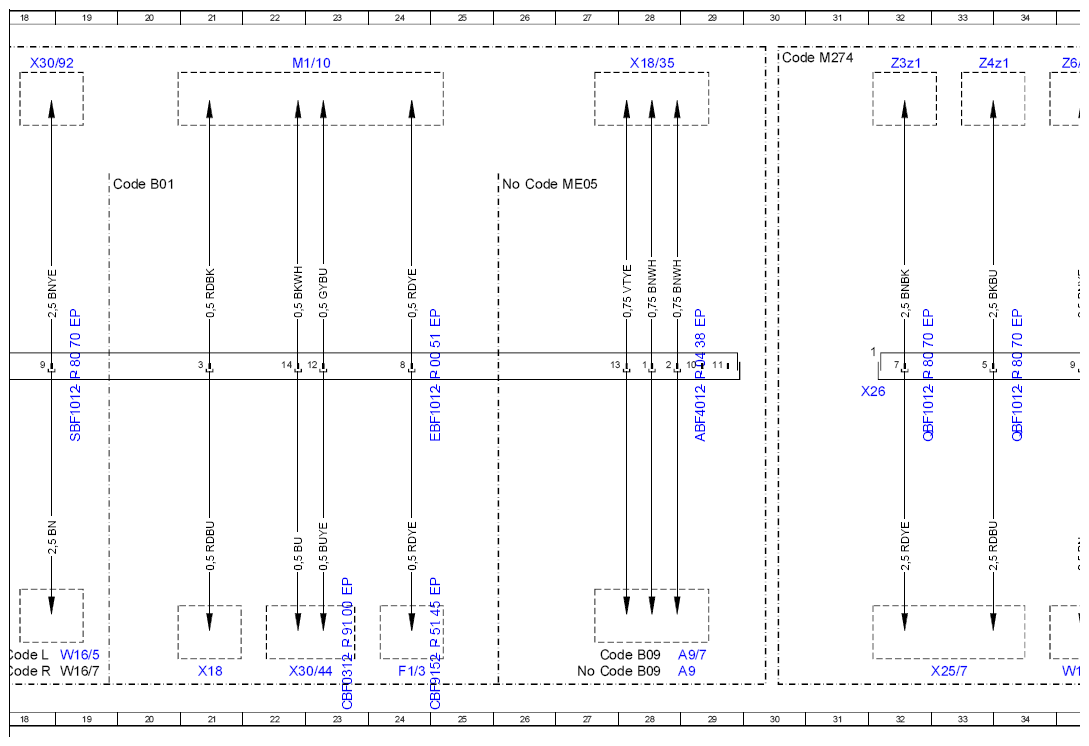

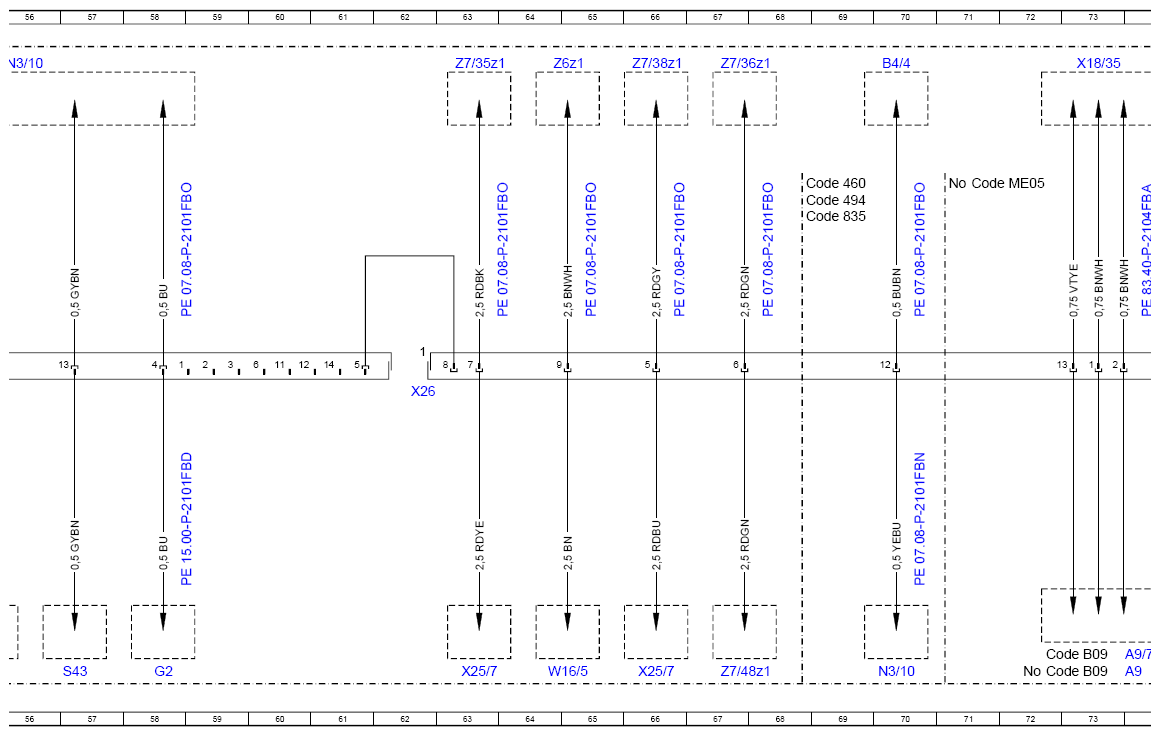

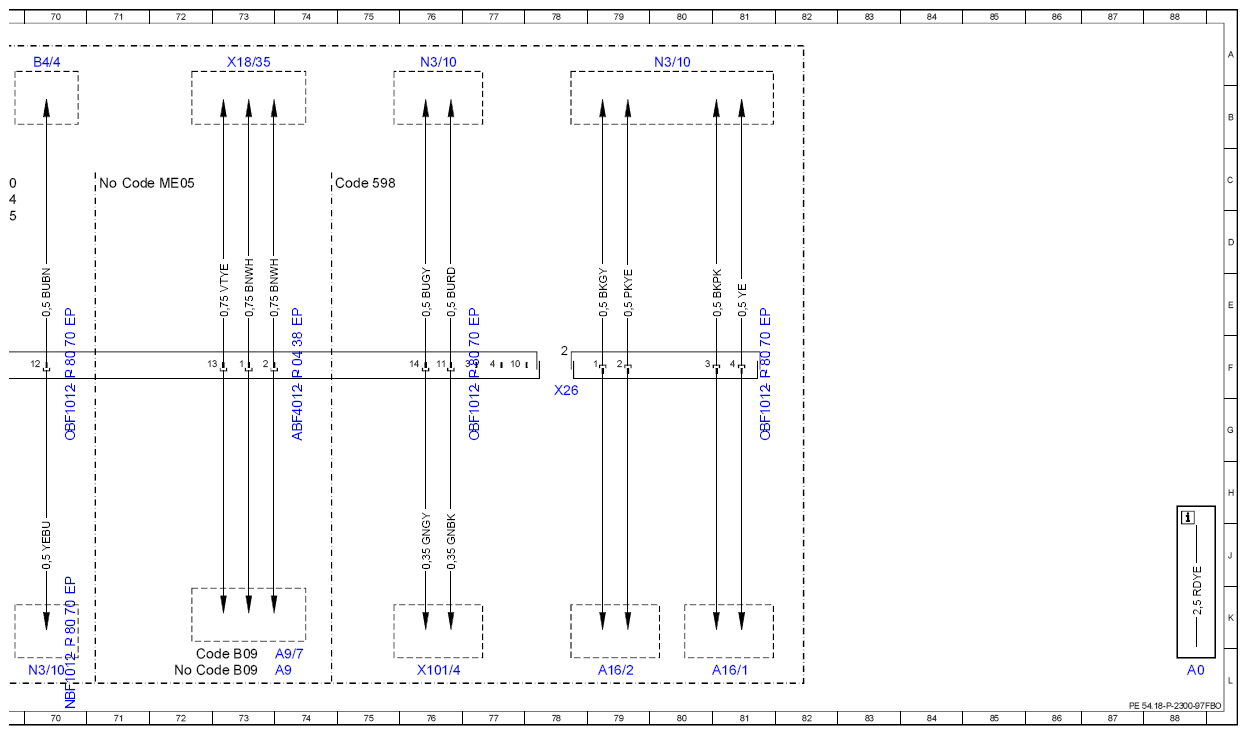

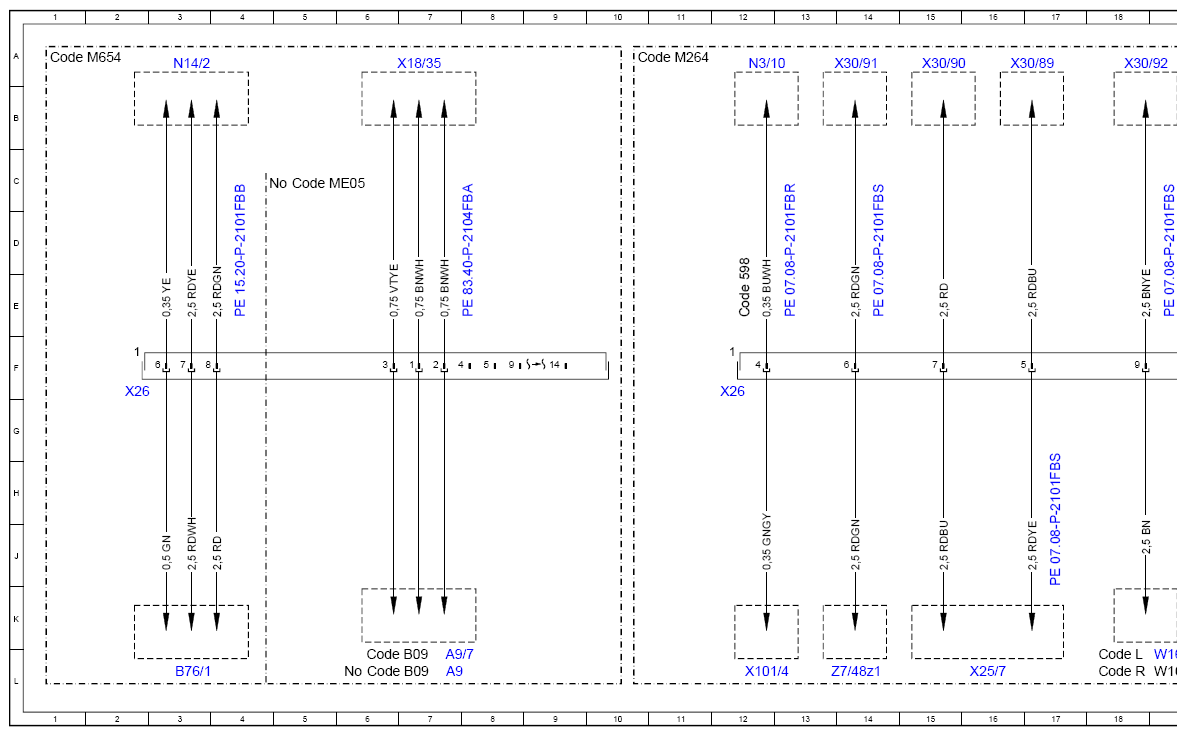

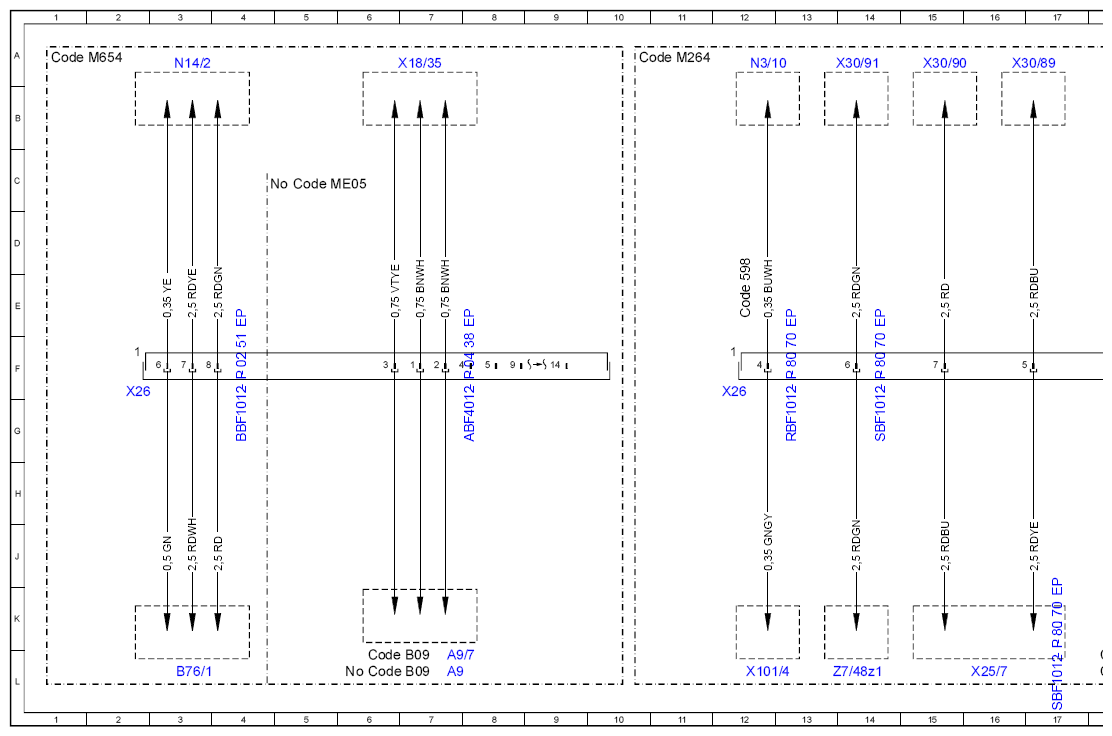

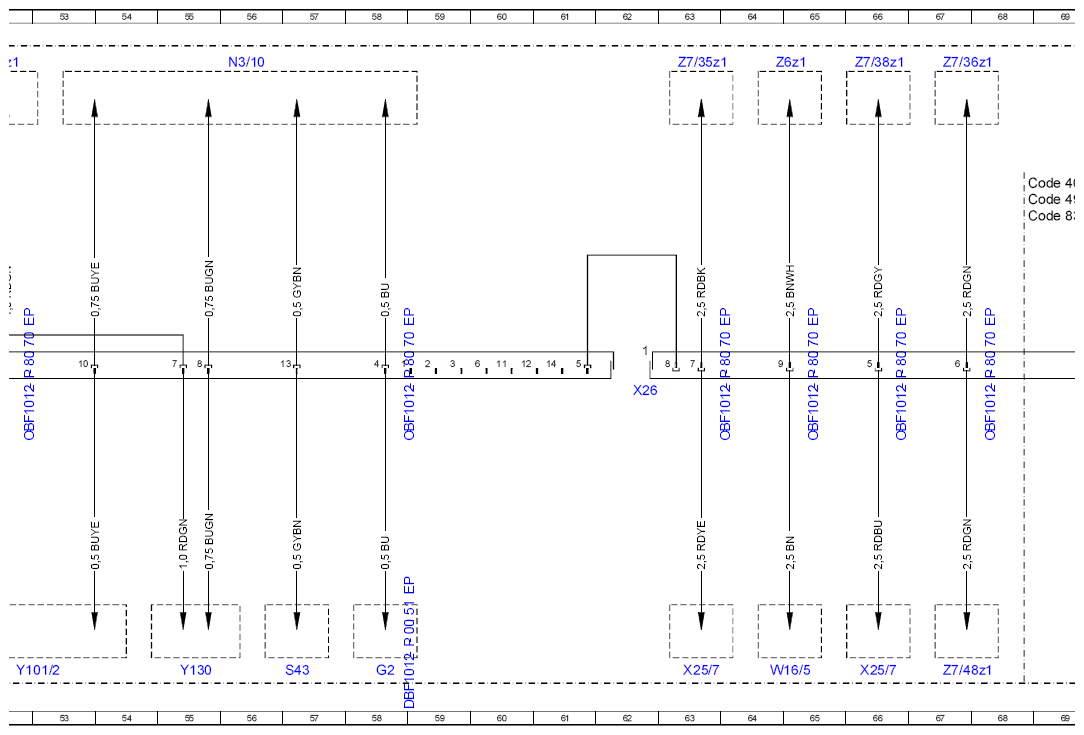

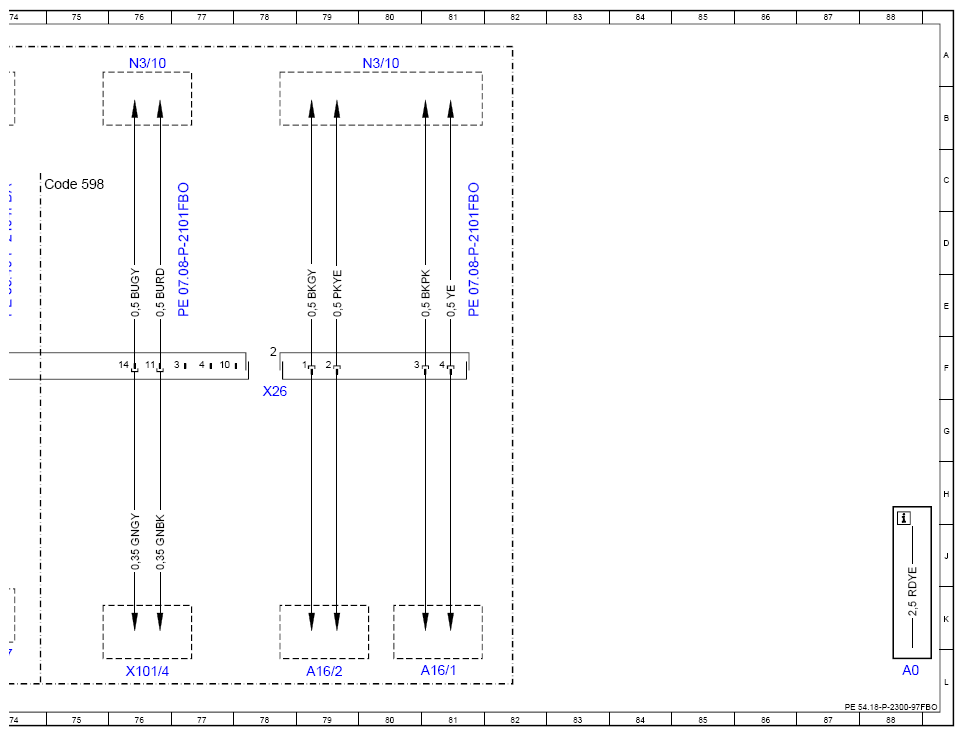

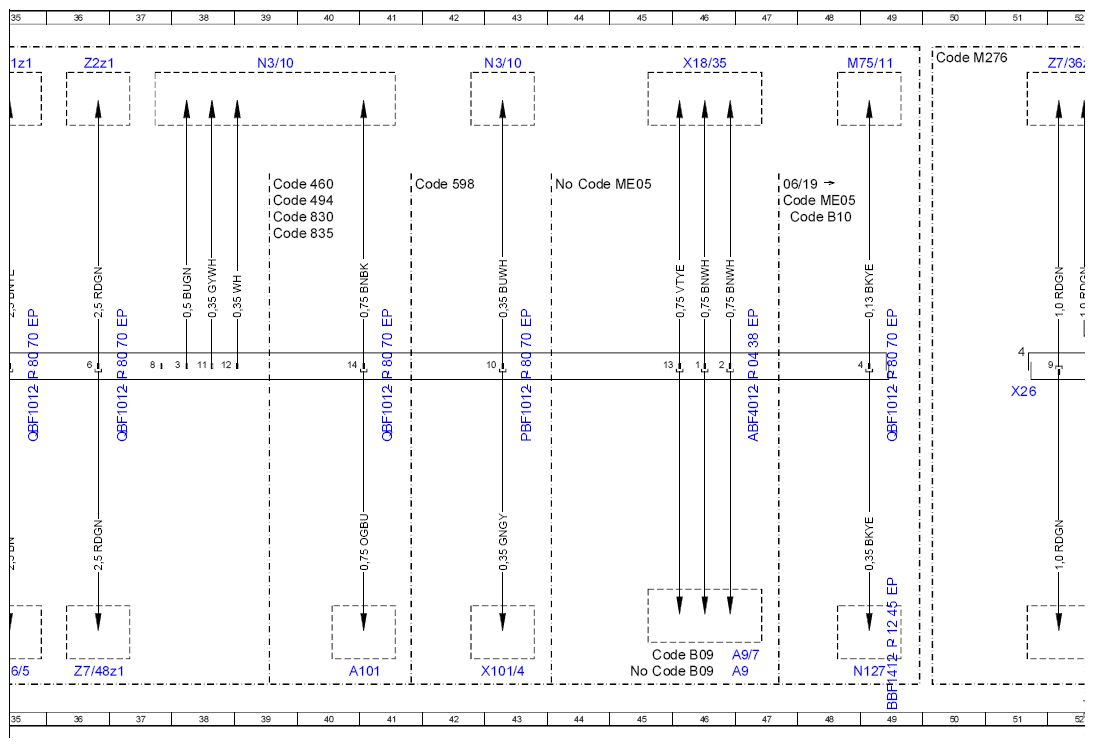

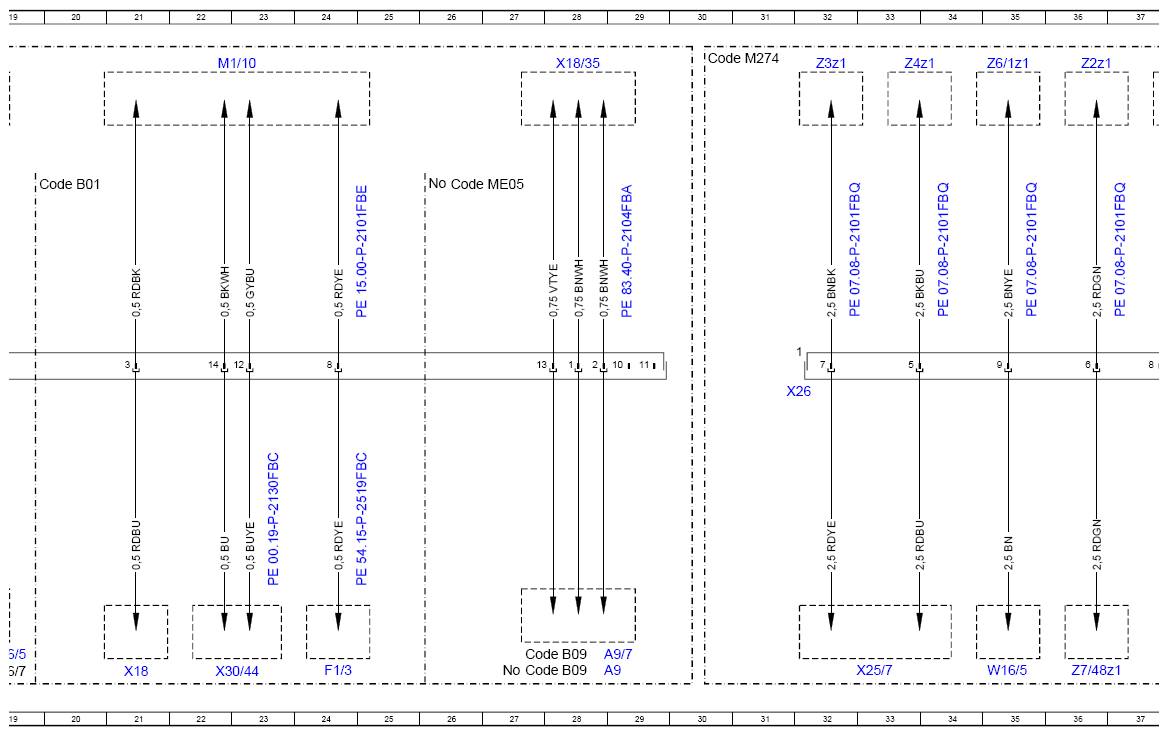

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBO
Model 205 as of model year 2019 X26
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 88L |
| A101 | Fuel tank diagnostic module | 40L |
| A16/1 | Knock sensor 1 | 81L |
| A16/2 | Knock sensor 2 | 79L |
| A9 | Refrigerant compressor | 7L |
| A9 | Refrigerant compressor | 28L |
| A9 | Refrigerant compressor | 46L |
| A9 | Refrigerant compressor | 74L |
| A9/7 | Refrigerant compressor with magnetic clutch | 7L |
| A9/7 | Refrigerant compressor with magnetic clutch | 28L |
| A9/7 | Refrigerant compressor with magnetic clutch | 46L |
| A9/7 | Refrigerant compressor with magnetic clutch | 74L |
| B4/4 | Purging pressure sensor | 70A |
| B76/1 | Condensation sensor for fuel filter with heating element | 3L |
| Code 460 | Canada version | 39C |
| Code 460 | Canada version | 68C |
| Code 494 | USA version | 39C |
| Code 494 | USA version | 68C |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 12E |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 41C |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 74C |
| Code 830 | Additional parts for China vehicles | 39D |
| Code 835 | Additional parts for South Korea vehicles | 39D |
| Code 835 | Additional parts for South Korea vehicles | 68D |
| Code B01 | 48V technology | 19C |
| Code B09 | Refrigerant compressor with magnetic clutch | 6L |
| Code B09 | Refrigerant compressor with magnetic clutch | 6L |
| Code B09 | Refrigerant compressor with magnetic clutch | 27L |
| Code B09 | Refrigerant compressor with magnetic clutch | 27L |
| Code B09 | Refrigerant compressor with magnetic clutch | 72L |
| Code B09 | Refrigerant compressor with magnetic clutch | 72L |
| Code B09 | Refrigerant compressor with magnetic clutch | 45L |
| Code B09 | Refrigerant compressor with magnetic clutch | 45L |
| Code B10 | Fuel tank system for EU6D Standard | 47D |
| Code L | LEFT-HAND DRIVE | 18L |
| Code M264 | SPARK-IGNITION ENGINE M264 | 10A |
| Code M274 | SPARK-IGNITION ENGINE M274 | 30A |
| Code M276 | SPARK-IGNITION ENGINE M276 | 50A |
| Code M654 | DIESEL ENGINE OM654 | 1A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 44C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 5C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 26C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 47C |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 71C |
| Code R | RIGHT-HAND DRIVE | 18L |
| F1/3 | Passenger-side A-pillar fuse box | 24L |
| G2 | Alternator | 58L |
| M1/10 | Starter-alternator | 22A |
| M75/11 | Electric coolant pump | 48A |
| N127 | Drivetrain control unit | 49L |
| N14/2 | Glow output stage | 3A |
| N3/10 | ME-SFI [ME] control unit | 12A |
| N3/10 | ME-SFI [ME] control unit | 39A |
| N3/10 | ME-SFI [ME] control unit | 43A |
| N3/10 | ME-SFI [ME] control unit | 70L |
| N3/10 | ME-SFI [ME] control unit | 56A |
| N3/10 | ME-SFI [ME] control unit | 80A |
| N3/10 | ME-SFI [ME] control unit | 76A |
| S43 | Oil level check switch | 57L |
| W16/5 | Left major assembly compartment electronics ground point | 19L |
| W16/5 | Left major assembly compartment electronics ground point | 35L |
| W16/5 | Left major assembly compartment electronics ground point | 64L |
| W16/7 | Right major assembly compartment electronics ground point | 19L |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 12L |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 43L |
| X101/4 | Right rear frame floor assembly/underfloor electrical connector | 76L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 21L |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 7A |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 28A |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 73A |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 46A |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 16L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 33L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 66L |
| X25/7 | Engine compartment/frame floor assembly electrical connector | 63L |
| X26 | Interior and engine wiring harness electrical connector | 2F |
| X26 | Interior and engine wiring harness electrical connector | 12F |
| X26 | Interior and engine wiring harness electrical connector | 32F |
| X26 | Interior and engine wiring harness electrical connector | 51F |
| X26 | Interior and engine wiring harness electrical connector | 62F |
| X26 | Interior and engine wiring harness electrical connector | 78F |
| X30/44 | Hybrid CAN (CAN L) potential distributor electrical connector | 22L |
| X30/89 | Power supply potential distributor 1 | 16A |
| X30/90 | Power supply potential distributor 2 | 15A |
| X30/91 | Power supply potential distributor 3 | 14A |
| X30/92 | Circuit 31 potential distributor 1 | 18A |
| Y101/2 | Right bypass air switchover valve | 52L |
| Y130 | Engine oil pump valve | 55L |
| Z2z1 | Circuit 87M connector sleeve | 36A |
| Z3z1 | Circuit 87M connector sleeve | 32A |
| Z4z1 | Circuit 87M connector sleeve | 33A |
| Z6/1z1 | Ground line connector sleeve | 35A |
| Z6z1 | Circuit 31 connector sleeve | 64A |
| Z7/35z1 | Circuit 87 M1e connector sleeve | 63A |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 52A |
| Z7/36z1 | Circuit 87 M2e connector sleeve | 67A |
| Z7/38z1 | Circuit 87 M1i connector sleeve | 66A |
| Z7/48z1 | Circuit 87/2 connector sleeve | 14L |
| Z7/48z1 | Circuit 87/2 connector sleeve | 36L |
| Z7/48z1 | Circuit 87/2 connector sleeve | 67L |
