Connector Separation Point Wiring Diagram - PE54.18-P-2300-97FBN
Model 205 as of model year 2019 X18/28, X18/35

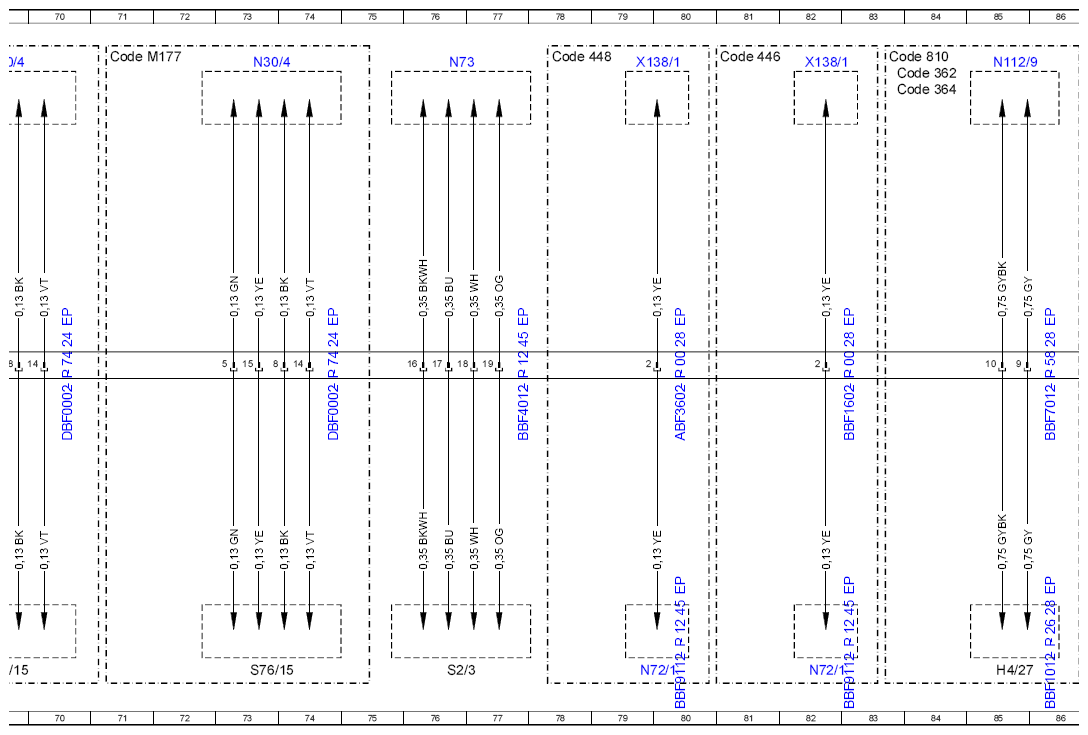

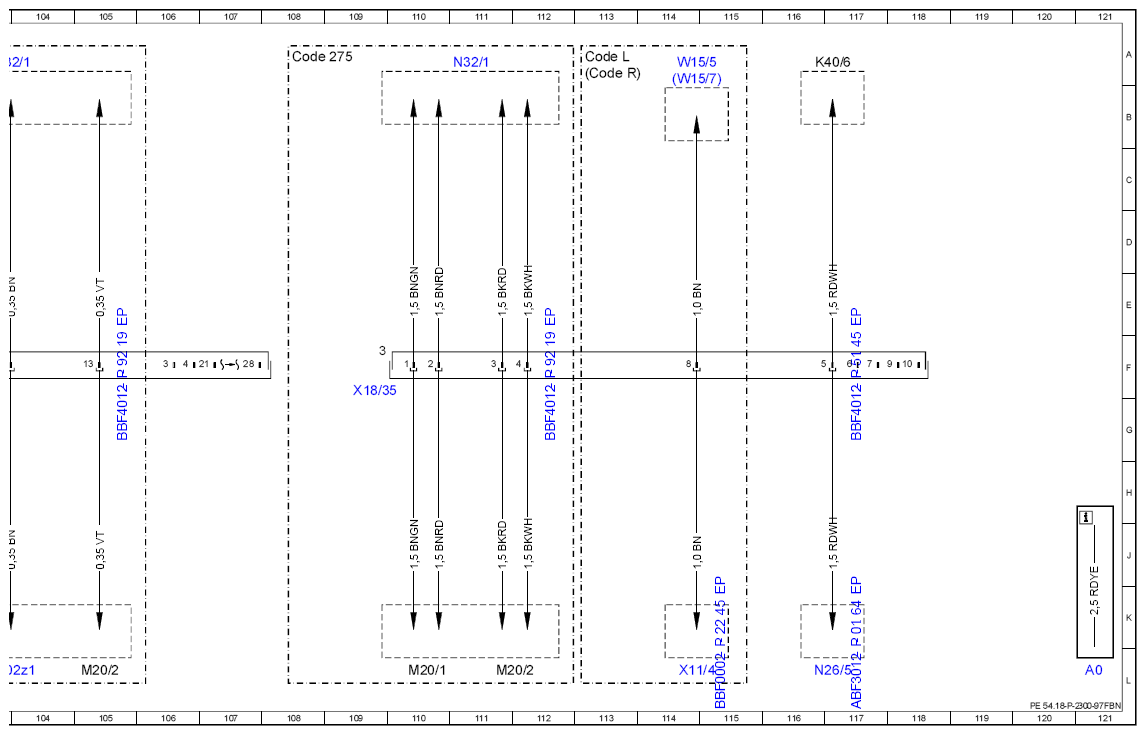

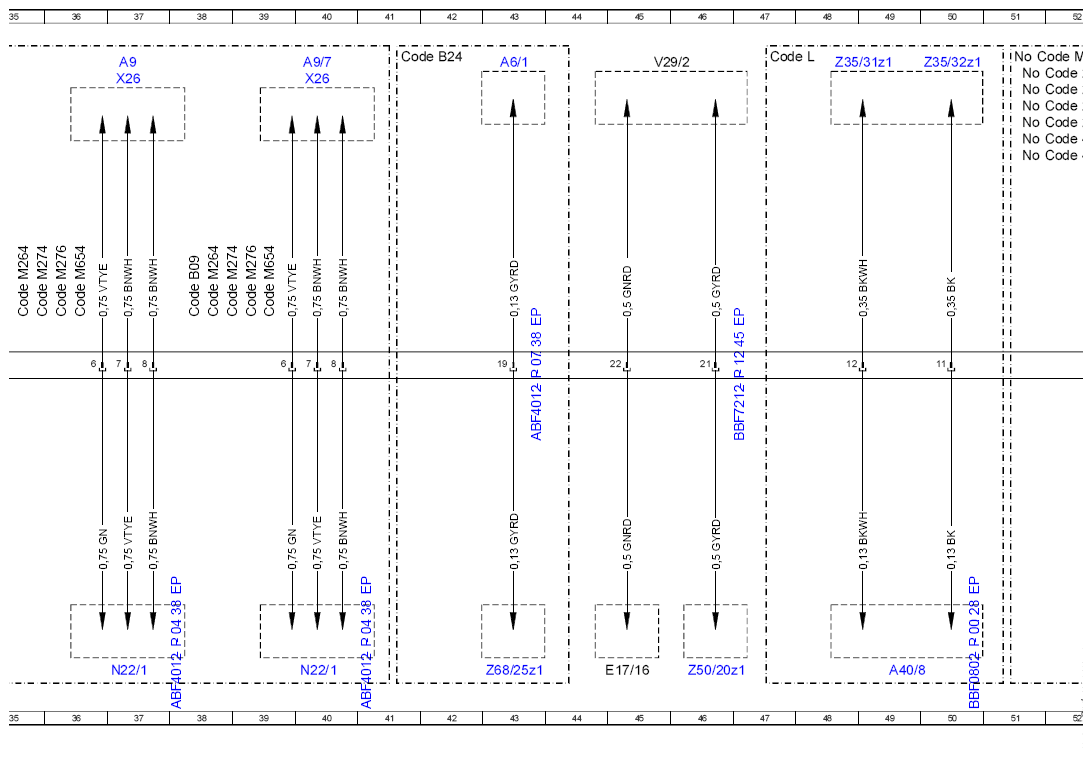

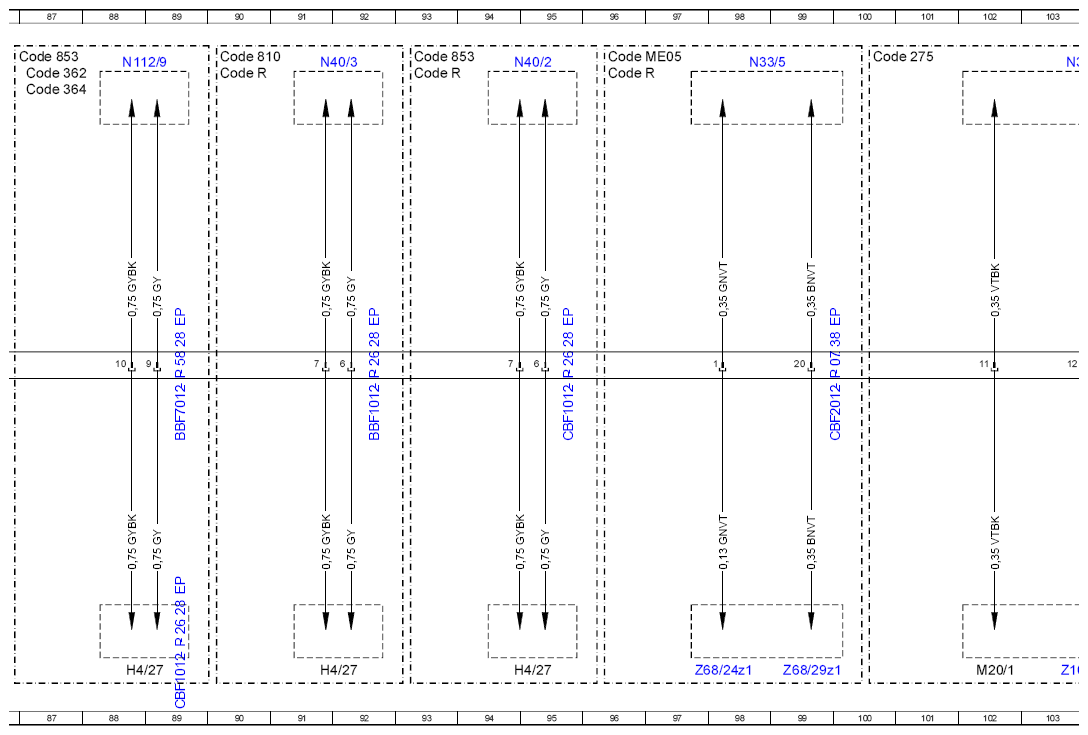

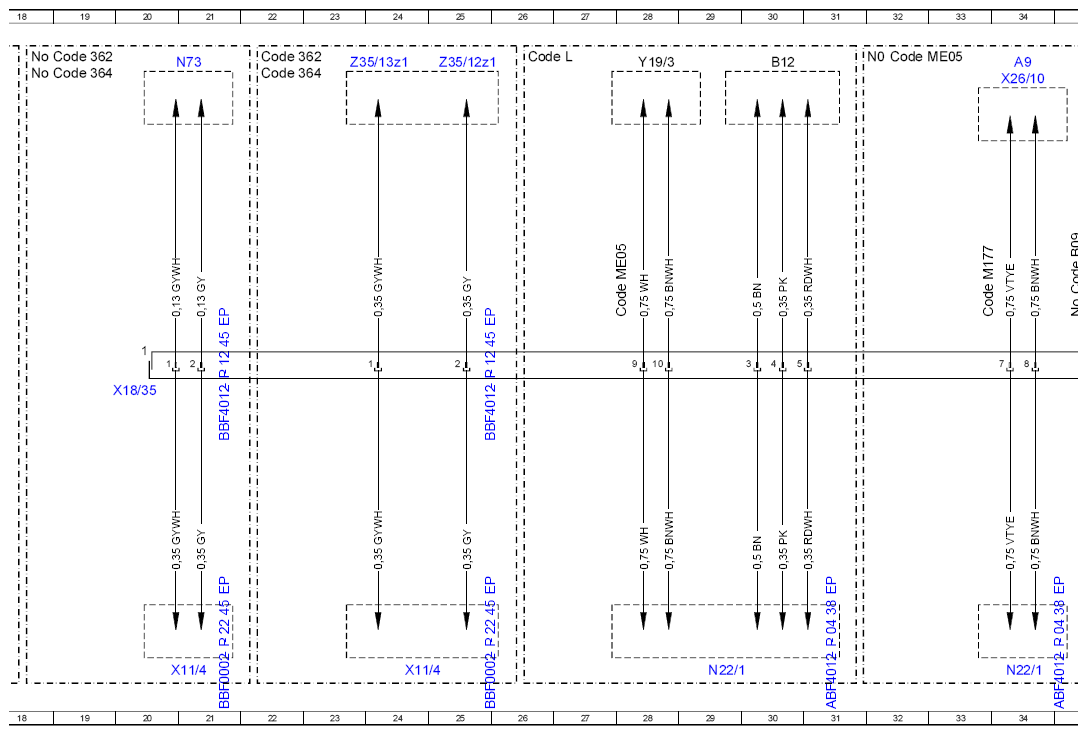

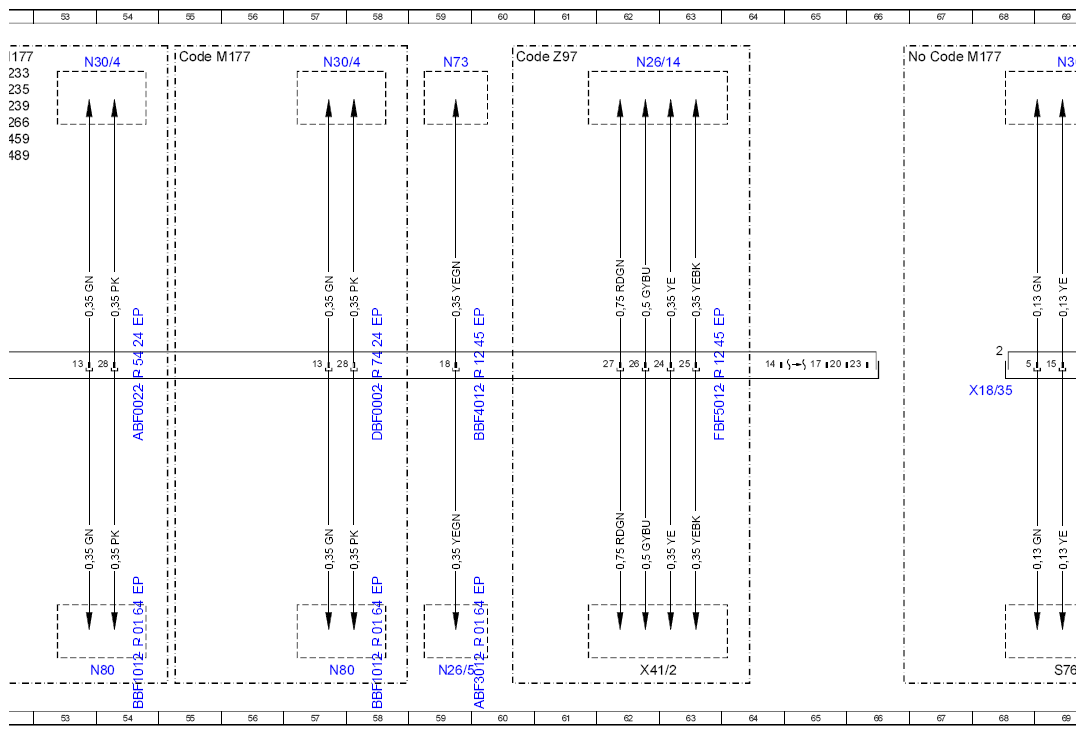

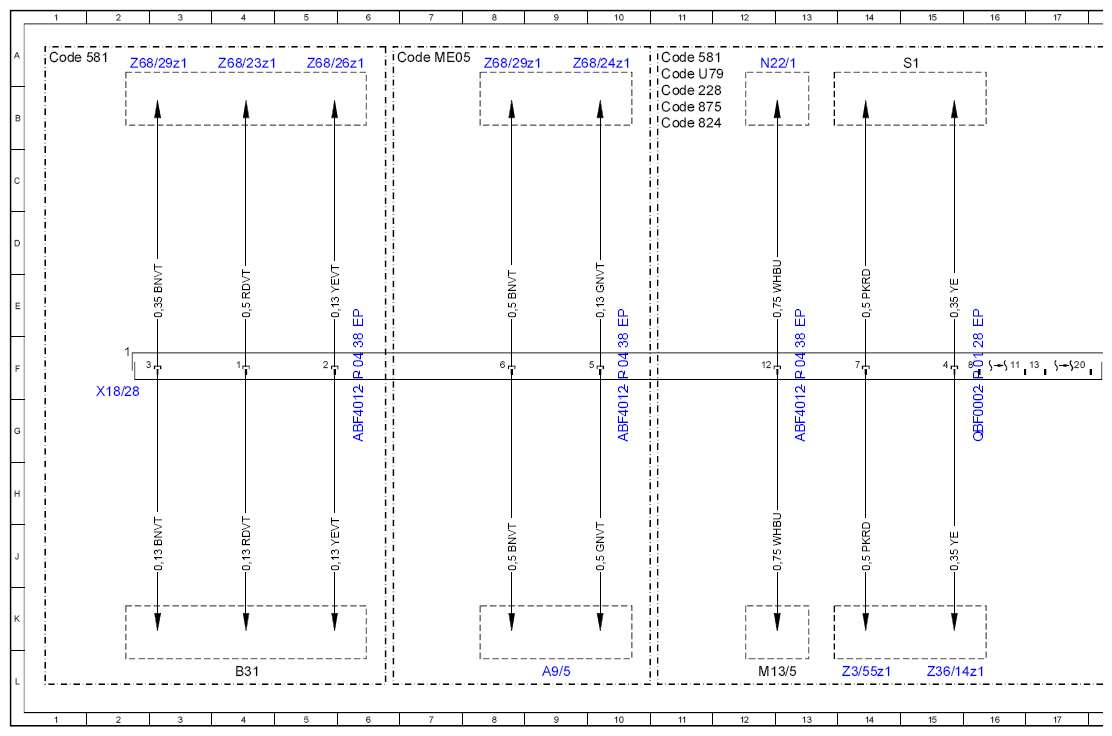

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 121L |
| A40/8 | Audio/COMAND display | 49L |
| A6/1 | Stationary heater radio remote control receiver | 43A |
| A9 | Refrigerant compressor | 34A |
| A9 | Refrigerant compressor | 37A |
| A9/5 | Electric refrigerant compressor | 9L |
| A9/7 | Refrigerant compressor with magnetic clutch | 40A |
| B12 | Refrigerant pressure sensor | 30A |
| B31 | Air quality sensor | 4L |
| Code 228 | Stationary heater | 11B |
| Code 233 | AUTONOMOUS INTELLIGENT CRUISE CONTROL PLUS | 51A |
| Code 235 | Active Park Assist | 51B |
| Code 239 | DISTRONIC PLUS | 51B |
| Code 266 | DISTRONIC PLUS TRANSVERSE SUPPORT | 51B |
| Code 275 | Memory package | 108A |
| Code 275 | Memory package | 100A |
| Code 362 | HERMES LTE | 19A |
| Code 362 | HERMES LTE | 22A |
| Code 362 | HERMES LTE | 83A |
| Code 362 | HERMES LTE | 87A |
| Code 364 | HERMES UMTS communications module for Russia | 22A |
| Code 364 | HERMES UMTS communications module for Russia | 19A |
| Code 364 | HERMES UMTS communications module for Russia | 83B |
| Code 364 | HERMES UMTS communications module for Russia | 87B |
| Code 446 | Touchpad only | 81A |
| Code 448 | Touchpad | 78A |
| Code 459 | DYNAMIC BODY CONTROL suspension with adjustment damping | 51B |
| Code 489 | AIRMATIC | 51C |
| Code 581 | THERMOTRONIC automatic air conditioning | 1A |
| Code 581 | THERMOTRONIC automatic air conditioning | 11A |
| Code 810 | Sound system | 83A |
| Code 810 | Sound system | 90A |
| Code 824 | Additional parts for countries with cold temp. | 11B |
| Code 853 | Midline sound system | 86A |
| Code 853 | Midline sound system | 93A |
| Code 875 | Heated windshield washer system | 11B |
| Code B09 | Refrigerant compressor with magnetic clutch | 35E |
| Code B09 | Refrigerant compressor with magnetic clutch | 38E |
| Code B24 | Radio remote control for stationary heater | 41A |
| Code L | LEFT-HAND DRIVE | 26A |
| Code L | LEFT-HAND DRIVE | 47A |
| Code L | LEFT-HAND DRIVE | 113A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 34E |
| Code M177 | SPARK-IGNITION ENGINE M177 | 51A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 55A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 67A |
| Code M177 | SPARK-IGNITION ENGINE M177 | 71A |
| Code M264 | SPARK-IGNITION ENGINE M264 | 35E |
| Code M264 | SPARK-IGNITION ENGINE M264 | 38E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 36E |
| Code M274 | SPARK-IGNITION ENGINE M274 | 39E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 36E |
| Code M276 | SPARK-IGNITION ENGINE M276 | 39E |
| Code M654 | DIESEL ENGINE OM654 | 36E |
| Code M654 | DIESEL ENGINE OM654 | 39E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 6A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 28E |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 32A |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 96A |
| Code R | RIGHT-HAND DRIVE | 90A |
| Code R | RIGHT-HAND DRIVE | 93A |
| Code R | RIGHT-HAND DRIVE | 96A |
| Code R | RIGHT-HAND DRIVE | 113A |
| Code U79 | BLUETEC (SCR) diesel exhaust treatment Generation 3 | 11A |
| Code Z97 | Electronic interface | 60A |
| E17/16 | Left front footwell lamp | 45L |
| H4/27 | Center instrument panel speaker | 88L |
| H4/27 | Center instrument panel speaker | 85L |
| H4/27 | Center instrument panel speaker | 91L |
| H4/27 | Center instrument panel speaker | 95L |
| K40/6 | Driver-side fuse and relay module | 116A |
| M13/5 | Coolant circulation pump | 12L |
| M20/1 | Steering column in/out adjustment motor | 102L |
| M20/1 | Steering column in/out adjustment motor | 110L |
| M20/2 | Steering column up/down adjustment motor | 105L |
| M20/2 | Steering column up/down adjustment motor | 111L |
| N112/9 | HERMES control unit | 85A |
| N112/9 | HERMES control unit | 88A |
| N22/1 | Climate control, control unit | 29L |
| N22/1 | Climate control, control unit | 34L |
| N22/1 | Climate control, control unit | 37L |
| N22/1 | Climate control, control unit | 40L |
| N22/1 | Climate control, control unit | 12A |
| N26/14 | Special vehicle multifunction control unit (SVMCU [MSS]) | 62A |
| N26/5 | Electric steering lock control unit | 59L |
| N26/5 | Electric steering lock control unit | 116L |
| N30/4 | Electronic Stability Program control unit | 53A |
| N30/4 | Electronic Stability Program control unit | 57A |
| N30/4 | Electronic Stability Program control unit | 69A |
| N30/4 | Electronic Stability Program control unit | 73A |
| N32/1 | Driver seat control unit | 103A |
| N32/1 | Driver seat control unit | 111A |
| N33/5 | High-voltage PTC heater | 98A |
| N40/2 | Sound system midline amplifier control unit | 95A |
| N40/3 | Sound system amplifier control unit | 91A |
| N72/1 | Upper control panel control unit | 79L |
| N72/1 | Upper control panel control unit | 82L |
| N73 | Electronic ignition switch control unit | 21A |
| N73 | Electronic ignition switch control unit | 59A |
| N73 | Electronic ignition switch control unit | 76A |
| N80 | Steering column module control unit | 54L |
| N80 | Steering column module control unit | 57L |
| S1 | Exterior lights switch | 15A |
| S2/3 | KEYLESS GO start/stop button | 76L |
| S76/15 | Electric parking brake switch | 69L |
| S76/15 | Electric parking brake switch | 73L |
| V29/2 | Footwell lamp diode 2 | 45A |
| W15/5 | Left front footwell ground point | 114A |
| W15/7 | Right front footwell ground point | 114A |
| X11/4 | Diagnostic connector | 21L |
| X11/4 | Diagnostic connector | 24L |
| X11/4 | Diagnostic connector | 114L |
| X138/1 | Front center console electrical connector | 79A |
| X138/1 | Front center console electrical connector | 82A |
| X18/28 | Left cockpit/engine compartment electrical connector | 2F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 20F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 68F |
| X18/35 | Cockpit wiring harness and frame floor assembly electrical connector | 109F |
| X26 | Interior and engine wiring harness electrical connector | 37A |
| X26 | Interior and engine wiring harness electrical connector | 40A |
| X26/10 | Vehicle interior/engine electrical connector | 34A |
| X41/2 | Roof light bar separation point | 62L |
| Y19/3 | Front evaporator shutoff valve | 28A |
| Z102z1 | Steering column adjustment motor connector sleeve | 103L |
| Z3/55z1 | Tml. 15 connector sleeve | 14L |
| Z35/12z1 | Diagnostic CAN (CAN D) low connector sleeve | 25A |
| Z35/13z1 | Diagnostic CAN (CAN D) high connector sleeve | 23A |
| Z35/31z1 | Head unit CAN (high) connector sleeve | 48A |
| Z35/32z1 | Head unit CAN (low) connector sleeve | 50A |
| Z36/14z1 | Headlamp range adjustment signal connector sleeve | 15L |
| Z50/20z1 | Cockpit connector sleeve, footwell lighting | 46L |
| Z68/23z1 | Connector sleeve, 12V climate control LIN 2 | 4A |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 9A |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 98L |
| Z68/25z1 | Connector sleeve, data line, A/C control panel LIN | 43L |
| Z68/26z1 | Climate control LIN 1 connector sleeve | 5A |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 2A |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 8A |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 99L |
