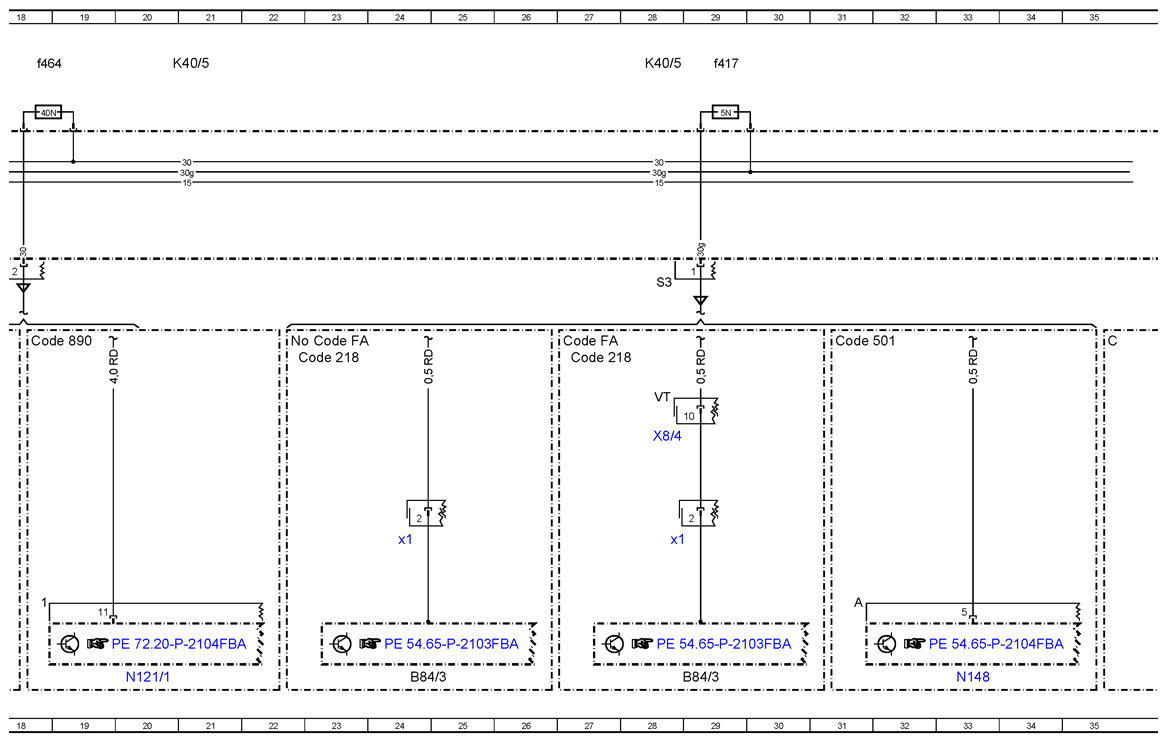

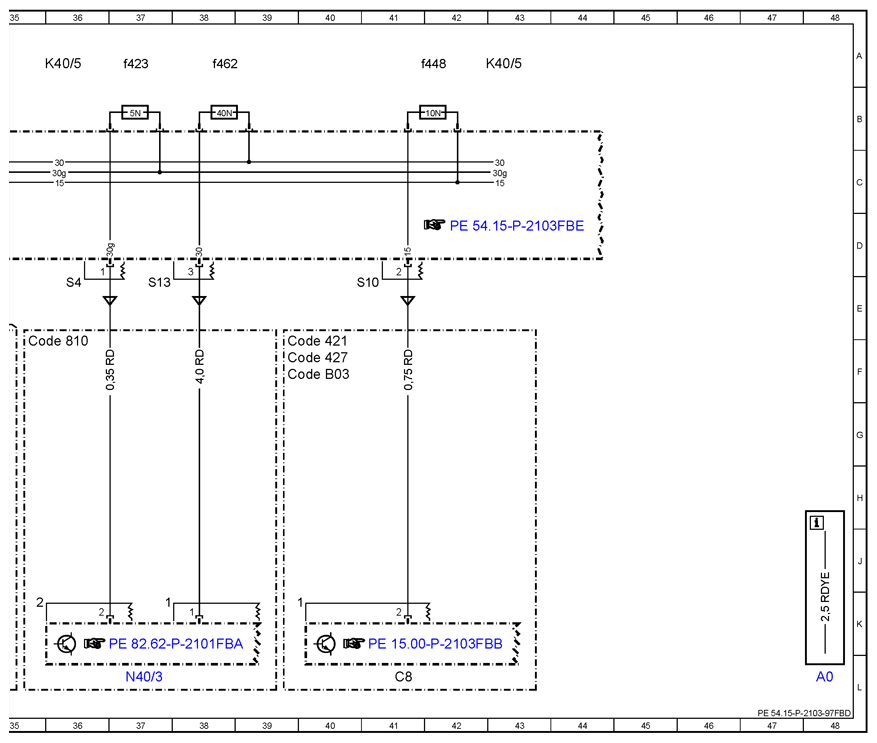

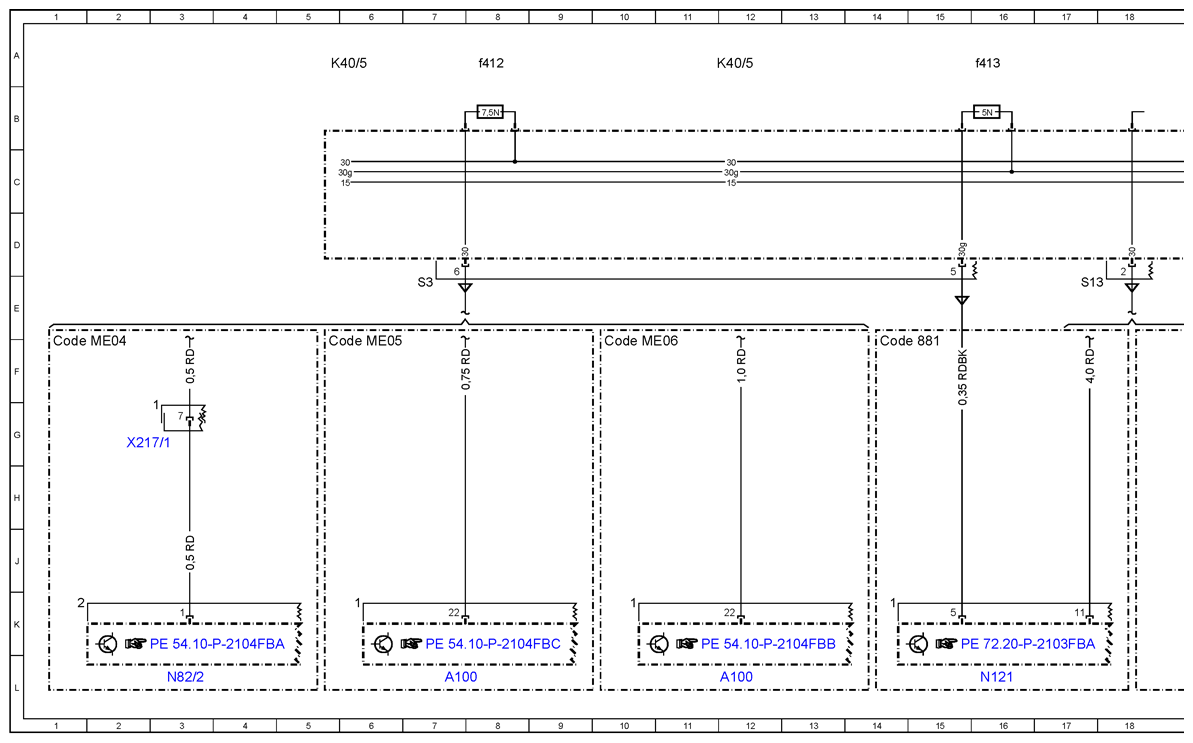

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97FBD
Model 205 up to model year 2019 Fuse and relay module K40/5, sheet 4 Model 253 (except 253.99) up to model year 2020 Fuse and relay module K40/5, sheet 4
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A100 | High-voltage battery module | 7L |
| A100 | High-voltage battery module | 12L |
| B84/3 | Backup camera | 24L |
| B84/3 | Backup camera | 29L |
| B84/3x1 | Reversing camera electrical connector 1 | 24J |
| B84/3x1 | Reversing camera electrical connector 1 | 28J |
| C8 | Park pawl capacitor | 41L |
| Code 218 | Backup camera | 22F |
| Code 218 | Backup camera | 27F |
| Code 421 | 9G-TRONIC PLUS | 39F |
| Code 427 | 7G-TRONIC PLUS automatic transmission | 39F |
| Code 501 | 360 degree camera | 31F |
| Code 810 | Sound system | 35F |
| Code 881 | Remote trunk closing | 14F |
| Code 890 | EASY-PACK liftgate | 18F |
| Code B03 | ECO start/stop function | 39F |
| Code FA | CABRIOLET | 23F |
| Code FA | CABRIOLET | 27F |
| Code ME04 | Hybrid drive 20 KW VARIANT | 1F |
| Code ME05 | HYBRID DRIVE 80 KW VARIANT (INCLUDING PLUGIN) | 5F |
| Code ME06 | Hybrid drive 50 KW VARIANT (INCLUDING PLUGIN) | 10F |
| K40/5 | Rear fuse and relay module | 6A |
| K40/5 | Rear fuse and relay module | 12A |
| K40/5 | Rear fuse and relay module | 21A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 36A |
| K40/5 | Rear fuse and relay module | 43A |
| K40/5f412 | Fuse 412 | 8A |
| K40/5f413 | Fuse 413 | 16A |
| K40/5f417 | Fuse 417 | 29A |
| K40/5f423 | Fuse 423 | 37A |
| K40/5f448 | Fuse 448 | 42A |
| K40/5f462 | Fuse 462 | 38A |
| K40/5f464 | Fuse 464 | 18A |
| N121 | Trunk lid control, control unit | 16L |
| N121/1 | Tailgate control, control unit | 20L |
| N148 | 360° camera control unit | 33L |
| N40/3 | Sound system amplifier control unit | 37L |
| N82/2 | Battery management system control unit | 3L |
| X217/1 | Battery management system electrical connector | 2G |
| X8/4 | Trunk lid/liftgate electrical connector | 28G |
