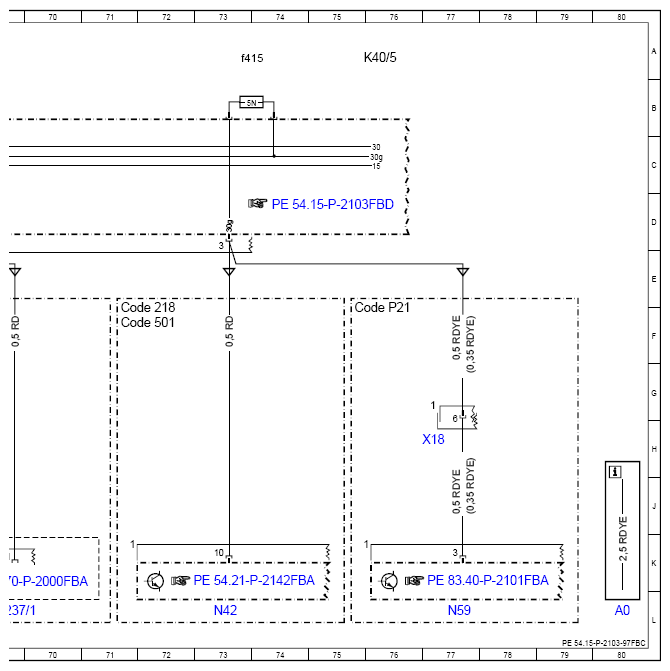

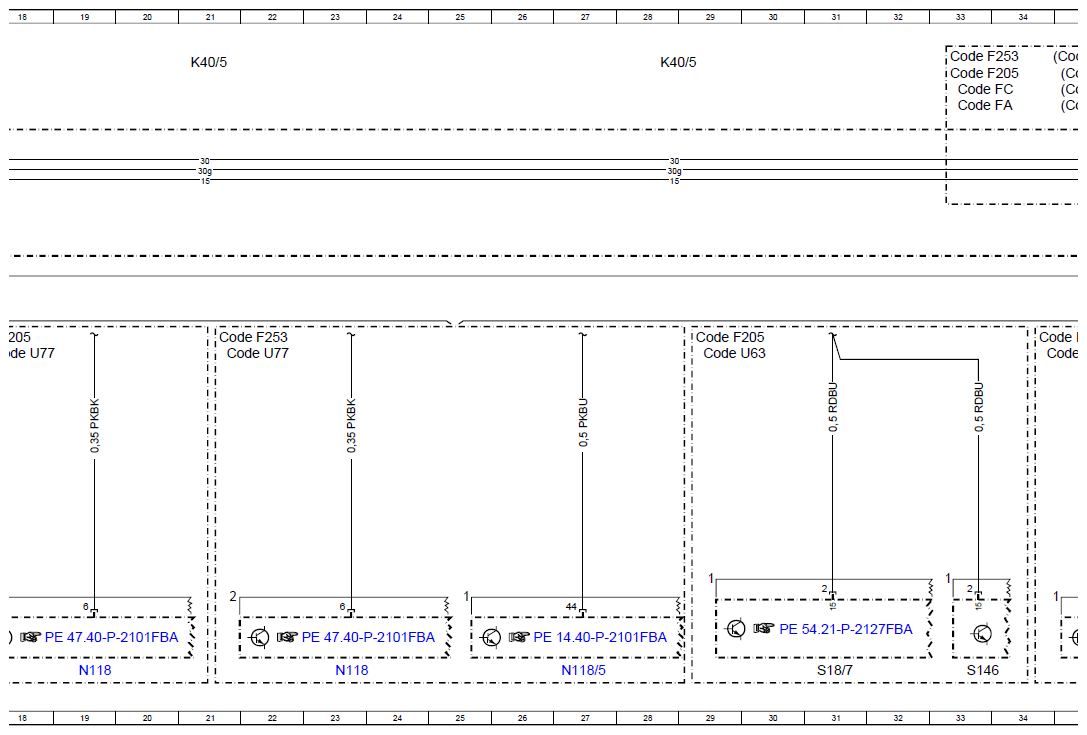

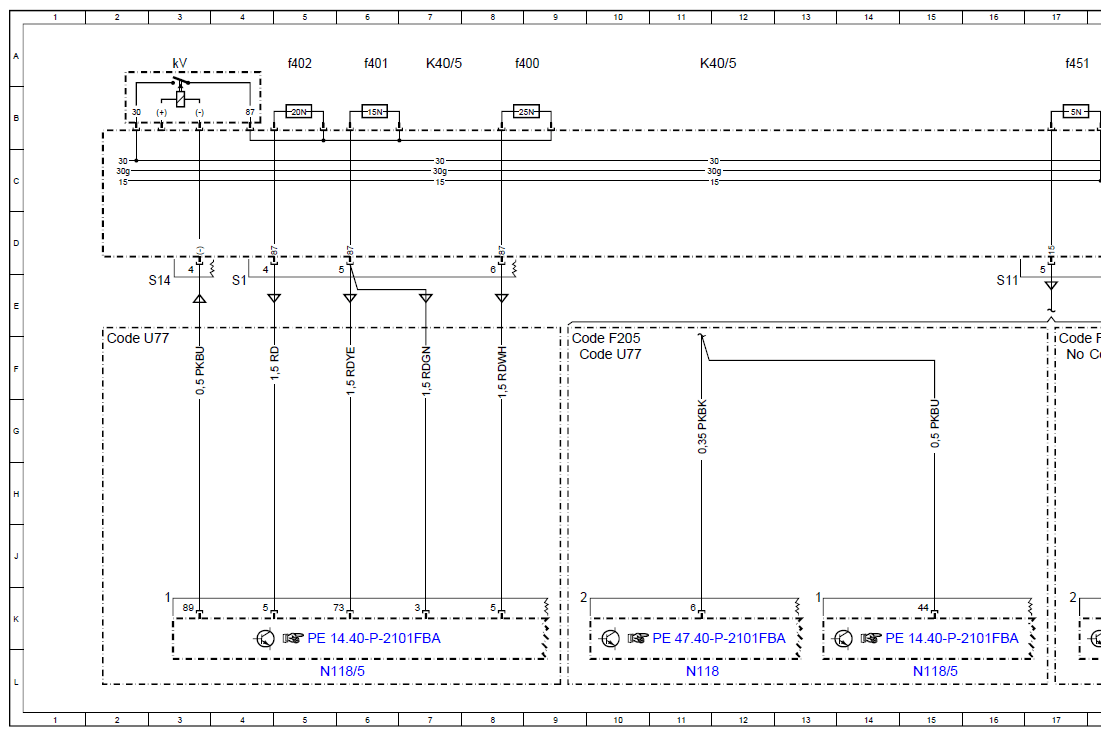

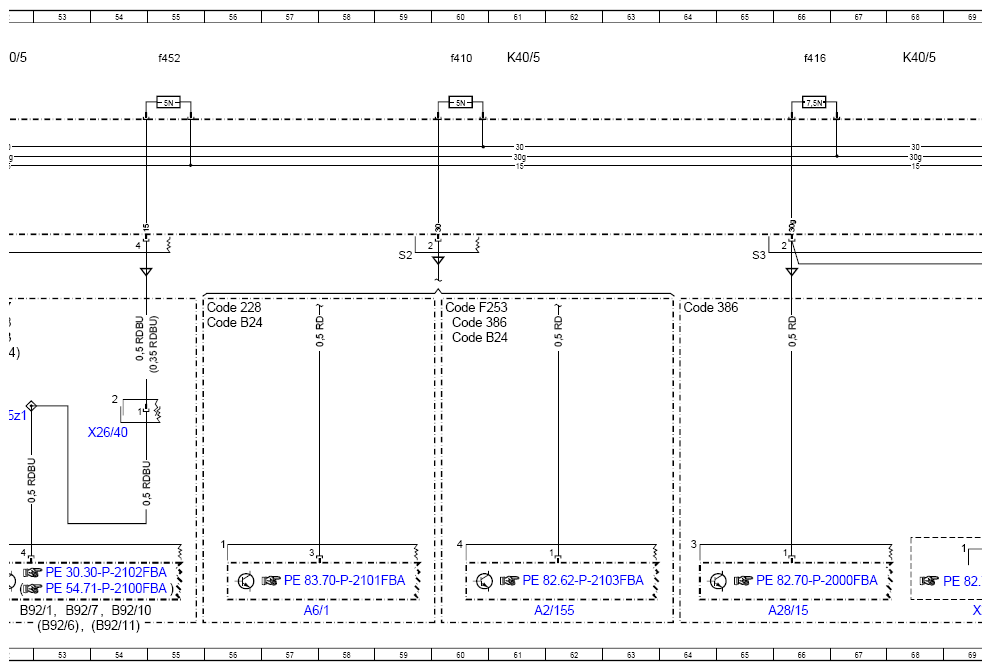

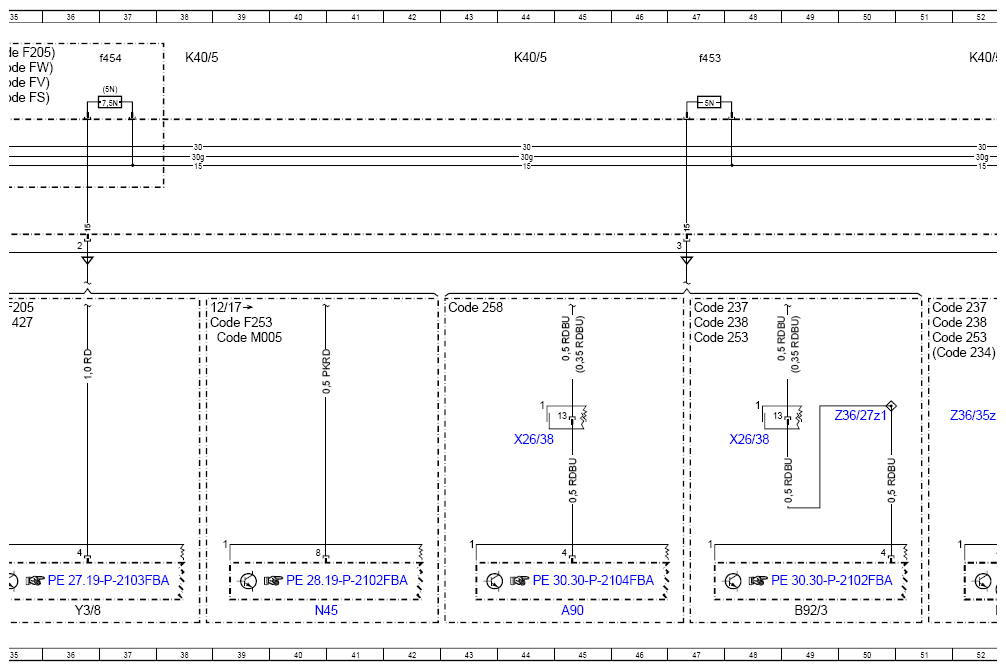

Rear Fuse And Relay Box Wiring Diagram - PE54.15-P-2103-97FBC
Model 205 up to model year 2019 Fuse and relay module K40/5, sheet 3 Model 253 (except 253.99) up to model year 2020 Fuse and relay module K40/5, sheet 3
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 80L |
| A2/155 | Telephone and stationary heater antenna changeover switch | 61L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 66L |
| A6/1 | Stationary heater radio remote control receiver | 57L |
| A90 | COLLISION PREVENTION ASSIST controller unit | 45L |
| B92/1 | Center rear bumper radar sensor | 52L |
| B92/10 | Left outer rear bumper radar sensor | 54L |
| B92/11 | Left outer rear bumper integrated radar sensor | 54L |
| B92/3 | Left front bumper radar sensor | 49L |
| B92/6 | Right outer rear bumper integrated radar sensor | 53L |
| B92/7 | Right outer rear bumper radar sensor | 53L |
| Code 218 | Backup camera | 71F |
| Code 228 | Stationary heater | 56F |
| Code 234 | Blind Spot Assist (BSM) | 51F |
| Code 237 | Active Blind Spot Assist | 47F |
| Code 237 | Active Blind Spot Assist | 51F |
| Code 238 | Active Lane Keeping Assist | 47F |
| Code 238 | Active Lane Keeping Assist | 51F |
| Code 253 | Rear-end collision warning and protection system | 51F |
| Code 253 | Rear-end collision warning and protection system | 47F |
| Code 258 | Collision Prevention Assist PLUS (CPA+) | 43F |
| Code 386 | Comfort telephony | 60F |
| Code 386 | Comfort telephony | 64F |
| Code 427 | 7G-TRONIC PLUS automatic transmission | 34F |
| Code 501 | 360 degree camera | 71F |
| Code B24 | Radio remote control for stationary heater | 60F |
| Code B24 | Radio remote control for stationary heater | 56F |
| Code F205 | MODEL SERIES 205 | 9F |
| Code F205 | MODEL SERIES 205 | 17F |
| Code F205 | MODEL SERIES 205 | 34F |
| Code F205 | MODEL SERIES 205 | 29F |
| Code F205 | MODEL SERIES 205 | 33A |
| Code F205 | MODEL SERIES 205 | 34A |
| Code F253 | MODEL SERIES 253 | 21F |
| Code F253 | MODEL SERIES 253 | 38F |
| Code F253 | MODEL SERIES 253 | 33A |
| Code F253 | MODEL SERIES 253 | 60F |
| Code FA | CABRIOLET | 33B |
| Code FC | COUPE | 33B |
| Code FS | STATION WAGON | 35B |
| Code FV | LONG SEDAN | 35B |
| Code FW | SEDAN | 35A |
| Code M005 | 4MATIC | 39F |
| Code P21 | AIR-BALANCE package | 75F |
| Code U63 | Driving school package | 29F |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 2F |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 9F |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 21F |
| Code U77 | BLUETEC (SCR) diesel exhaust treatment | 18F |
| K40/5 | Rear fuse and relay module | 7A |
| K40/5 | Rear fuse and relay module | 11A |
| K40/5 | Rear fuse and relay module | 21A |
| K40/5 | Rear fuse and relay module | 28A |
| K40/5 | Rear fuse and relay module | 38A |
| K40/5 | Rear fuse and relay module | 44A |
| K40/5 | Rear fuse and relay module | 52A |
| K40/5 | Rear fuse and relay module | 61A |
| K40/5 | Rear fuse and relay module | 68A |
| K40/5 | Rear fuse and relay module | 76A |
| K40/5f400 | Fuse 400 | 8A |
| K40/5f401 | Fuse 401 | 6A |
| K40/5f402 | Fuse 402 | 5A |
| K40/5f410 | Fuse 410 | 60A |
| K40/5f415 | Fuse 415 | 73A |
| K40/5f416 | Fuse 416 | 66A |
| K40/5f451 | Fuse 451 | 17A |
| K40/5f452 | Fuse 452 | 55A |
| K40/5f453 | Fuse 453 | 47A |
| K40/5f454 | Fuse 454 | 37A |
| K40/5kV | AdBlue® relay | 3A |
| N118 | Fuel pump control unit | 11L |
| N118 | Fuel pump control unit | 19L |
| N118 | Fuel pump control unit | 23L |
| N118/5 | AdBlue® control unit | 15L |
| N118/5 | AdBlue® control unit | 5L |
| N118/5 | AdBlue® control unit | 27L |
| N42 | Camera cover control unit | 73L |
| N45 | All-wheel drive control unit | 40L |
| N59 | Perfume atomizer generator | 77L |
| S146 | Pedal operation monitor switch | 33L |
| S18/7 | Footwell illumination switch | 31L |
| X18 | Cockpit wiring harness and frame floor assembly electrical connector | 77H |
| X237/1 | Mobile phone contact plate | 69L |
| X26/38 | Front bumper and frame wiring harness electrical connector | 44H |
| X26/38 | Front bumper and frame wiring harness electrical connector | 48H |
| X26/40 | Rear frame floor assembly/bumper electrical connector | 54H |
| Y3/8 | Fully integrated transmission control, control unit | 36L |
| Z36/27z1 | DISTRONIC PLUS front power supply connector sleeve | 50G |
| Z36/35z1 | Rear bumper circuit 15 connector sleeve | 52G |
