Remove/Install Parktronic System (PTS) Sensors In Rear Bumper - AR54.65-P-0002LW
Model 205
with code 235 (Active Parking Assist with PARKTRONIC)
Model 253 (except 253.992/993)
with code 235 (Active Parking Assist with PARKTRONIC)

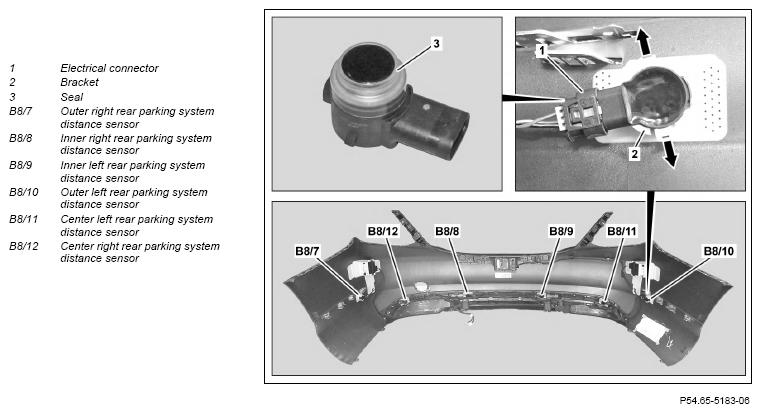

Shown on model 205.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Raise vehicle | AR00.60-P-1002LWG | |
| 2 | Remove rear underfloor paneling | Model 205 with code 235 (Active Parking Assist with PARKTRONIC) Model 253 with engine 274, 276 with code 235 (Active Parking Assist with PARKTRONIC) If only the outer rear right parking system distance sensor (B8/7) is removed/installed. |
AR61.30-P-1001LW |
| 3 | Remove rear right fender liner | Model 253 with engine 642, 651 with code 235 (Active Parking Assist with PARKTRONIC) If only the outer rear right parking system distance sensor (B8/7) is removed/installed. |
AR88.10-P-1400LW |
| 4 | Remove heat shields | If only the outer rear left parking system distance sensor (B8/10) is removed/installed. | |
| 5 | Remove rear bumper | If distance sensors (B8/8, B8/9, B8/11 or B8/12) are removed/installed. | |
| Model 205.2 with code 235 (Active Parking Assist with PARKTRONIC) |
AR88.20-P-2200LWS | ||
| Model 205.0/1/3/4 with code 235 (Active Parking Assist with PARKTRONIC) |
AR88.20-P-2200LW | ||
| Model 253 (except 253.992/993) with code 235 (Active Parking Assist with PARKTRONIC) |
AR88.20-P-2200LWG | ||
| 6 | Detach electrical connection (1) from distance sensors (B8/7, B8/8, B8/9, B8/10, B8/11 or B8/12) | ||
| 7 | Release bracket (2) (arrows), remove distance sensors (B8/7, B8/8, B8/9, B8/10, B8/11 or B8/12) from bracket (2) and check seal (3) | If there are problems ↓ Replace seal (3). |
|
| 8 | Install in the reverse order |
