Remove/Install Fanfare Horns - AR54.35-P-1555LW

Model 205 with engine 274, 276, 626, 651

Model 253 with engine 274, 276, 642, 651

Model 293

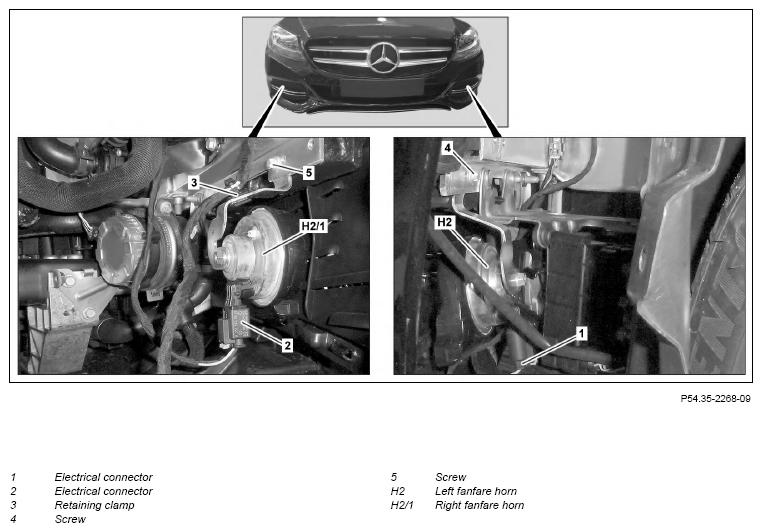

Fig 1: Fanfare Horns Components Location - Model 205 With Engine 274 And 276

Courtesy of MERCEDES-BENZ USA

Shown on model 205

	Remove/install
1	Detach corresponding fender liner far enough until left horn (H2) or right horn (H2/1) is accessible		AR88.10-P-1300LW
2	Detach electrical connection (1) or electrical connection (2)
3	Remove bolt (4) or bolt (5) and remove left horn (H2) or right horn (H2/1)
4	Install in the reverse order
