Remove/Install Left/Right Rear Window Antenna Amplifier - AR82.62-P-8382LW
Model 205.0/1/3
up to model year 2019

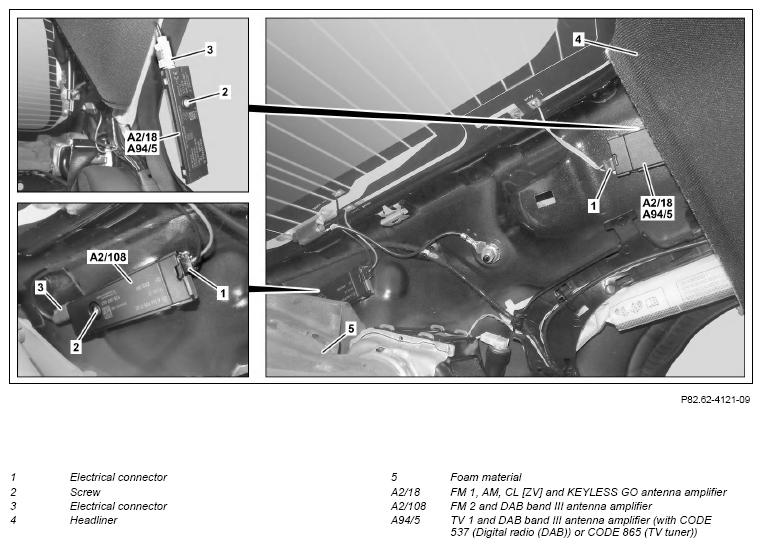

Fig 1: Left/Right Rear Window Antenna Amplifier Components Location - Model 205.0/3; Shown On Model 205.0
Shown on left side of vehicle, model 205.0
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim from C-pillar. | Model 205.0/1 up to model year 2019 |
AR68.30-P-4490LW |
| Model 205.3 up to model year 2019 |
AR68.30-P-4490CLW | ||
| 2 | Remove rear shelf. | When removing FM 2 and DAB band III antenna amplifier (A2/108). | |
| Model 205.0/1 up to model year 2019 |
AR68.30-P-4581LW | ||
| Model 205.3 up to model year 2019 |
AR68.30-P-4581CLW | ||
| 3 | Disconnect electrical connector (1). | ||
| 4.1 | Press roof lining (4) to one side. | When removing FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) or TV 1 and DAB band III antenna amplifier (A94/5). Carefully press headliner (4) to one side. Otherwise the headliner (4) can be damaged. |
|
| 4.2 | Fold foam material (5) to one side. | When removing FM 2 and DAB band III antenna amplifier (A2/108). | |
| 5 | Remove screw/bolt (2). | ||
| 6 | Unclip FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) or FM 2 and DAB band III antenna amplifier (A2/108) or TV 1 and DAB band III antenna amplifier (A94/5) at body and pull out until electrical connector (3) is accessible. | ||
| 7 | Disconnect electrical connector (3) and remove FM 1, AM, CL [ZV] and KEYLESS-GO antenna amplifier (A2/18) or FM 2 and DAB band III antenna amplifier (A2/108) or TV 1 and DAB band III antenna amplifier (A94/5). | ||
| 8 | Install in the reverse order. |
