Remove/Install Electric Vacuum Pump - AR43.05-P-0001MRD

Engine 274.9 in model 205.047/053/054/147/247

Engine 274.9 in model 213.050/053/054/153/155/253

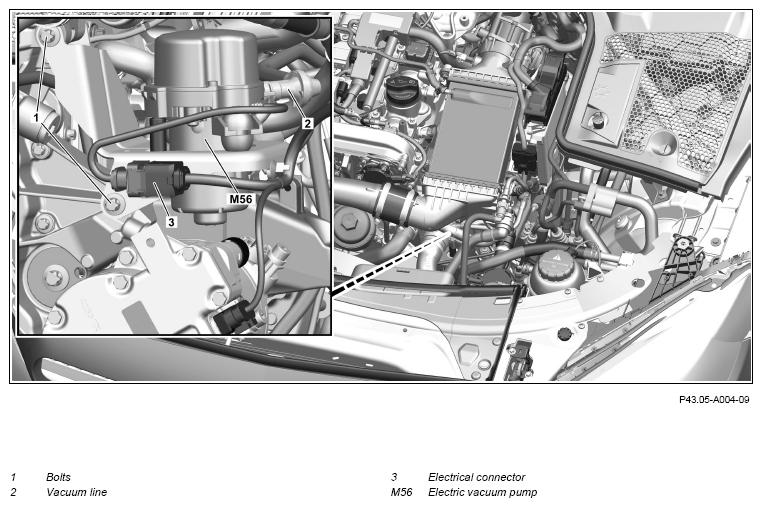

Shown on engine 274.9 in model 213.050

Fig 1: Electric Vacuum Pump for Brakes Components Location - Engine 274.9 in model 205.047; Shown on engine 274.9 in model 213.050

Courtesy of MERCEDES-BENZ USA

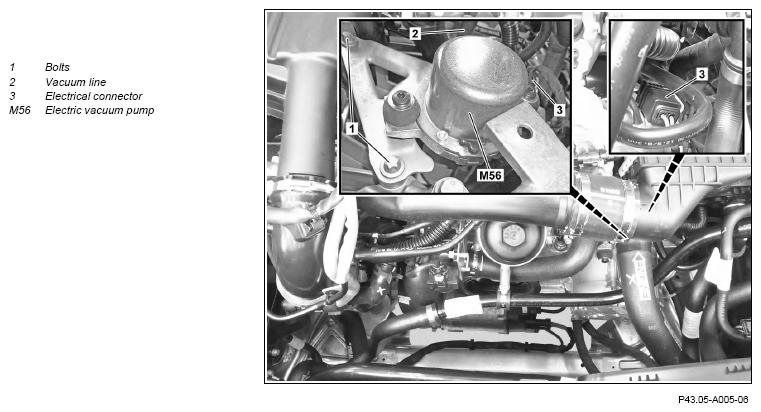

Shown on engine 274.9 in model 213.053

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Reduce vacuum in brake booster by depressing brake pedal several times.
2	Remove engine air intake duct upstream of air filter.
3	Remove upper engine cover.
4	Remove bracket of coolant line between charge air cooler and low-temperature cooler from timing case cover.	Engine 274.9 in model 205.047/147/247 Engine 274.9 in model 213.050/053/054/153/155/253 M6	*BA00.10-P-1002-01A
5	Release vacuum line (2) from electrical vacuum pump (M56) and remove.
6	Release and disconnect electrical connection (3).
7	Unclip electrical wiring harness from bracket of electrical vacuum pump (M56).
8	Remove bolts (1).	Screw/bolt, bracket for electrical vacuum pump to timing case/crankcase	*BA43.05-P-1006-01K
9	Remove electrical vacuum pump (M56) with holder.	As a replacement part, the electrical vacuum pump (1) is only available with the bracket.
10	Install in the reverse order.
11	Reset run time status of electrical vacuum pump (1) using vehicle diagnosis system.	After replacing the electrical vacuum pump (1).
			AD00.00-P-2000-04B
12	Perform brake test on test stand.
			AP42.00-P-4290BA
