Checking Brake Booster - AR43.10-P-0325LW

Model 205

Model 213

Model 253

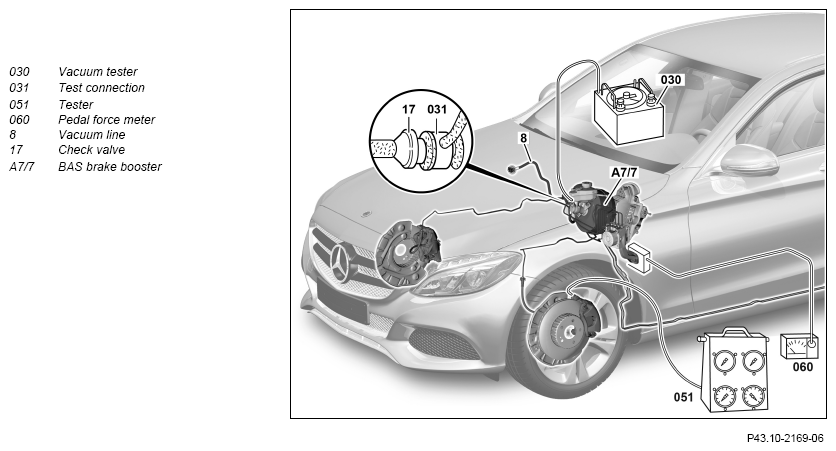

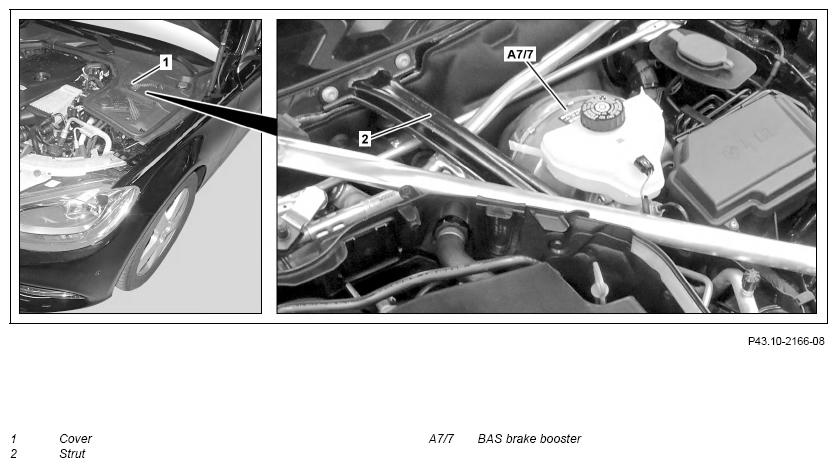

Fig 1: Brake Booster Components Location - Model 205; Shown on model 205.0## 1#

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0## 1#

Shown on model 205.0## 1#

Courtesy of MERCEDES-BENZ USA

	Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid	Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid.	AS42.50-Z-0001-01A
	Brake fluid notes		AH42.50-P-0001-01A
	Remove
1	Remove both wiper arms		AR82.30-P-6100LW
2	Remove cover (1) on the driver side
3	Remove cover (1) on the passenger side	Model 213, 253
4	Remove air-water-duct under the wiper arms	Model 213, 253
5	Remove strut (2)
6	Clean area surrounding cap on brake fluid reservoir	Before opening, clean the areas surrounding the cap thoroughly. Otherwise particles of dirt in the hydraulic components can result in malfunctions and total failure of the brake system.
		Assembly cleaner	*BR00.45-Z-1028-04A
7	Open the cap of the brake fluid reservoir
8	Remove front wheel on the driver side		AR40.10-P-1102A
	Check
9	Connect filling unit to brake fluid reservoir
	000 588 01 82 00 Filling unit		WS25.00-P-0016B
	General brake fluid		BB00.40-P-0330-01A
	Brake fluids (DOT 4 plus)		BB00.40-P-0331-00A
10	Reduce vacuum in BAS brake booster (A7/7) by depressing brake pedal several times
11	Connect vacuum tester (030) with test connection (031) to BAS brake booster (A77)		AR43.10-P-0024-01V
		Vacuum tester	Fig 2
		Test connection	Fig 3
12	Unscrew vent screw at front brake caliper on the driver side and connect test equipment (051)
	000 588 07 21 00 Test equipment	Use correct connection fitting (pitch, cone etc.). Leaks and measurement errors can otherwise occur.	WS42.00-P-0014B
13	Bleed test equipment (051)
14	Connect pedal force meter (060) at brake pedal
	000 588 05 21 00 Roller brake test stand		WS42.00-P-0006B
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
15	Start the engine and generate specified vacuum	If this vacuum is not reached or if it drops immediately, the seal between the BAS brake booster (a7/7) and the master brake cylinder may be damaged or the check valve (17) in the vacuum line (8) may be defective.
		Brake line pressure If the specified vacuum is not reached ↓ Switch off engine and check the check valve (17).	*BE43.10-P-1004-01G
			AR43.10-P-0023LW
16	Replace seal between BAS brake booster (a7/7) and master brake cylinder	If the specified vacuum has not been reached or falls immediately and the check valve (17) is not defective.
			AR42.10-P-0300LW
17	Apply the specified force to the brake pedal and read off the line pressure on the test equipment (051)	Brake line pressure If line pressure is not reached ↓	*BE43.10-P-1004-01G
		Replace BAS brake booster (A7/7).	AR43.10-P-0350LW
18	Turn off engine
19	Remove pedal force meter (060) from brake pedal
20	Disconnect vacuum tester (030) with test connection (031) from BAS brake booster (A7/7)		AR43.10-P-0024-01V
21	Disconnect test equipment (051) with connection fitting and screw in vent screw at brake caliper on the driver side all the way
22	Bleed brake caliper on the driver side	Model 205, 253	AR42.10-P-0010-02LW
		Model 213	AR42.10-P-0010-02LWE
		Model 205 (except 205.086/087/286/287/386/387/486/487) Model 205.086/087/286/287/386/387/486/487 with code B06 (grey-painted brake callipers) Model 205.086/087/286/287/386/387/486/487 with code B07 (Ceramic brake system) Model 205.086/087/286/287/386/387/486/487 with code U70 (red-painted brake callipers) Model 253 Bleed screw at brake caliper	*BA42.10-P-1003-10W
		Model 213 Bleed screw at brake caliper	BA42.10-P-1003-10X
23	Disconnect filling unit from brake fluid reservoir
24	Check and correct fluid level in the brake fluid reservoir
		Model 205	AP42.10-P-4210CAA
		Model 213, 253	AP42.10-P-4210B
	Install
25	Mount front wheel on the driver side		AR40.10-P-1102A
26	Seal brake fluid reservoir using cap
27	Install strut (2)	Screw/bolt, lower strut to suspension strut tower mounting bracket	*BA62.30-P-1003-02K
		Screw/bolt, lower strut to firewall	*BA62.30-P-1004-02K
28	Install air-water-duct under the wiper arms	Model 213, 253
29	Install cover (1) on the passenger side	Model 213, 253
30	Install cover (1) on the driver side
31	Install both wiper arms		AR82.30-P-6100LW
