Line Up Rear Wall Window In The Body Opening - AR67.20-P-2000-04P
Model 197.3, 203.0, 205.0/1/3, 207.3, 209.3, 211.0, 212.0/1, 218.3
Model 230.4
with code P99 (Special model "AMG Black Series")
REAR WINDOW CHECK VALUES
| Number | Designation | Model 203.0 | |
|---|---|---|---|
| BE67.20-P-1001-01E | Distance between top edge seal and rear edge of Dimension "A" roof | mm | 5 |
TEST VALUES FOR LIFTGATE WINDOW, REAR WINDOW
| Number | Designation | Model 211.0 | |
|---|---|---|---|
| BE67.20-P-1001-01F | Distance between rear window molding at top and fixed glass element at rear | mm | 5 |
TEST AND ADJUSTMENT VALUES FOR REAR WALL WINDOW
| Number | Designation | Model 209 | |
|---|---|---|---|
| BE67.20-P-1001-01G | Distance between top edge of window and rear Dimension "A" edge of roof | mm | 5 |
TEST AND ADJUSTMENT VALUES FOR REAR WALL WINDOW
| Number | Designation | Model 207.3 | Model 212 | |
|---|---|---|---|---|
| BE67.20-P-1001-01L | Distance between top edge of rear window and transition between rabbet and rear edge of roof | mm | 5 (±1) | 4, 5 (±1) |
TEST AND ADJUSTMENT VALUES FOR REAR WALL WINDOW
| Number | Designation | Model 218 | |
|---|---|---|---|
| BE67.20-P-1001-01L | Distance between top edge of rear window and transition between rabbet and rear edge of roof | mm | 4, 5 (±1) |
REAR WINDOW
| Number | Designation | Model 205 | |
|---|---|---|---|
| BE67.20-P-1001-01M | Distance between top edge of rear window and transition between rabbet and rear edge of roof | mm | 2, 5 (±1, 0) |
REAR WINDOW
| Number | Designation | Model 205 | |
|---|---|---|---|
| BE67.20-P-1002-01M | Distance between window edge at the side and the C-pillar panel | mm | 3, 1 (±1, 5) |
Shown on model 203.0
Shown on model 211.0
Shown on model 212.0
Shown on model 209.3
- Install cup suction tool on windshield (c).
- Place rear window (c) on body flange (b) with aid of helper.
- Align rear window (c) in body opening.
Model 203.0, 205.0/1/3, 207.3, 209.3, 211.0, 212.0/1, 218.3
Adjust distance dimension (A) with aid of
feeler gauge.
Model 230.4
with code P99 (Special model "AMG Black Series")
Do not adjust rear window (c) with
Shown on model 203.0

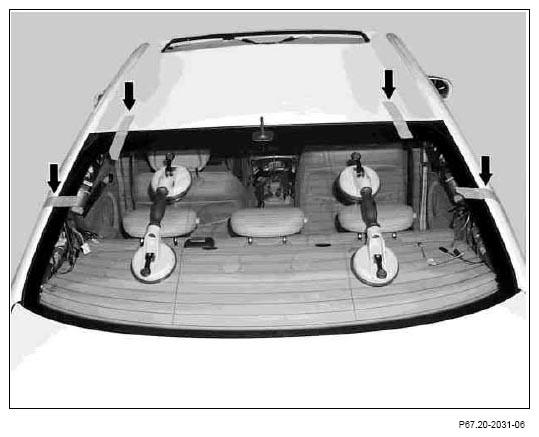

- Glue on strips of tape (arrows) at top and side.
-
- 5.1) Model 203.0, 205.0/1/3, 207.3, 209.3, 211.0, 212.0/1, 218.3
Model 230.4
with code P99 (Special model "AMG Black Series")
Cut adhesive strips (arrows) at outer edges of rear window.
- 5.2) Model 197.3
Cut adhesive strips (arrows) at transition between seal on rear window and body flange.
- 5.1) Model 203.0, 205.0/1/3, 207.3, 209.3, 211.0, 212.0/1, 218.3
- Remove rear window from vehicle.
