Replace Soft Top Compartment Lid - AR77.33-P-1700-01LWR

Model 205.4

Model 238.4

SOFT TOP COMPARTMENT LID

Number Designation Model 205.4
BA77.33-P-1001-03A Screw/bolt, hinge to soft top compartment lid Nm 10
SOFT TOP COMPARTMENT LID

Number Designation Model 238.4
BA77.33-P-1001-03B Screw/bolt, hinge to soft top compartment lid Nm 10
SOFT TOP COMPARTMENT LID

Number Designation Model 205.4
BA77.33-P-1006-03A Screw/bolt, hydraulic cylinder/lock mount to soft top compartment lid Nm 10
SOFT TOP COMPARTMENT LID

Number Designation Model 238.4
BA77.33-P-1006-03B Screw/bolt, hydraulic cylinder/lock mount to soft top compartment lid Nm 10
SOFT TOP COMPARTMENT LID

Number Designation Model 205.4
BA77.33-P-1007-03A Screw/bolt, stop buffer to soft top compartment lid Nm 8
SOFT TOP COMPARTMENT LID

Number Designation Model 238.4
BA77.33-P-1007-03B Screw/bolt, stop buffer to soft top compartment lid Nm 8
Fig 1: Identifying Mounting Wedge (110 589 03 59 00)
G07079389Courtesy of MERCEDES-BENZ USA
G13023796Courtesy of MERCEDES-BENZ USA

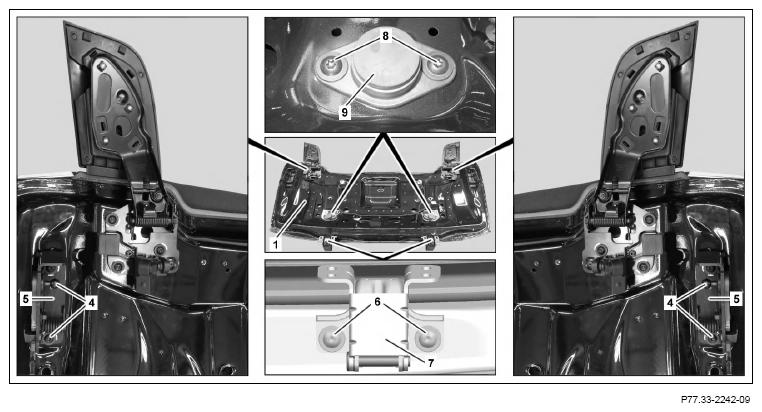

  1. Unscrew screws (4) and remove left and right lock (5) from soft top compartment cover (1). Model 205.4 TORQUE SPECIFICATION Model 238.4 TORQUE SPECIFICATION
  2. Mark position of bolts (6) on left and right hinge (7).
  3. Unscrew screws (6) and remove left and right hinge (7) from soft top compartment cover (1). Model 205.4 TORQUE SPECIFICATION Model 238.4 TORQUE SPECIFICATION
  4. Unscrew screws (8) and remove left and right stop buffer (9) from soft top compartment cover (1). Model 205.4 TORQUE SPECIFICATION Model 238.4 TORQUE SPECIFICATION

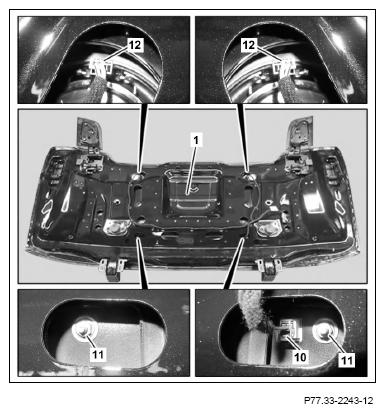

  5. Disconnect electrical connection (10).
  6. Unscrew nuts (11).
  7. Model 205.4, 238.4

    with code 810 (Sound system)

    Disconnect electrical connections (12).

  8. Remove electrical wiring harness from soft top compartment lid (1).
    G13023797Courtesy of MERCEDES-BENZ USA

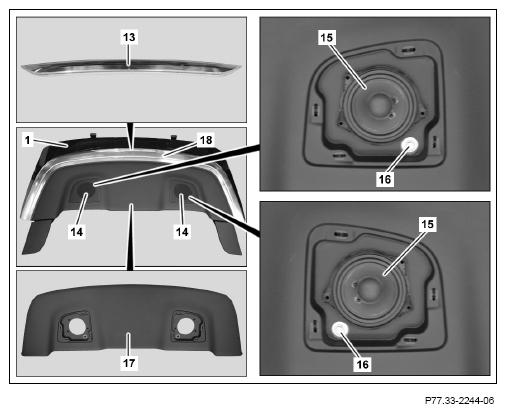

  9. Remove additional brake lamp (13) from soft top compartment lid (1).
  10. Unclip covers (14) with SPECIAL TOOL assembly wedge.
  11. Model 205.4, 238.4

    with code 810 (Sound system)

    Unclip left and right speaker (15) and remove.

  12. Remove screw/bolts (16).
  13. Unclip paneling (17) with SPECIAL TOOL assembly wedge and remove soft top compartment lid (1).
  14. Remove trim piece (18) from soft top compartment lid (1).
  15. Assemble new soft top compartment lid (1) in reverse order.
G13023798Courtesy of MERCEDES-BENZ USA
