Remove/Install Soft Top Tension Cable - AR77.33-P-1005LWR
Model 205.4
Model 238.4

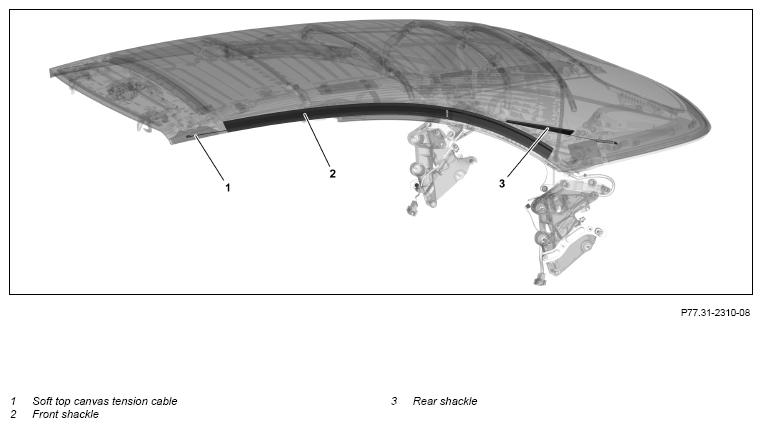

Shown on left side of vehicle
Shown on left side of vehicle
Shown on left side of vehicle
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Remove/install | |||
| 1 | Remove paneling from soft top at front | AR68.30-P-4320LWR | |
| 2 | Move soft top to repair position R3 | AR77.30-P-1030LWR | |

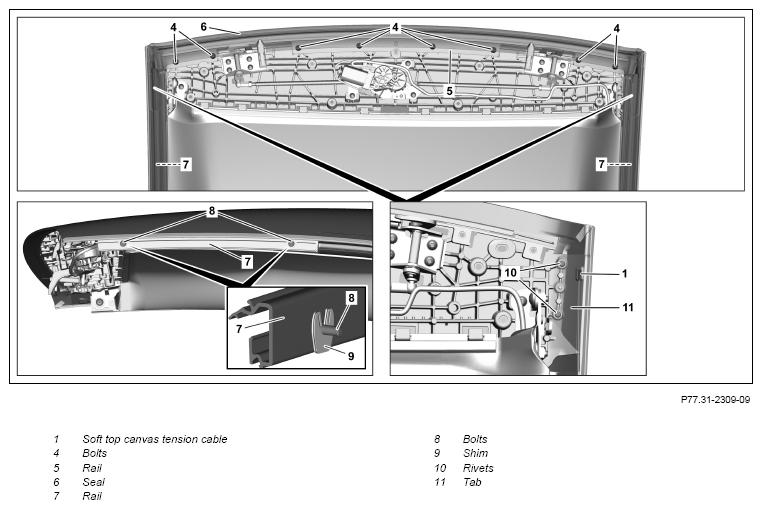

| 3 | Mark installation position of bolts (4) on strip (5) | ||
| 4 | Unscrew bolts (4) from strip (5) | ||
| 5 | Remove seal (6) on outer left and right on rails (7) and remove together with strip (5) | ||
| 6 | Mark installation position of bolts (8) on rail (7) | ||
| 7 | Unscrew bolts (8) from rail (7) and remove rail (7) | Align rail (7) according to markings. |
|
| 8 | Knock off rivets (10) and remove rivet residues | ||
| 9 | Loosen shackle (11) | ||
| 10 | Remove adhesive strips above ends of cable on soft top canvas tension cable (1) and unhook cable ends | ||

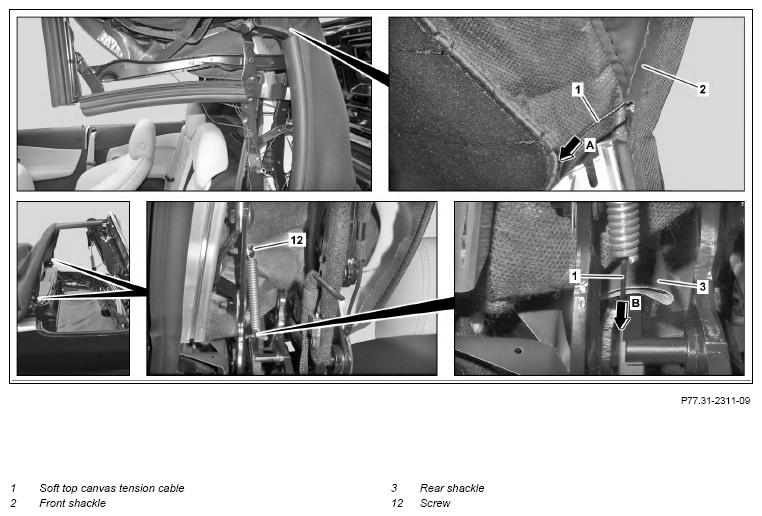

| 11 | Pull soft top canvas tension cable (1) of front shackle (2) toward rear (arrow A) | ||
| 12 | Move soft top to repair position R2 | AR77.30-P-1030LWR | |
| 13 | Unscrew screw/bolt (12) | ||
| 14 | Pull soft top canvas tension cable (1) out of rear shackle (3) toward rear (arrow B) | ||
| 15 | Install in the reverse order |
