Remove/Install Rear Panoramic Roof Roller Sun Blind - AR77.21-P-0201NKX
Model 156
with code 413 (Automatic panoramic sliding sunroof)
Model 205.0/1/2
with code 413 (Automatic panoramic sliding sunroof)
Model 253
with code 413 (Automatic panoramic sliding sunroof)

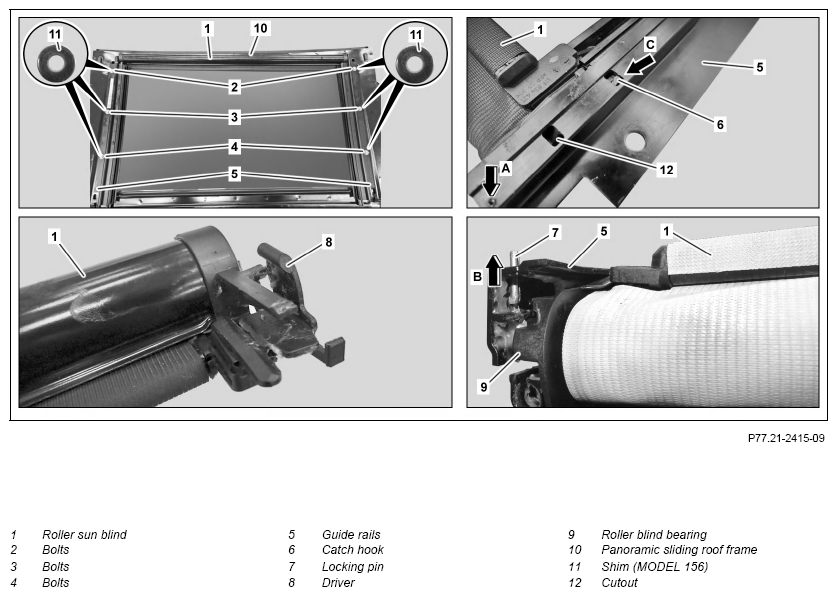

Shown on model 156
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1.1 | Detach headliner from roof and lay down in vehicle interior | Model 205.0/1 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300LW |
| 1.2 | Remove headliner and take out from vehicle through opening of liftgate with aid of helper | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205.2 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
|
| Model 156 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300NKX | ||
| Model 205.2 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300LWS | ||
| 2 | Remove left and right guide tube for roller sun blind drive cable | AR77.21-P-0232NKX | |
| 3 | Unscrew bolts (2, 4) on left and right side of panoramic sliding roof frame (10) | with code 413 (Automatic panoramic sliding sunroof) Washers (11) are located at the bolts (2, 4) between guide rails (5) and panoramic sliding roof frame (10). with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) The guide rails (5) are fastened with an additional bolt (4). |
|
| 4 | Remove bolts (3) | with code 413 (Automatic panoramic sliding sunroof) Washers (11) are located at the bolts (3) between guide rails (5) and panoramic sliding roof frame (10). |
|
| 5 | Remove washers (11) | Model 156 with code 413 (Automatic panoramic sliding sunroof) |
|
| 6 | Remove guide rails (5) with roller sun blind (1) and remove from vehicle | ||
| 7 | Release catch hooks (6) and slide both roller blind bearings (9) backward until catch hooks (6) engage in rear cutout (arrow C) in left and right guide rail (5) | ||
| 8 | Remove lockings pins (7) with 0 2 mm punch from both guide rails (5) in direction of arrow (arrow B) | ||
| 9 | Release catch hook (6) of left and right roller blind bearing (9) on guide rails (5) and pull left and right roller blind bearing (9) out of guide rails (5) | ||
| Install | |||
| 10 | Position roller sun blind (1) with both roller blind bearings (9) on guide rails (5) | ||
| 11 | Press catch hook (6) down on roller blind bearings (9) and slide both roller blind bearings (9) into guide rails (5) until catch hooks (6) engage in rear cutout (arrow C) in left and right guide rail (5) | ||
| 12 | Install locking pins (7) in direction of arrow (arrow A) in left and right guide rail (5) | ||
| 13 | Position guide rails (5) with roller sun blind (1) on panoramic sliding roof frame (10) | ||
| 14 | Position washers (11) | Model 156 with code 413 (Automatic panoramic sliding sunroof) |
|
| 15 | Screw in bolts (2) on left and right side of panoramic sliding roof frame (10) to stop | ||
| 16 | Screw in bolts (3, 4) on left and right side of panoramic sliding roof frame (10) to stop | with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) The guide rails (5) are fastened with an additional bolt (4). |
|
| 17 | Tighten bolts (2) with roller sun blind (1) open | ||
| 18 | Tighten bolts (4) with roller sun blind (1) closed | with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) The guide rails (5) are fastened with an additional bolt (4). |
|
| 19 | Tighten bolts (3) with roller sun blind (1) open | ||
| 20 | Press catch hooks (6) on roller blind bearings (9) down and slide both roller blind bearings (9) forward into guide rails (5) until catch hooks (6) engage in front cutout (12) in left and right guide rail (5) | The catch hooks (6) should engage fully in the front cutout (12) in the left and right guide rail (5). Otherwise a teach-in run for the automatic reversing panoramic sliding roof reversing function is not possible later. |
|
| 21 | Manually close roller sun blind (1) and ensure it runs tension-free in the guide rails (5) | Install guide rails (5) and roller sun blind (1) free of tension. Otherwise noises can occur when the roller sun blind (1) is actuated. If the roller sun blind (1) is under tension when running in the guide rails (5): ↓ Loosen bolts (2, 3, 4) on left and right guide rail (5), repeat operation steps 16 to 19 and then close roller sun blind (1) again by hand. |
|
| 22 | Install left and right guide tube for roller sun blind drive cable | AR77.21-P-0232NKX | |
| 23 | Install headliner | Model 156 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300NKX |
| Model 205.0/1 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300LW | ||
| Model 205.2 with code 413 (Automatic panoramic sliding sunroof) |
AR68.30-P-4300LWS | ||
| Model 253 with code 413 (Automatic panoramic sliding sunroof) |
|||
| 24 | Normalize panoramic sliding roof with diagnostic system and perform teach-in run for automatic reversing function | Model 156 with code 413 (Automatic panoramic sliding sunroof) Model 205.0/1/2 with code 413 (Automatic panoramic sliding sunroof) Model 253 with code 413 (Automatic panoramic sliding sunroof) |
|
| Model 156 with code 413 (Automatic panoramic sliding sunroof) |
AD00.00-P-2000-04A | ||
| Model 205.0/1/2 with code 413 (Automatic panoramic sliding sunroof) |
AD00.00-P-2000-04B |
