Remove/Install Electric Motor For Soft Top Lock - AR77.39-P-5000LCA
Model 205.4
Model 217.4
Model 238.4
| Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities. | No parts of the body or limbs should be within the operating area of mechanical components when moving components. | AS00.00-Z-0009-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury when performing check and repair work in area of roll bar | Keep body parts out of the area where the roll bars extend. Do not use the cover in the area of the roll bar as a storage place for objects. |
AS91.00-Z-0003-01LCA | |
| Remove/install | |||

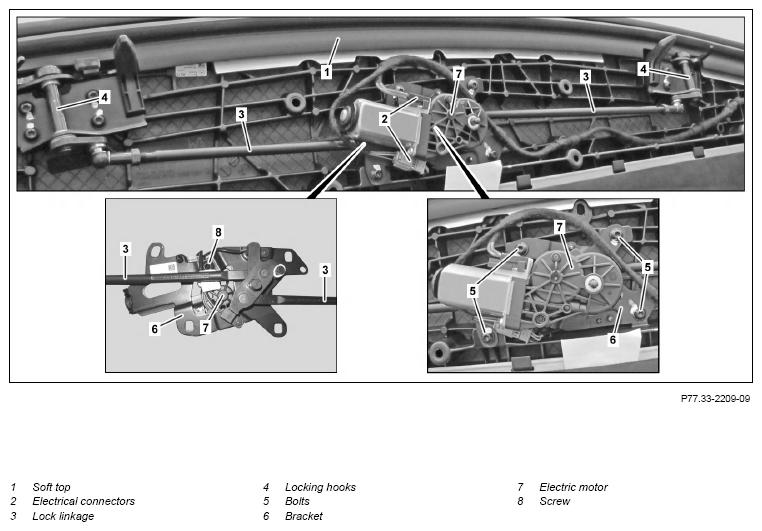

| 1 | Remove trim from soft top (1) at front | Model 217.4 | AR68.30-P-4320LCA |
| Model 205.4, 238.4 | AR68.30-P-4320LWR | ||
| 2 | Disconnect electrical connectors (2) and expose wiring harness | ||
| 3 | Remove lock linkage (3) at left and right locking hooks (4) | ||
| 4 | Mark installation position of bolts (5) on bracket (6) and unscrew bolts (5) | ||
| 5 | Remove lock linkage (3) with electric motor (7) | ||
| 6 | Unscrew bolt (8) | ||
| 7 | Mark installation position of lock linkage (3) on bracket (6) | ||
| 8 | Remove lock linkage (3) from electric motor (7) and electric motor (7) from bracket (6) | ||
| 9 | Install in the reverse order |
