Disconnect Hydraulic Lines From Hydraulic Pump And Connect - AR77.37-P-1000-04LWR
Model 205.4
Model 238.4
| Risk of injury to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid. | Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses. | AS00.00-Z-0013-01A |
SOFT TOP HYDRAULIC SYSTEM
| Number | Designation | Model 205.4 | |
|---|---|---|---|
| BA77.37-P-1002-01D | Bolt, connection plate to hydraulic unit | Nm | 4 |
SOFT TOP HYDRAULIC SYSTEM
| Number | Designation | Model 238 | |
|---|---|---|---|
| BA77.37-P-1002-01E | Bolt, connection plate to hydraulic unit | Nm | 4 |

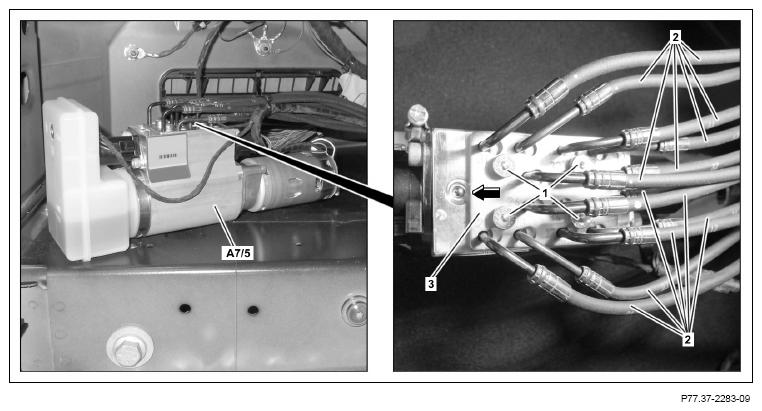

- Remove screw/bolts (1). Model 205.4
Model 238.4
- Release hydraulic lines (2) by moving (arrow) connection plate (3).
- Pull hydraulic lines (2) out of soft top control hydraulic unit (A7/5).
The hydraulic lines (2) are marked with numbers which coincide with the numbers on the connection plate (3).
- Catch hydraulic oil running out.
- Close hydraulic lines (2) and connections to soft top control hydraulic unit (A7/5) with
stop plug.
- Connect hydraulic lines (2) in opposite order.
