Cut Out Panoramic Roof Frame - AR77.21-P-0800-01LF

Model 205.0/1/2/3 with code 413 (Automatic panoramic sliding sunroof)

Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)

Model 222 with code 413 (Automatic panoramic sliding sunroof)

Model 253 with code 413 (Automatic panoramic sliding sunroof)

	Risk of injury  due to snapping or warming up of cutting wire and due to splinters when cutting out glued panoramic roofs	Wear cut-proof gloves and safety glasses.	AS77.21-Z-0002-01A
	Notes on removal/installation of bonded elements of panoramic roof		AH77.21-P-0001-01A

Fig 1: Identifying Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Set Of Shields (222 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Work procedure is shown on model 222.

Helper required to cut adhesive beads.

1. Cove adjacent paint surfaces with shields.

   Cover adjacent paint surfaces with shields when cutting.

   Otherwise paint can be damage by cutting wire.

2. Punch through adhesive bead at rear right corner on front panoramic sliding roof frame (1) with pull-in aid (3) as shown and guide cutting wire through.

   Courtesy of MERCEDES-BENZ USA

3. Cut through adhesive bead (2) on front panoramic sliding sunroof frame (1) in the cutting area (A).

   Courtesy of MERCEDES-BENZ USA

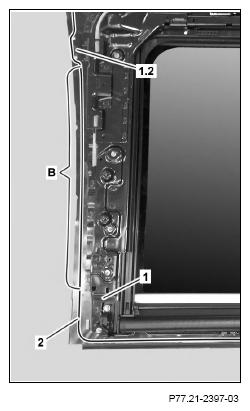

4. Cut through adhesive bead (2) on front panoramic sliding sunroof frame (1) in the cutting area (B), up to the right reinforcement (1.2).

   Courtesy of MERCEDES-BENZ USA

5. Punch adhesive bead on rear flange of the front panoramic sliding sunroof frame (1) with pull-in device (3) as shown and guide through cutting wire.

   Courtesy of MERCEDES-BENZ USA

   Courtesy of MERCEDES-BENZ USA

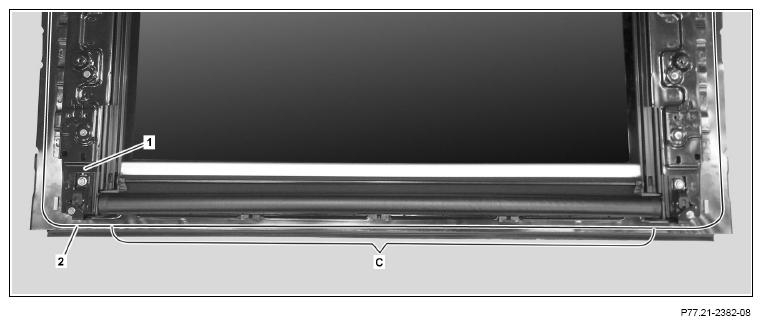

6. Cut adhesive bead (2) on front panoramic sliding roof frame (1) in cutting area (C).
7. Punch adhesive bead on rear left corner or front panoramic sliding roof frame (1) with pull-in device (3), as shown and guide through cutting wire.

   Courtesy of MERCEDES-BENZ USA

8. Cut adhesive bead (2) on front panoramic sliding roof frame (1) in cutting area (D).

   Courtesy of MERCEDES-BENZ USA

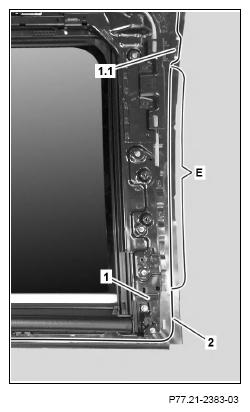

9. Cut adhesive bead (2) on front panoramic sliding roof frame (1) in cutting area (E) up to left reinforcement (1.1).
10. Behind the left reinforcement (1.1), insert an assembly wedge between the front panoramic sliding sunroof frame (1) and the side roof frame.

    The assembly wedge lifts front panoramic sliding roof frame (1) and cutting wire can be guided below right reinforcement (1.1).

    Courtesy of MERCEDES-BENZ USA

    Courtesy of MERCEDES-BENZ USA

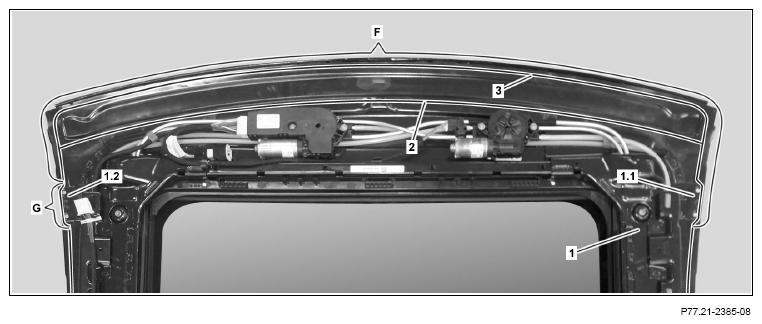

11. Cut adhesive beads (2, 3) on front panoramic sliding roof frame (1) in cutting area (F) up to right reinforcement (1.2).

    The profiling at the front of the roof frame can make it difficult to cut through the glue beads (2, 3), because the cutting wire runs directly on the sheet metal flange.

12. Behind the right reinforcement (1.2) insert an assembly wedge between the front panoramic sliding sunroof frame (1) and the front roof frame.

    The assembly wedge lifts front panoramic sliding roof frame (1) and cutting wire can be guided below right reinforcement (1.2).

13. Cut adhesive bead (2) on front panoramic sliding roof frame (1) in cutting area (G).
