Apply Adhesive Material To Front Glass Cover - AR77.21-P-7010-04NKA
Model 117, 156, 176, 205, 222, 253 with code 413 (Automatic panoramic sliding sunroof)
Model 222 with code 398 (Panoramic roof with MAGIC SKY CONTROL)
| Notes on removal/installation of bonded elements of panoramic roof | AH77.21-P-0001-01A |
MODIFICATION NOTES
| 29.05.2018 | Notes on removal/installation of bonded elements of panoramic roof added. |

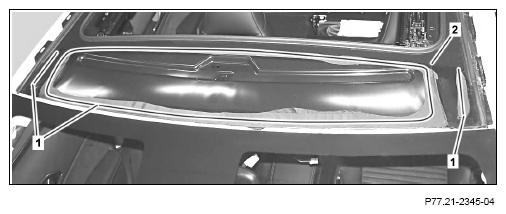

Shown on MODEL 176
- Guide electric squeeze gun with application nozzle along bonding surfaces (1) on panoramic sliding sunroof frame (2) and apply adhesive material evenly.
- Immediately remove soiling caused by adhesive.
Only if necessary.
- Completely press excess adhesive out immediately after application and dispose of it properly.
