Align End Stops For Soft Top Supports - AR77.30-P-0002-01LWR

Model 205.4

Model 238.4

Fig 1: Identifying Device (217 589 00 31 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Adapter Kit (205 589 01 31 00)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

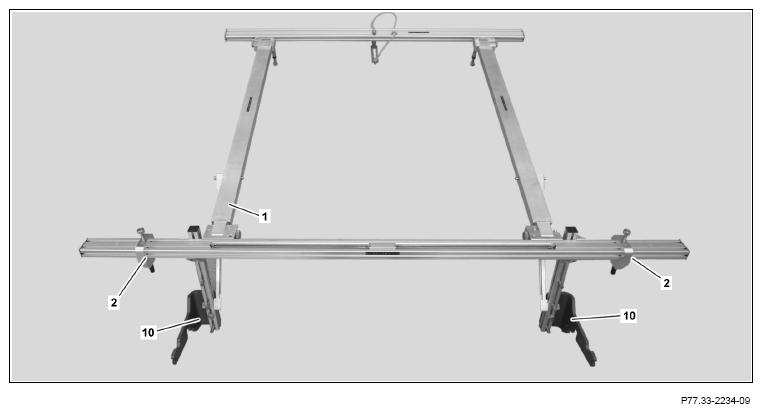

1. Assemble device (1) with adapters as shown (10) and adjust sliding pieces (2) to corresponding markings.

   Courtesy of MERCEDES-BENZ USA

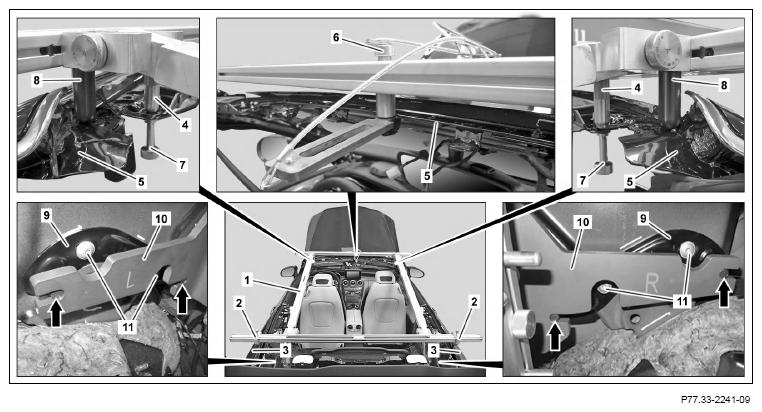

2. Lay device (1) together with sliding pieces (2) down on rear fenders (3) and with bolts (4) on windshield frame (5).

   Carefully lay down device (1).

   Otherwise the paint and detachable parts can be damaged.

   Helper required.

3. Align device (1) with fit bolt (6) in center on windshield frame (5) and fix in place.
4. Screw in bolts (7) on left and right outside of windshield frame (5) into bolts (4)

   The end stops (8) must make contact with the windshield frame (5).

5. Insert left and right end stop (9) for soft top support in adapters (10), slide forward until end stop (arrows) and tighten screws (11) Model 205.4

   Model 238.4

6. Remove device (1).

   Carefully move out device (1) and remove.

   Otherwise the paint and detachable parts can be damaged.

   Helper required.

7. Disassemble device (1).
