Remove/Install Outside Mirror Trim - AR88.70-P-9040LF

Model 205, 213, 217, 222, 238, 253, 293

Courtesy of MERCEDES-BENZ USA

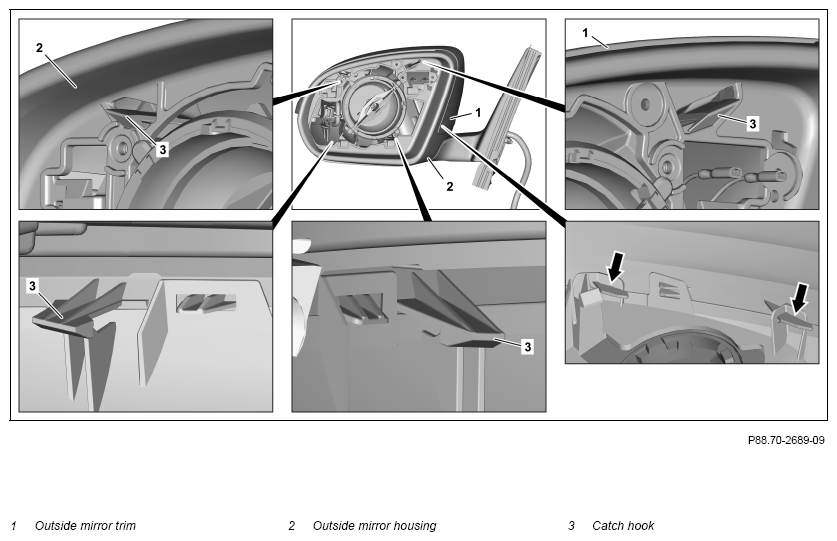

Shown on left outside mirror, model 222

Courtesy of MERCEDES-BENZ USA

Shown on left outside mirror, model 222

	Remove/install
1	Remove mirror lens.		AR88.70-P-9020LF

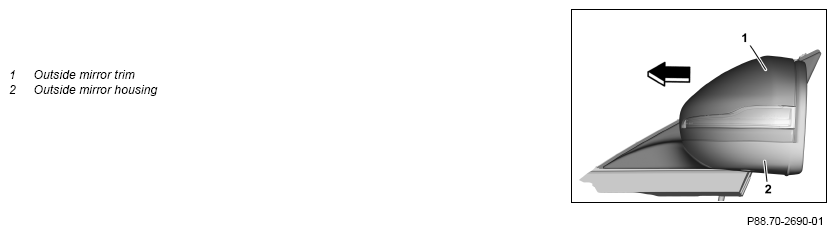

2	Release catch hooks (3) and remove outside mirror trim (1) toward the front from the outside mirror housing (2).	Move guides (arrows) on outside mirror paneling (1) at inside into outside mirror housing (2).
3	Install in the reverse order
