Adjust Trunk Lid - AR88.50-P-0002LWR

Model 205.4, 207.4, 238.4

MODIFICATION NOTES

14.10.2019

Method modified.

Courtesy of MERCEDES-BENZ USA

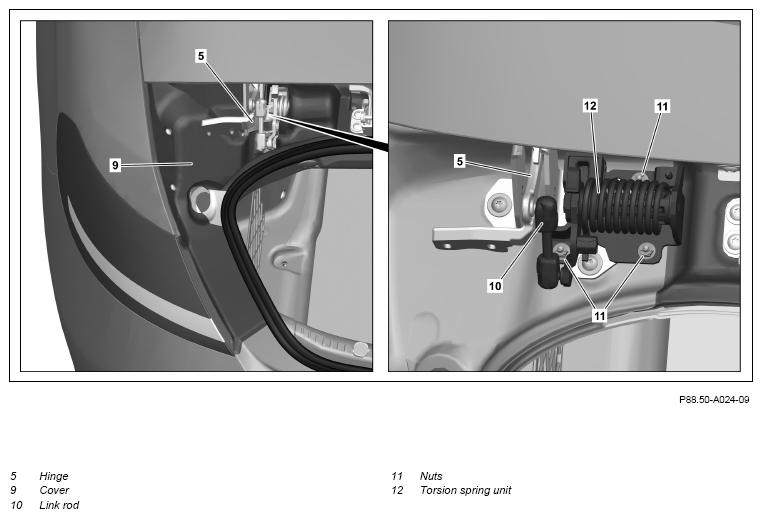

Shown on model 205.4 at left side of vehicle with removed trunk lid

Courtesy of MERCEDES-BENZ USA

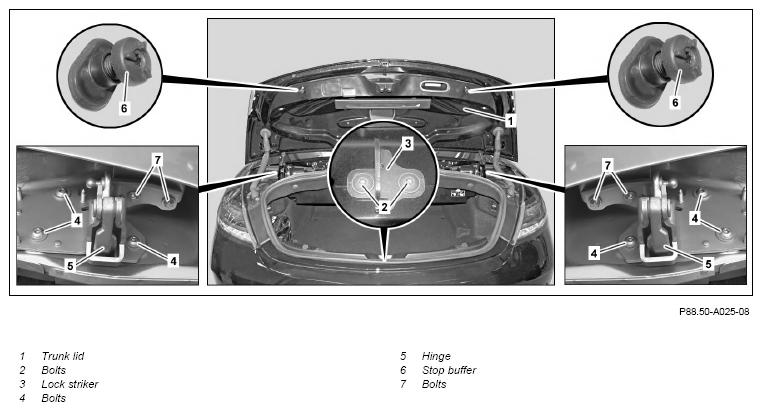

Shown on model 205.4

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Check
1	Check gaps.	Model 205.4	AR60.00-P-0700-01LW
		Model 207.4	AR60.00-P-0700-01EC
		Model 238.4	AR60.00-P-0700-01LWO
		Model 205.4 Trunk lid to fender at rear, top	*BE60.00-P-1012-01BB
		Model 205.4 Trunk lid to bumper	*BE60.00-P-1014-01BB
		Model 205.4 Soft top compartment lid to trunk lid	*BE60.00-P-1035-01BB
		Model 205.4 Outside of tail lamp to inside of taillamp	*BE60.00-P-1022-01BB
		Model 207.4 Gap dimension	BE60.00-P-1003-01W
		Model 207.4 Gap dimension	BE60.00-P-1005-01W
		Model 238.4 Trunk lid to fender at rear, top	BE60.00-P-1009-01HA
		Model 238.4 Trunk lid to bumper	BE60.00-P-1011-01HA
		Model 238.4 Soft top compartment lid to trunk lid	BE60.00-P-1022-01HA
		Model 238.4 Outside of taillamp to inside of taillamp	BE60.00-P-1014-01HA
		Feeler gauge	Fig 1
	Remove
2	Remove rear-end center-section trim.	Model 205.4, 207.4, 238.4
		Model 205.4, 238.4	AR68.30-P-4785LW
3	Release screws (2) of lock striker (3).
4	Remove covers (9).	If the trunk lid (1) is adjusted in the longitudinal or transverse direction.
5	Disconnect link rods (10) from ball pin at left and right hinge (5).	Model 205.4, 238.4 If the trunk lid (1) is adjusted in the longitudinal or transverse direction.
6	Remove nuts (11) at left and right torsion spring unit (12).	Model 205.4, 238.4 If the trunk lid (1) is adjusted in the longitudinal or transverse direction.
7	Remove torsion spring unit (12) on left and right.	Model 205.4, 238.4 If the trunk lid (1) is adjusted in the longitudinal or transverse direction.
	Adjustment in longitudinal and/or transverse direction
8	Release screws (4) at left and right hinge (5).
9	Adjust trunk lid (1) in longitudinal and/or transverse direction.	Model 205.4 Trunk lid to fender at rear, top	*BE60.00-P-1012-01BB
		Model 205.4 Soft top compartment lid to trunk lid	*BE60.00-P-1035-01BB
		Model 205.4 Outside of taillamp to inside of taillamp	*BE60.00-P-1022-01BB
		Model 207.4 Gap dimension	BE60.00-P-1003-01W
		Model 207.4 Gap dimension	BE60.00-P-1005-01W
		Model 238.4 Trunk lid to fender at rear, top	BE60.00-P-1009-01HA
		Model 238.4 Soft top compartment lid to trunk lid	BE60.00-P-1022-01HA
		Model 238.4 Outside of taillamp to inside of taillamp	BE60.00-P-1014-01HA
		Feeler gauge	Fig 1
10	Tighten screws (4) at left and right hinge (5).	Model 207.4 Mount, hinge lever to body	BA88.50-P-1001-01E
		Model 205.4, 238.4 Bolt, mounting console to body	*BA88.50-P-1003-03A
	Adjust height
11	Fully screw in stop buffers (6).
12	Release screws (7) on left and right.
13	Adjust height of trunk lid (1) relative to soft top compartment cover.	Upper edge of trunk lid (1) must be flush with soft top compartment cover and fenders.
14	Tighten screws (7) on left and right.	Model 205.4, 238.4 Bolt, hinge bracket to trunk lid	*BA88.50-P-1001-03A
		Model 207.4 Nut/bolt, hinge lever to trunk lid	BA88.50-P-1002-01E
15	Adjust height of trunk lid (1) relative to bumper by moving lock striker (3).	Upper edge of trunk lid (1) must be flush with fenders.
		Model 205.4 Trunk lid to bumper	*BE60.00-P-1014-01BB
		Model 207.4 Gap dimension	BE60.00-P-1003-01W
		Model 238.4 Trunk lid to bumper	BE60.00-P-1011-01HA
		Feeler gauge	Fig 1
16	Align lock striker (3) so that centered with trunk lid lock and tighten screws (2).
17	Mark stop buffers (6) in contact area with chalk.
18	Screw in stop buffers (6) in small steps until trunk lid (1) rests on stop buffers (6) in closed condition.	A chalk mark must be visible on contact surface.
19	Unscrew left and right stop buffer (6) by one quarter turn.	To prevent vibrations, the trunk lid (1) is slightly tensioned.
	Install
20	Repair paint damage in area of hinges (5) with primer filler and/or touch-up paint pen.	Use only primer filler and paints approved by Daimler AG
21	Install torsion spring unit (12) on left and right.	Model 205.4, 238.4 If the trunk lid (1) has been adjusted in the longitudinal or transverse direction.
22	Attach and tighten nuts (11) at left and right torsion spring unit (12).	Model 205.4, 238.4 If the trunk lid (1) has been adjusted in the longitudinal or transverse direction.
23	Attach link rods (10) at left and right hinge (5).	Model 205.4, 238.4 If the trunk lid (1) has been adjusted in the longitudinal or transverse direction.
24	Install covers (9).	If the trunk lid (1) has been adjusted in the longitudinal or transverse direction.
25	Install rear-end center-section trim.	Model 205.4, 207.4, 238.4
		Model 205.4, 238.4	AR68.30-P-4785LW
	Calibrate
26	Calibrate rear 360° camera with vehicle diagnosis system.	Model 205.4, 207.4, 238.4 with code 501 (360° camera)
		Model 205.4 with code 501 (360° camera)	AD00.00-P-2000-04B
		Model 207.4 with code 501 (360° camera)	AD00.00-P-2000-04A
		Model 238.4 with code 501 (360° camera)	AD00.00-P-2000-06LWO

CHECK VALUES FOR GAPS

Number	Designation				Model 207.4
BE60.00-P-1003-01W	Gap dimension	Trunk lid to rear fender, top	Dimension "H"	mm	4 (±1)
		Trunk lid to bumper	Dimension "I"	mm	5, 5 (±2)
		Rear fender to taillamp	Dimension "J"	mm	2 (+1, 5/-1)
		Taillamp to bumper	Dimension "K"	mm	2 (±1)
		Taillamp, trunk lid to taillamp	Dimension "L"	mm	4 (±1)
			For picture see		AR60.00-P-0700-01EC

CHECK VALUES FOR GAPS

Number	Designation				Model 207.4
BE60.00-P-1005-01W	Gap dimension	Soft top compartment lid to rear fender	Dimension "N"	mm	4 (±1)
		Soft top compartment lid to trunk lid	Dimension "O"	mm	4 (+1, 5/-0, 5)
		Wind deflector to A-pillar	Dimension "P"	mm	3, 5 (±1, 5)
		Wind deflector to water deflector	Dimension "Q"	mm	2, 1 (±1)
			For picture see		AR60.00-P-0700-01EC
