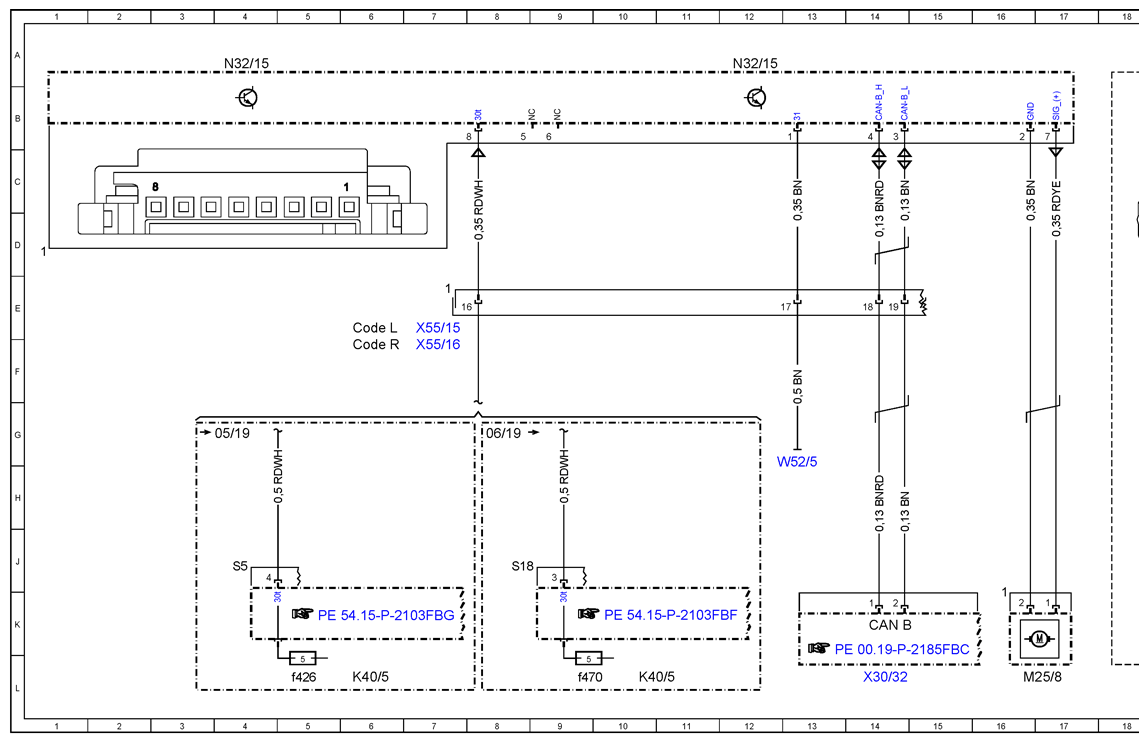

Wiring Diagram For Multicontour Seat Control Unit - PE91.25-P-2103-97FBC
Model 205
as of model year 2019
with code 409 (Left And Right Front Multicontour Seat)
Control Unit N32/15
| Code: | Designation: | Position: |
|---|---|---|

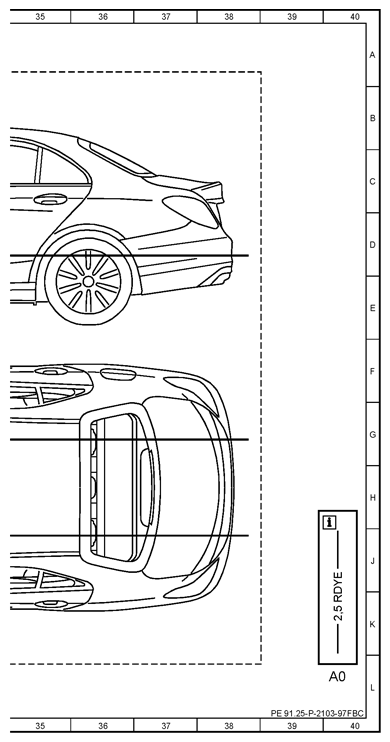

| A0 | Use of wiring diagrams | 40L |
| CAN B | Interior CAN | 14K |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 27J |
| Code R | RIGHT-HAND DRIVE | 6F |
| Code R | RIGHT-HAND DRIVE | 27G |
| K40/5 | Rear fuse and relay module | 6L |
| K40/5 | Rear fuse and relay module | 10L |
| K40/5f426 | Fuse 426 | 5L |
| K40/5f470 | Fuse 470 | 9L |
| M25/8 | Left front multicontour seat pneumatic pump | 16L |

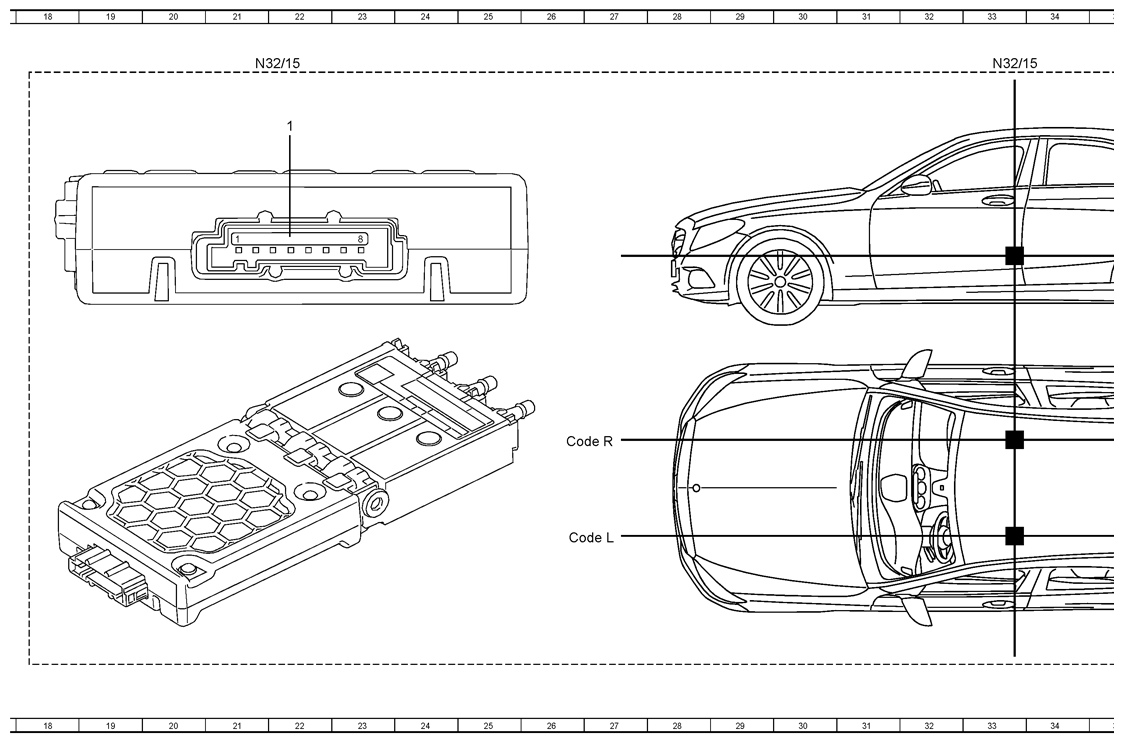

| N32/15 | Left front multicontour seat control unit | 4A |
| N32/15 | Left front multicontour seat control unit | 12A |
| N32/15 | Left front multicontour seat control unit | 33A |
| N32/15 | Left front multicontour seat control unit | 21A |
| W52/5 | Left center longitudinal member ground point | 13H |
| X30/32 | Left interior CAN (CAN B) potential distributor electrical connector | 14L |
| X55/15 | Driver seat electrical connector | 7E |
| X55/16 | Front passenger seat electrical connector | 7F |
