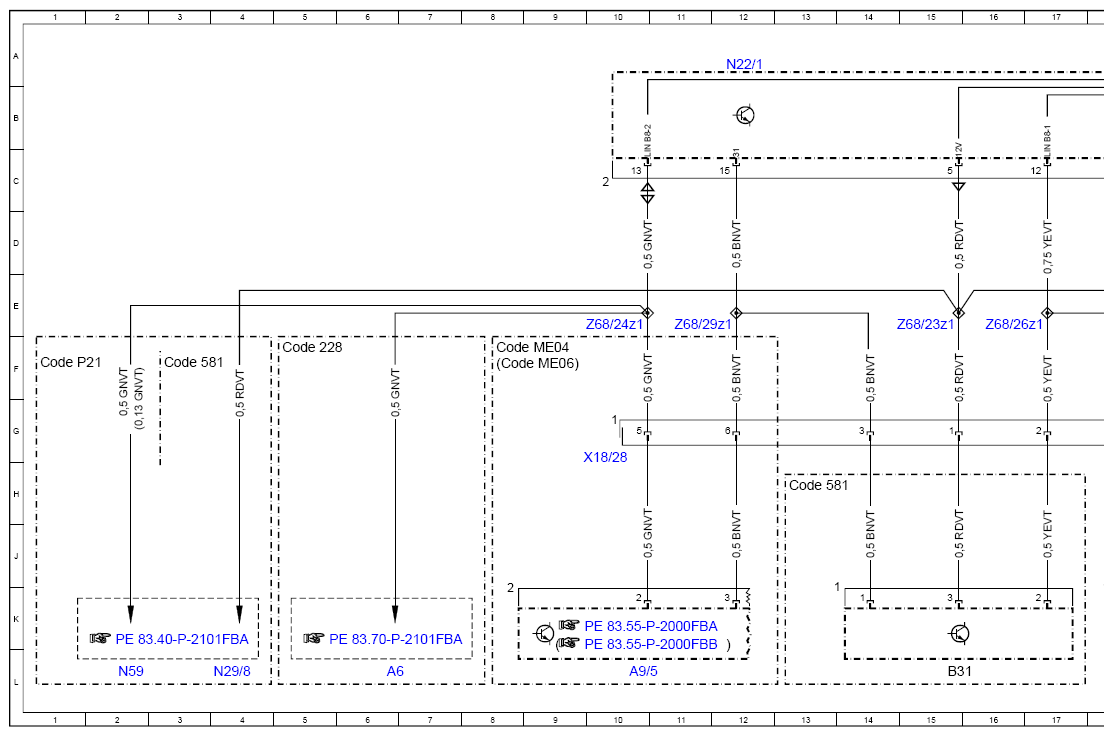

Wiring Diagram Of Automatic AIR CONDITIONING (AAC) Control Unit - PE83.40-P-2101-97FBB
Model 205
up to model year 2019
Control Unit N22/1
Specification 2
Model 253 (except 253.99)
up to model year 2020
Control Unit N22/1
Specification 2
| Code: | Designation: | Position: |
|---|---|---|
| AO | Use of wiring diagrams | 96L |
| A32 | AC housing | 36L |
| A32m1 | Blower motor | 35L |
| A32n1 | Blower regulator | 36L |
| A6 | Stationary heater unit | 6L |
| A9/5 | Electric refrigerant compressor | 10L |

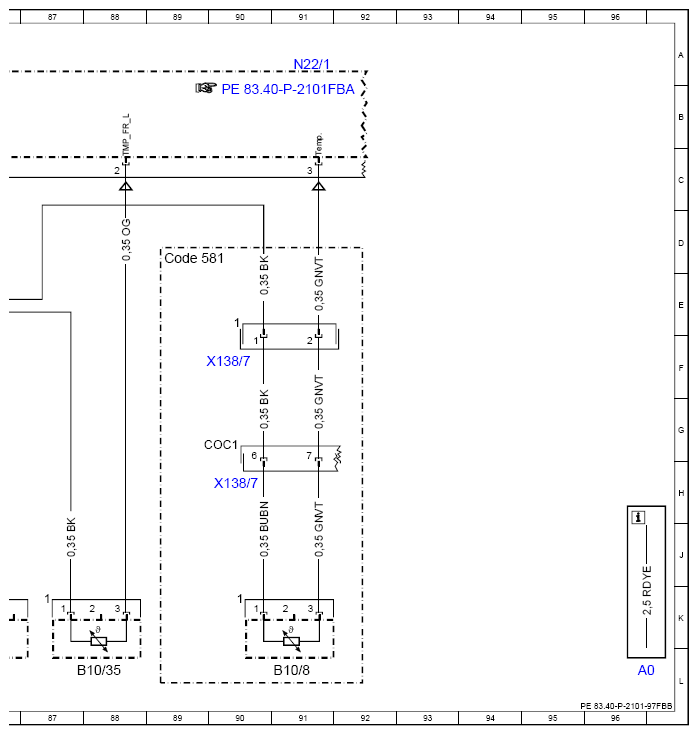

| B10/35 | Left footwell air outlet temperature sensor | 88L |
| B10/36 | Right footwell air outlet temperature sensor | 84L |
| B10/6 | Evaporator temperature sensor | 86L |
| B10/8 | Rear center air vent air outlet temperature sensor | 91L |
| B31 | Air quality sensor | 15L |
| Code 228 | Stationary heater | 5F |
| Code 401 | Seat climate control for driver and front passenger | 71F |
| Code 463 | Head-Up Display | 71F |
| Code 580 | Air conditioning | 60D |
| Code 581 | THERM0TR0NIC Automatic Air Conditioning | 13H |
| Code 581 | THERM0TR0NIC Automatic Air Conditioning | 3F |
| Code 581 | THERM0TR0NIC Automatic Air Conditioning | 42D |
| Code 581 | THERM0TR0NIC Automatic Air Conditioning | 89D |
| Code 581 | THERM0TR0NIC Automatic Air Conditioning | 81F |
| Code 824 | Additional parts for countries with cold temp. | 71G |
| Code 873 | Seat heater for driver and front passenger | 71G |
| Code L | Left-Hand Drive | 32H |
| Code M274 | Spark-Ignition EngineM274 | 71F |
| Code M626 | Diesel Engine 0M626 | 71H |
| Code M642 | Diesel Engine 0M642 | 71G |
| Code M651 | Diesel Engine 0M651 | 71H |
| Code ME04 | Hybrid Drive 20 kW Variant | 8F |
| Code ME06 | Hybrid Drive 50 kW Variant (Including Plug-In) | 8F |
| Code P21 | AIR-BALANCE package | 29H |
| Code P21 | AIR-BALANCE package | IF |
| Code R | Right-Hand Drive | 32H |
| F32/4 | Vehicle interior pre-fuse box | 40L |
| F32/4 | Vehicle interior pre-fuse box | 78L |
| F32/4f3 | Fuse 3 | 38K |
| F32/4f5 | Fuse 5 | 76K |

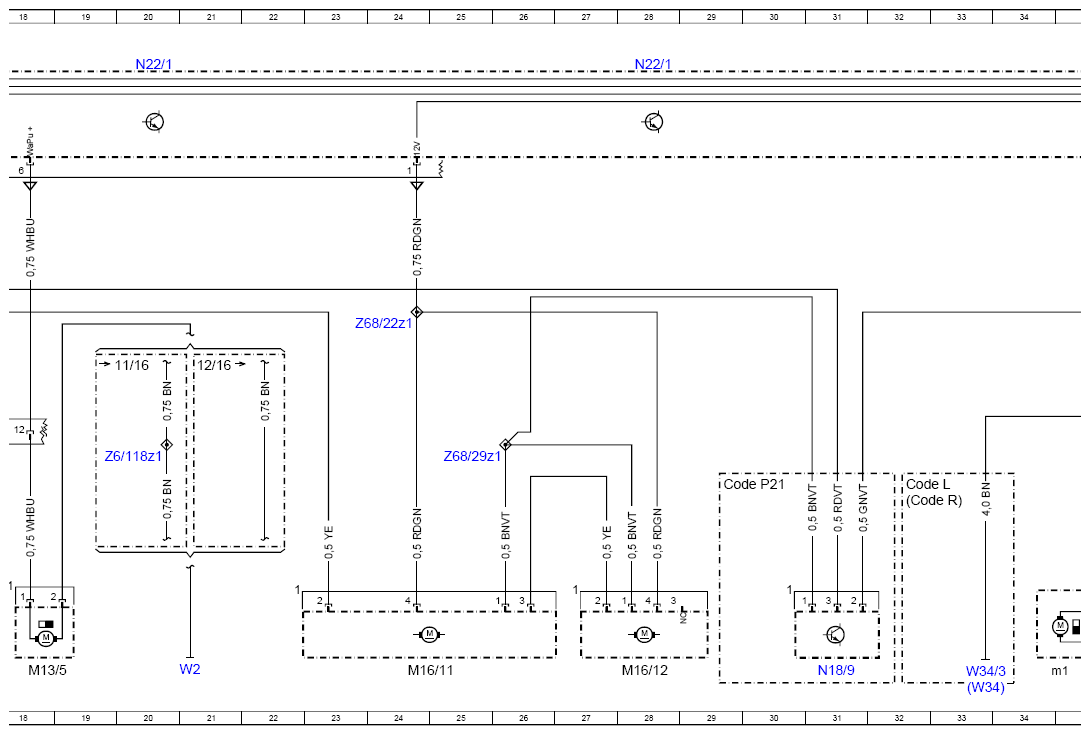

| M13/5 | Coolant circulation pump | 18L |
| Ml 6/11 | Left A-pillar air distribution actuator motor | 24L |
| Ml 6/12 | Right A-pillar air distribution actuator motor | 28L |

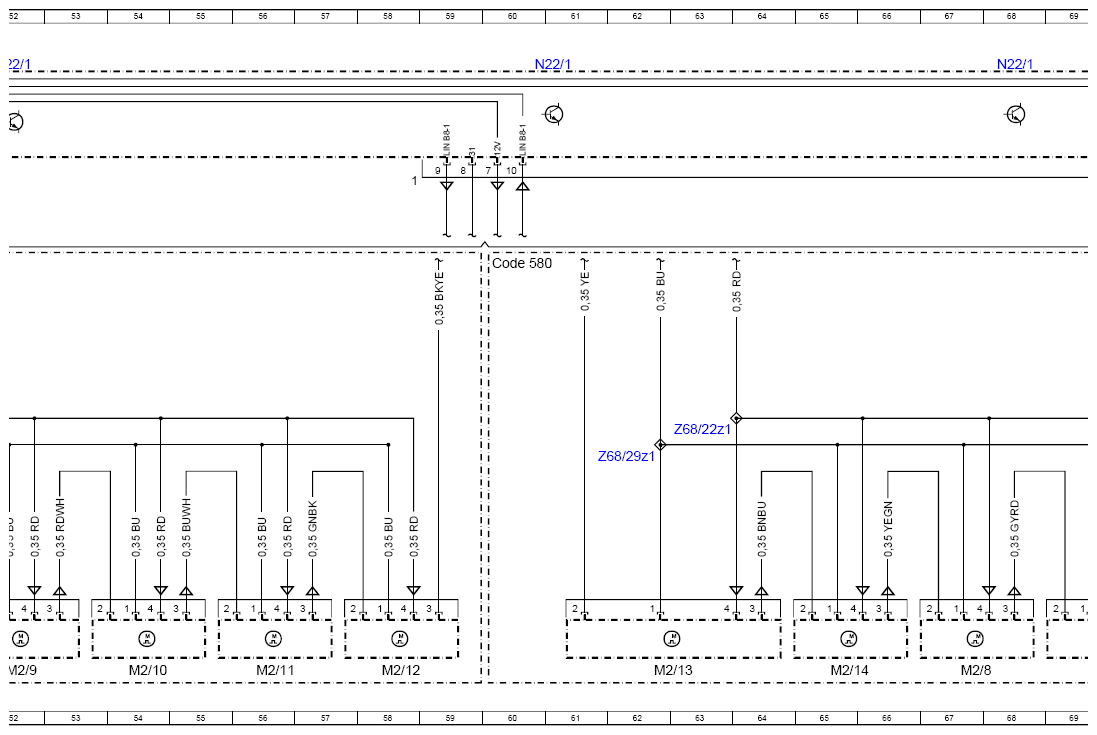

| M2/10 | Rear blend air flap actuator motor | 54L |
| M2/11 | Left footwell vent/center air vent/side air vent and rear vent flap actuator motor | 56L |
| M2/12 | Right footwell vent/center air vent and side air vent flap actuator motor | 58L |

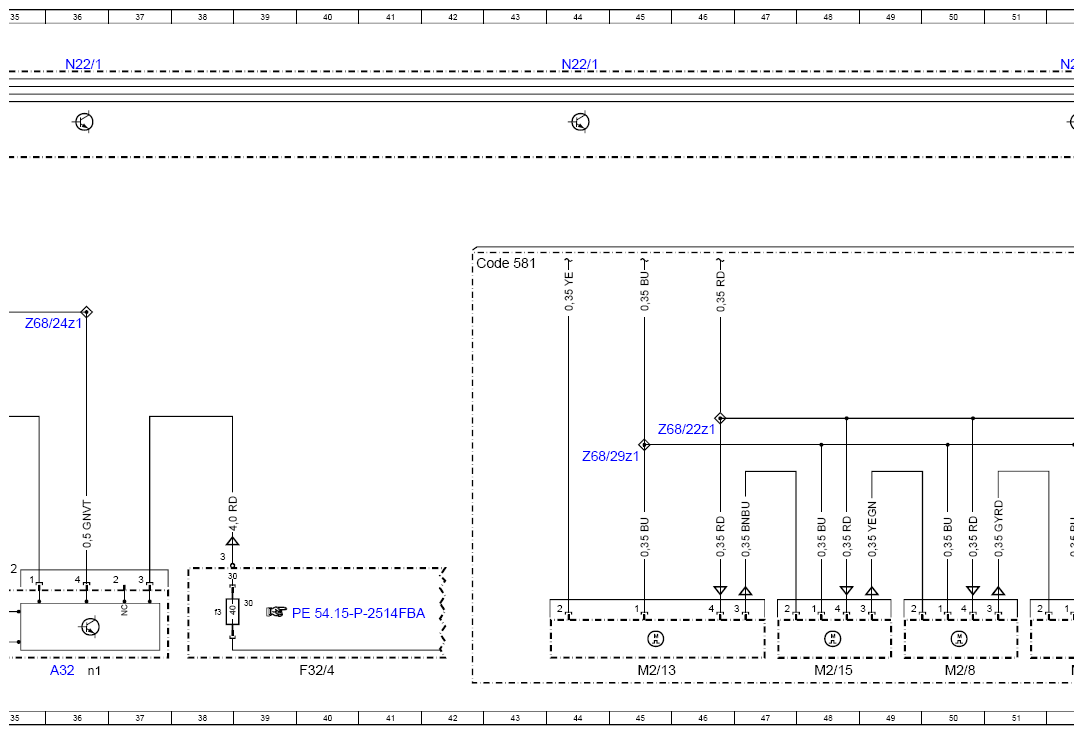

| M2/13 | Fresh air/ram air/air recirculation flap actuator motor | 45L |
| M2/13 | Fresh air/ram air/air recirculation flap actuator motor | 62L |
| M2/14 | Defroster/footwell/center air vent flap actuator motor | 65L |
| M2/15 | Defroster vent flap actuator motor | 48L |
| M2/8 | Left blending air flap actuator | 50L |
| M2/8 | Left blending air flap actuator | 67L |
| M2/9 | Right blending air flap actuator | 52L |
| M2/9 | Right blending air flap actuator | 69L |
| N18/9 | Driver side air vent ionizer | 31L |
| N22/1 | Climate control control unit | 12A |
| N22/1 | Climate control control unit | 20A |
| N22/1 | Climate control control unit | 28A |
| N22/1 | Climate control control unit | 36A |
| N22/1 | Climate control control unit | 44A |
| N22/1 | Climate control control unit | 52A |
| N22/1 | Climate control control unit | 60A |
| N22/1 | Climate control control unit | 68A |
| N22/1 | Climate control control unit | 76A |
| N22/1 | Climate control control unit | 84A |
| N22/1 | Climate control control unit | 91A |
| N29/8 | Booster blower electronic blower regulator | 4L |
| N59 | Perfume atomizer generator | 2L |

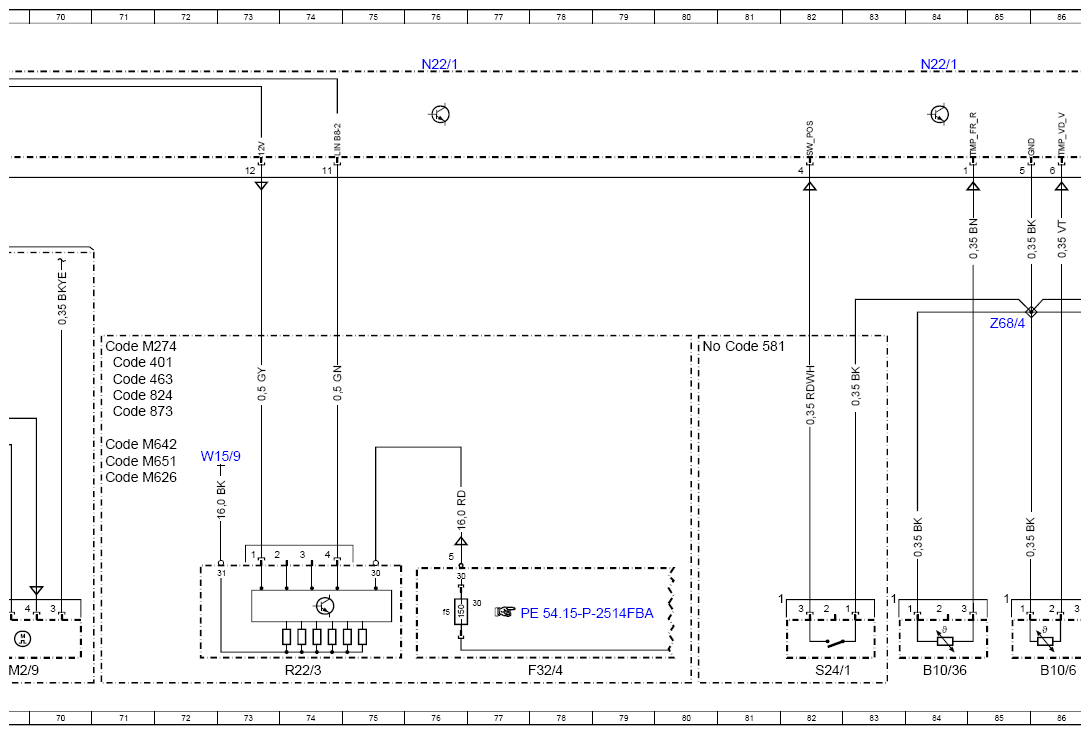

| R22/3 | PTC heater booster | 74L |
| S24/1 | Central air distribution position detection microswitch | 82L |
| W15/9 | Ground point/PTC heater booster | 72H |
| W2 | Right front ground point (at lamp unit) | 21L |
| W34 | Left footwell ground point | 33L |
| W34/3 | Right footwell ground point | 33L |
| X138/7 | Rear center air vent air outlet temperature sensor electrical connector | 90H |
| X138/7 | Rear center air vent air outlet temperature sensor electrical connector | 90F |
| X18/28 | Left cockpit/Engine compartment electrical connector | 10G |
| Z6/118z1 | Right front ground line connector sleeve (in wiring harness) | 20G |
| Z68/22z1 | Connector sleeve, 12V climate control LIN 1 | 46G |
| Z68/22z1 | Connector sleeve, 12V climate control LIN 1 | 24E |
| Z68/22z1 | Connector sleeve, 12V climate control LIN 1 | 63G |
| Z68/23z1 | Connector sleeve, 12V climate control LIN 2 | 15E |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 10E |
| Z68/24z1 | Connector sleeve, data line for climate control LIN 2 | 36E |
| Z68/26z1 | Climate control LIN 1 connector sleeve | 16E |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 25G |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 45G |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 11E |
| Z68/29z1 | Connector sleeve, ground line for climate control LIN 1 and climate control LIN 2 | 62G |
| Z68/4 | Climate control ground connection connector sleeve | 85E |
